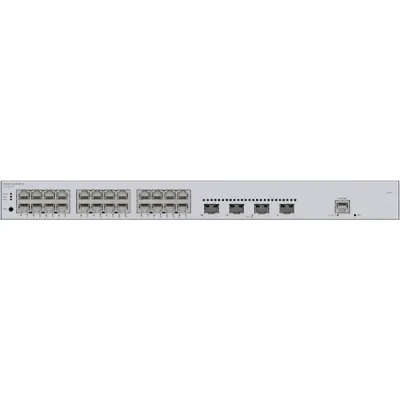

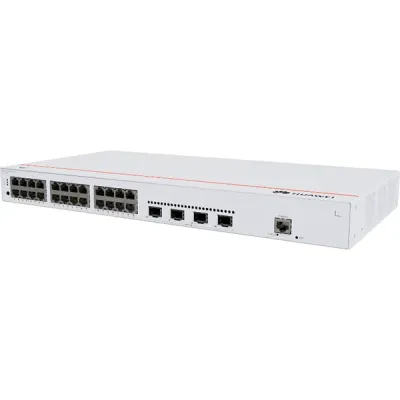

Huawei eKit S310-24T4X Layer 3 Base Managed Gigabit Switch

Huawei eKit S310-24T4X Layer 3 Base Managed Gigabit Switch

Key Features of S310-24T4X:

Model: S310-24T4X
Interface Port Details: 24 × GE RJ45 ports + 4 × 10GE SFP+ uplink ports
PoE Budget: Not Applicable (Non-PoE Model)
Type: Layer 3 Base Managed Switch
Warranty: 03-Year Brand Warranty

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Model: S310-24T4X
attr -Key Feature 2 >	Interface Port Details: 24 × GE RJ45 ports + 4 × 10GE SFP+ uplink ports
attr -Key Feature 3 >	PoE Budget: Not Applicable (Non-PoE Model)
attr -Key Feature 4 >	Type: Layer 3 Base Managed Switch
attr -Key Feature 5 >	Warranty: 03-Year Brand Warranty
Huawei Switch.
Switching Capacity	128 Gbit/s
Packet Forwarding Rate	95 Mpps
GE RJ45	24 (1G/100M/10M)
10G SFP+	4 (10G/1G)
iStack	Up to 4 switches of the same series in a stack
Certification	EMC certification, Safety certification, Manufacturing certification
Chassis Material	Metal
Static Power Consumption [W]	19.00
Dimensions Without Packaging (H X W X D) [Mm(In.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation Type	Rack mounting, Desk mounting, Wall mounting
Weight Without Packaging [Kg(Lb)]	2.32 kg (5.11 lb)
Weight With Packaging [Kg(Lb)]	3.44 kg (7.58 lb)
Typical Power Consumption [W]	27.27
Maximum Power Consumption [W]	35.04
Number Of Fans Modules	1
Long-Term Operating Temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-Term Operating Relative Humidity [Rh]	5% RH to 95% RH, non-condensing
Power Supply Mode	AC built-in
Input Voltage Range [V]	AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Power Supply Surge Protection [Kv]	Differential mode: ±6 kV Common mode: ±6 kV
Types Of Fans	Built-in
Heat Dissipation Mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow Direction	Air intake from left and front, air exhaustion from right
Warranty	03-Year Brand Warranty

Description:

Huawei eKit S310-24T4X Layer 3 Base Managed Gigabit Switch

Huawei eKit S310-24T4X Layer 3 Base Managed Gigabit Switch is designed to provide stable and high-speed network performance for offices, educational institutions, and enterprises. With its 128 Gbit/s switching capacity and 95 Mpps packet forwarding capability, it provides high-speed data handling for high-workload scenarios. The S310-24T4X has 24 GE RJ45 ports (10M/100M/1G) and 4 10G SFP+ uplink ports that offer flexible connections for different network applications. The switch supports iStack, allowing a maximum of 4 switches of the same series to be stacked into a single stack, making it easy to expand and manage the network.

Built from a robust metal chassis, the S310-24T4X ensures long-term use in different environments. It has been subjected to EMC, safety, and manufacturing testing to ensure consistent quality. The switch is rack, desk, and wall mountable and offers the user multiple installation options. Its compact size is 43.6 mm x 442.0 mm x 220.0 mm, maximum depth is 227.0 mm, and weight without packaging is 2.32 kg. With packaging, the dimensions are 90.0 mm x 550.0 mm x 360.0 mm, and the weight is 3.44 kg.

For power consumption, the switch has static power consumption of 19.00 W, typical power consumption of 27.27 W, and an overload of 35.04 W. The switch uses an inbuilt AC power supply of 90–264 V AC at 45–65 Hz. Surge protection differential mode and common mode of ±6 kV ensures safe operation. Cooling is supported by one internal fan using air cooling and intelligent speed adjustment. Airflow design draws air from the front and left and exhausts from the right, with stable performance. Operation can be in temperatures of -5°C to +50°C and 5% to 95% non-condensing humidity, with stable performance over the long term.

Buy Huawei eKit S310-24T4X Layer 3 Base Managed Gigabit Switch in Bangladesh

You can buy your desired Huawei eKit S310-24T4X Layer 3 Base Managed Gigabit Switch at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
