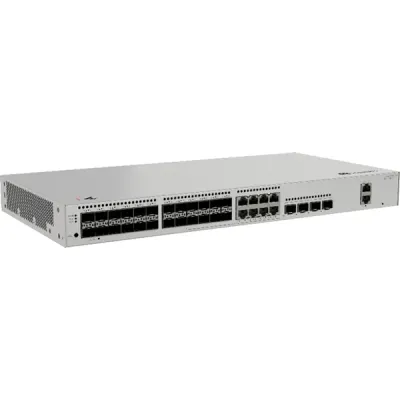

image of Huawei eKit S310-24ST4X Layer 3 Base Managed Gigabit Switch with Spec and Price in BDT

Huawei eKit S310-24ST4X Layer 3 Base Managed Gigabit Switch

Huawei eKit S310-24ST4X Layer 3 Base Managed Gigabit Switch

Key Features of S310-24ST4X:

Model: S310-24ST4X
Interface Port Details: 24 × GE SFP ports (8 dual-purpose 10/100/1000 or SFP) + 4 × 10GE SFP+ uplink ports
PoE Budget: Not Applicable (Non-PoE Model)
Type: Layer 3 Base Managed Switch
Warranty: 03-Year Brand Warranty

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Model: S310-24ST4X
attr -Key Feature 2 >	Interface Port Details: 24 × GE SFP ports (8 dual-purpose 10/100/1000 or SFP) + 4 × 10GE SFP+ uplink ports
attr -Key Feature 3 >	PoE Budget: Not Applicable (Non-PoE Model)
attr -Key Feature 4 >	Type: Layer 3 Base Managed Switch
attr -Key Feature 5 >	Warranty: 03-Year Brand Warranty
Huawei Switch.
Switching Capacity	128 Gbit/s
Packet Forwarding Rate	96 Mpps
GE SFP	16 (1G/100M)
GE Combo (RJ45 + SFP)	8 (RJ45: 1G/100M/10M) (SFP: 1G/100M)
10G SFP+	4 (10G/1G)
iStack	Up to 4 switches of the same series in a stack
Certification	EMC certification, Safety certification, Manufacturing certification
Static Power Consumption [W]	17.57
Dimensions Without Packaging (H X W X D) [Mm(In.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation Type	Rack mounting, Desk mounting, Wall mounting
Weight Without Packaging [Kg(Lb)]	2.9 kg (6.39 lb)
Weight With Packaging [Kg(Lb)]	3.55 kg (7.83 lb)
Typical Power Consumption [W]	32.6
Maximum Power Consumption [W]	41.7
Number Of Fans Modules	2
Long-Term Operating Temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-Term Operating Relative Humidity [Rh]	5% RH to 95% RH, non-condensing
Power Supply Mode	AC built-in
Input Voltage Range [V]	- AC input: 90 V AC to 264 V AC; 47 Hz to 63 Hz - High-voltage DC input: 88 V DC to 300 V DC
Power Supply Surge Protection [Kv]	Differential mode: ±6 kV Common mode: ±6 kV
Types Of Fans	Built-in
Heat Dissipation Mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow Direction	Air intake from left and front, air exhaustion from right
Warranty	03-Year Brand Warranty

Description:

Huawei eKit S310-24ST4X Layer 3 Base Managed Gigabit Switch

Huawei eKit S310-24ST4X Layer 3 Base Managed Gigabit Switch is designed to deliver reliable and high-quality network connections to small and medium businesses, schools, and offices. Supporting 128 Gbit/s switching capacity and 96 Mpps packet forwarding capacity, this switch delivers fast and efficient data transfer even in heavy networks. It has multi-purpose port selections, including 16 GE SFP ports (100M/1G), 8 GE combo ports (RJ45: 100M/1G/10M, SFP: 1G/100M), and 4 high-speed 10G SFP+ ports, and is thus a versatile switch for installation in various network deployments. Support for iStack allows up to 4 identical model switches to work together in a stack, simplifying management and providing increased network capacity as needed.

As far as durability and reliability are concerned, the S310-24ST4X has certification for EMC, safety, and production. It is rack, desk, and wall mountable, which offers deployment flexibility. The switch is tiny in size at 43.6 mm x 442.0 mm x 220.0 mm and weighs 2.9 kg without packaging. When packaged, its dimensions are 90.0 mm x 550.0 mm x 360.0 mm, and it weighs 3.55 kg. Power efficiency is assured with 17.57 W of static power consumption, 32.6 W of average consumption, and 41.7 W of maximum consumption. The built-in AC power source works within the voltage range of 90–264 V AC (47–63 Hz) and has high-voltage DC input support of 88 V DC to 300 V DC. ±6 kV surge protection ensures secure operation under varying environments. Cooling is ensured by 2 onboard integrated fan modules with intelligent speed control and airflow configuration that draws in from the left and front and vents out of the right. Operating temperatures of -5°C to +50°C and humidity levels of 5% to 95% non-condensing ensure stable long-term performance.
