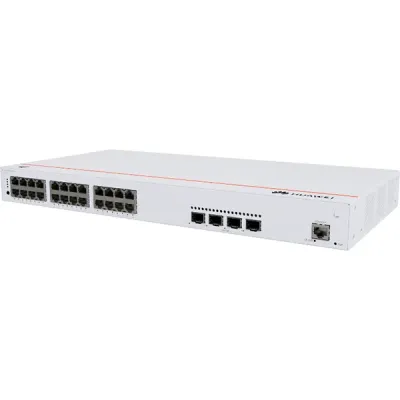

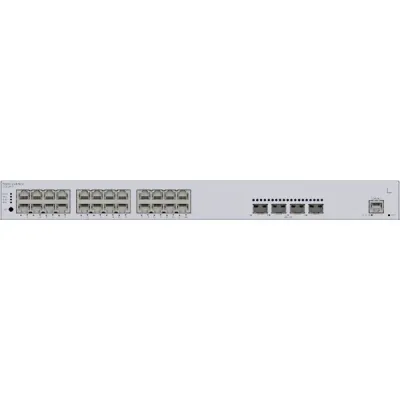

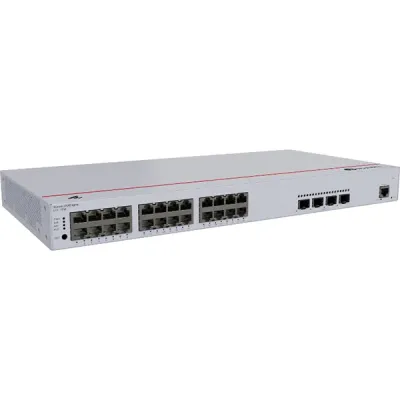

image of Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch with Spec and Price in BDT

Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch

Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch

Key Features of S310-24P4X:

Model: S310-24P4X
Interface Port Details: 24 × 10/100/1000BASE-T PoE+ RJ45 + 4 × 10GE SFP+ uplinks
PoE Budget: 400 W total (PoE+)
Type: Layer 3 Base Managed Switch
Warranty: 3 Year Brand Warranty

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Model: S310-24P4X
attr -Key Feature 2 >	Interface Port Details: 24 × 10/100/1000BASE-T PoE+ RJ45 + 4 × 10GE SFP+ uplinks
attr -Key Feature 3 >	PoE Budget: 400 W total (PoE+)
attr -Key Feature 4 >	Type: Layer 3 Base Managed Switch
attr -Key Feature 5 >	Warranty: 3 Year Brand Warranty
Huawei Switch.
Switching Capacity	128 Gbit/s
Packet Forwarding Rate	96 Mpps
GE RJ45	24 (PoE+) (1G/100M/10M)
10G SFP+	4 (10G/1G)
Maximum PoE Power Consumption [W]	400
PoE	Supported
iStack	Up to 4 switches of the same series in a stack
Certification	EMC certification, Safety certification, Manufacturing certification
Chassis Material	Metal
Static Power Consumption [W]	27.07
Dimensions Without Packaging (H X W X D) [Mm(In.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation Type	Rack mounting, Desk mounting, Wall mounting
Weight Without Packaging [Kg(Lb)]	2.92 kg (6.44 lb)
Weight With Packaging [Kg(Lb)]	3.79 kg (8.36 lb)
Typical Power Consumption [W]	37.12
Maximum Power Consumption [W]	- Without PoE: 44.35 W - Full PoE load: 485.91 W (PoE: 400 W)
Number Of Fans Modules	2
Long-Term Operating Temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-Term Operating Relative Humidity [Rh]	5% RH to 95% RH, non-condensing
Power Supply Mode	AC built-in
Input Voltage Range [V]	- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC
Power Supply Surge Protection [Kv]	Differential mode: ±6 kV Common mode: ±6 kV
Types Of Fans	Built-in
Heat Dissipation Mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow Direction	Air intake from left and front, air exhaustion from right
Warranty	03-Year Brand Warranty

Description:

Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch

Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch is a high-end network switch designed for enterprise, education, and office use. Its switching capacity is 128 Gbit/s, packet forwarding rate is 96 Mpps, offering stable and quick data processing for numerous applications on the network. This 24 GE RJ45 PoE+ ports (10M/100M/1G) and 4 10G SFP+ uplink port switch provides versatile access and backbone network connectivity. It includes a power supply of up to 400 W PoE, which is best suited for the direct powering of IP phones, wireless access points, and cameras via network cables. The device also supports iStack technology, with up to 4 switches of the same series being stacked into a single logical unit for more efficient management and expansion.

Built on a heavy metal chassis, the S310-24P4X is EMC, safety, and manufacturing approved to ensure reliable quality. The switch can be rack-, desktop-, or wall-mounted. Its dimensions are 43.6 mm x 442.0 mm x 220.0 mm (standard) and have a maximum depth of 227.0 mm, and it weighs 2.92 kg without packaging. With packaging, it measures 90.0 mm x 550.0 mm x 360.0 mm and weighs 3.79 kg. In power consumption, it consumes 27.07 W at static load, 37.12 W under normal, and up to 44.35 W without PoE. Maximum PoE load has a power consumption of 485.91 W. The switch operates with a built-in AC power supply, offering input voltage support for AC (90–290 V, 45–65 Hz) and high-voltage DC (190–290 V). Surge protection of ±6 kV ensures safe operation.

Cooling is regulated with two onboard fan modules that offer air cooling assistance and intelligent fan speed control. Airflow is designed to intake from the left and front and exhaust to the right. The switch works stably in a condition of -5°C to +50°C and 5% to 95% non-condensing humidity, ensuring long-term stable operation.

Buy Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch in Bangladesh

You can buy your desired Huawei eKit S310-24P4X Layer 3 Base Managed Gigabit PoE Switch at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
