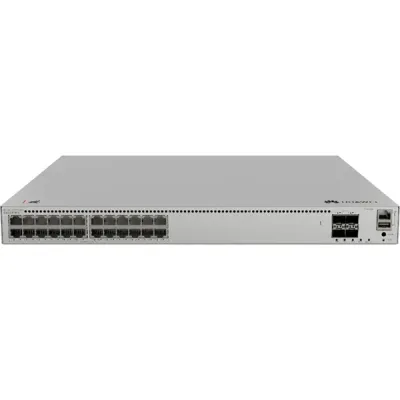

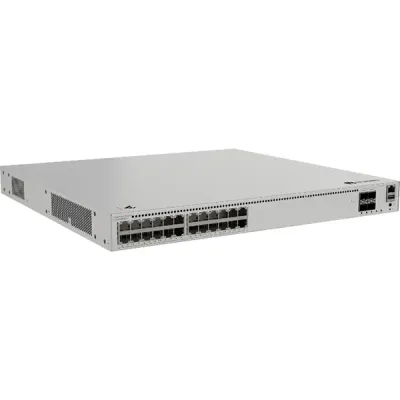

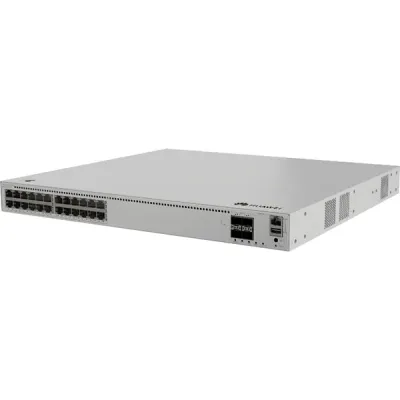

Huawei eKit S310-24PN4X 24-Port 10/100/1000/2.5GBASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch

Huawei eKit S310-24PN4X 24-Port 10/100/1000/2.5GBASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch

Key Features of S310-24PN4X:

Model: S310-24PN4X
Interface Port Details: (2410/100/1000/2.5GBA SE-T ports(400W PoE+), 410GE SFP+ ports, built-in AC power)
PoE Budget: 400W PoE+
Type: Layer 3 Base Managed Switch
Warranty: 3 Year Brand Warranty

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Model: S310-24PN4X
attr -Key Feature 2 >	Interface Port Details: (2410/100/1000/2.5GBA SE-T ports(400W PoE+), 410GE SFP+ ports, built-in AC power)
attr -Key Feature 3 >	PoE Budget: 400W PoE+
attr -Key Feature 4 >	Type: Layer 3 Base Managed Switch
attr -Key Feature 5 >	Warranty: 3 Year Brand Warranty
Huawei Switch.
Switching Capacity	200 Gbit/s
2.5GE RJ45	24 (PoE+) (2.5G/1G/100M/10M)
Packet Forwarding Rate	144 Mpps
GE Combo (RJ45 + SFP)
10G SFP+	4 (10G/1G)
Maximum PoE Power Consumption [W]	400
PoE	Supported
iStack	Up to 4 switches of the same series in a stack
Certification	EMC certification, Safety certification, Manufacturing certification
Chassis Material	Metal
Static Power Consumption [W]	37.1
Dimensions Without Packaging (H X W X D) [Mm(In.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.56 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Installation Type	Rack mounting, Desk mounting
Weight Without Packaging [Kg(Lb)]	4.71 kg (10.38 lb)
Weight With Packaging [Kg(Lb)]	6.89 kg (15.19 lb)
Typical Power Consumption [W]	54.8
Maximum Power Consumption [W]	- Without PoE: 77.70 W - Full PoE load: 517.30 W (PoE: 400 W)
Number Of Fans Modules	2
Long-Term Operating Temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Long-Term Operating Relative Humidity [Rh]	5% RH to 95% RH, non-condensing
Power Supply Mode	AC built-in
Input Voltage Range [V]	- AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz - High-voltage DC input: 190 V DC to 290 V DC
Power Supply Surge Protection [Kv]	Differential mode: ±6 kV Common mode: ±6 kV
Types Of Fans	Built-in
Heat Dissipation Mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow Direction	Air intake from left and front, air exhaustion from right
Warranty	03-Year Brand Warranty

Description:

Huawei eKit S310-24PN4X 24-Port 10/100/1000/2.5GBASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch

Huawei eKit S310-24PN4X 24-port 10/100/1000/2.5GBASE-T & 4-port 10GE SFP+ Managed PoE+ Switch is especially designed for high-speed networking in the business and enterprise space. It features 200 Gbit/s switching capacity and 144 Mpps packet forwarding rate, and ensures efficient and reliable data processing for heavy applications. This switch offers 24 RJ45 PoE+ ports with 2.5G/1G/100M/10M speed and 4 SFP+ uplink ports with 10G/1G connections, perfectly suitable for bandwidth-intensive devices and applications. It supports Power over Ethernet with a maximum PoE power budget of 400 W, which can directly power wireless access points, IP cameras, and VoIP phones. iStack technology supports stacking a maximum of 4 switches of the same series for simple management and capacity extension.

Chassis built with sturdy metal, the S310-24PN4X has EMC, manufacturing, and safety certification. Rack and desk are deployable with versatile deployment options. The dimensions are 43.6 mm x 442.0 mm x 420.0 mm (standard) and a maximum depth of 446.0 mm. Its unpacked weight is 4.71 kg and 6.89 kg when packed. In terms of power, static power is 37.1 W, normal power is 54.8 W, and maximum power is 77.70 W without PoE, whereas at the full PoE load, it is 517.30 W. It supports AC input (90–290 V, 45–65 Hz) and high-voltage DC input (190–290 V) with ±6 kV surge protection on both differential and common modes. The switch is equipped with two internal fan modules for intelligent air cooling, with front and left air intake and right exhaust. It operates reliably in the temperature range from –5°C to +45°C and humidity from 5% RH to 95% RH, ensuring long-term stable operation in diverse environments.

Buy Huawei eKit S310-24PN4X 24-Port 10/100/1000/2.5GBASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch in Bangladesh

You can buy your desired Huawei eKit S310-24PN4X 24-Port 10/100/1000/2.5GBASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
