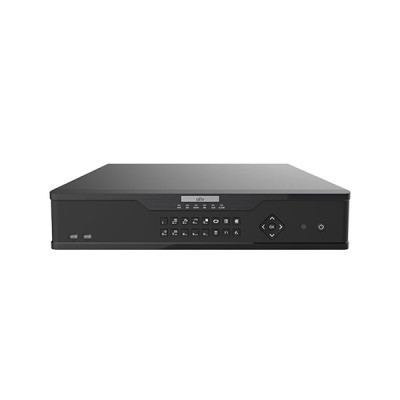

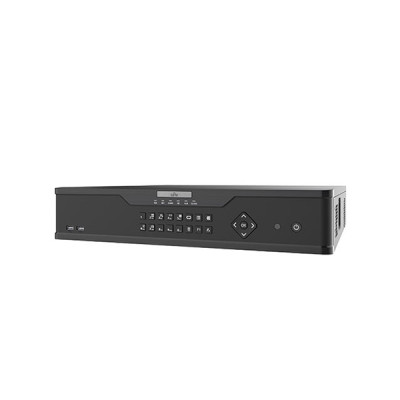

image of Uniview NVR308-64X 64 Channel 8 SATA NVR with Spec and Price in BDT

Uniview NVR308-64X 64 Channel 8 SATA NVR

Key Features of NVR308-64X:

Channel: 64-Channel
Storage: Up to 12TB for each HDD
Output Port: HDMI & VGA
Input Port: 2x RJ45, 3x USB, 1x RS232, 1x RS485
Outgoing Bandwidth: 384Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 64-Channel
attr -Key Feature 2 >	Storage: Up to 12TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 2x RJ45, 3x USB, 1x RS232, 1x RS485
attr -Key Feature 5 >	Outgoing Bandwidth: 384Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	NVR308-64X
Type	64 Channel 8 SATA NVR
Hard Disk
SATA	8 SATA interfaces
Capacity	up to 12TB for each HDD
eSATA	1 eSATA interface
Disk Group	Support
Disk Array
Array Type	RAID 0, 1, 5, 6, 10
Video/Audio Input
IP Video Input	64-ch
Audio Input	1-ch, RCA
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz (HDMI audio output is not supported)
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Live view display	VGA: 1/4/6/8/9/16/25/36 HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot	64-ch snapshot, up to 4K resolution
Decoding
Capability	2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Decoding format	Ultra 265, H.265, H.264
Liveview/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Incoming Bandwidth	384Mbps
Outgoing Bandwidth	384Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Extras	Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic Monitoring by Camera Total 16-ch
External Interface
Network Interface	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
RS232	1
RS485	1
Alarm In	16-ch
Alarm Out	4-ch
Power
Power	100~240 VAC Power Consumption: ≤ 25 W (without HDD)
Operating Environment
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions	442mm ×426mm× 89mm (17.4" × 16.8"× 3.5")
Weight	≤ 5.7Kg (12.57lb)
Additional
Certification	Certification: CE, FCC, UL, RoHS, WEEE CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC: Part15 Subpart B, ANSI C63.4
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview NVR308-64X 64 Channel 8 SATA NVR

Uniview NVR308-64X is a robust and highly capable Network Video Recorder (NVR) designed for comprehensive surveillance needs. With a remarkable capacity supporting up to 12TB for each of its 8 SATA interfaces, this NVR ensures extensive storage for video data. Featuring 64-channel IP video input, the NVR supports a diverse range of cameras, making it suitable for large-scale security setups. The video output options include VGA and HDMI, with 4K resolution at 30Hz, providing clear and detailed monitoring.

Recording resolutions range from 12MP for ultra-high clarity to standard resolutions like 1080p and below. The substantial incoming and outgoing bandwidth of 384Mbps each ensures smooth data flow for real-time monitoring and playback. With support for disk groups and an eSATA interface, the NVR allows flexible storage configurations, enhancing efficiency and convenience. The inclusion of 128 remote user support facilitates secure access to the system from different locations.

The NVR308-64X is equipped with a range of alarm features, including motion detection, tampering alerts, and human body detection, enhancing its ability to capture and notify about critical events. The device also keeps an eye on network integrity, disk status, and unauthorized access, ensuring the reliability and security of the surveillance system. Connectivity options are ample, with 2 RJ45 Ethernet interfaces and USB ports for convenient data transfer and device connections. The front panel includes 2 USB 2.0 ports, while the rear panel features a USB 3.0 port for high-speed data exchange. Backed by a 1-year brand warranty, the Uniview NVR308-64X stands out as a dependable solution for businesses and organizations seeking a powerful and secure NVR for their extensive surveillance requirements.
