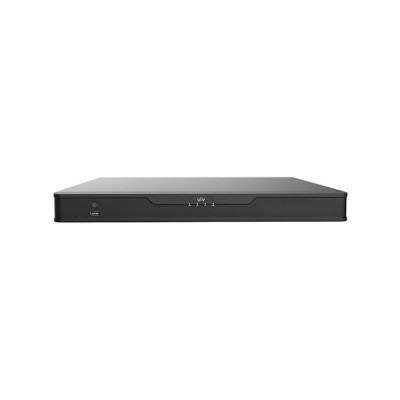

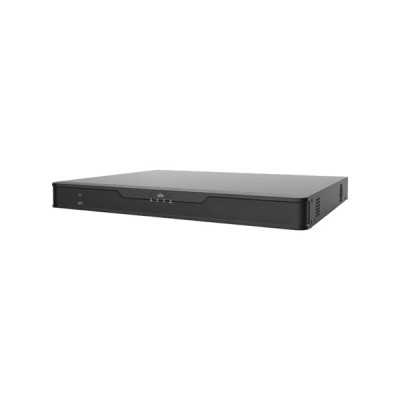

Uniview NVR304-32S 32 Channel 4 SATA NVR

Key Features of NVR304-32S:

Channel: 32-Channel
Storage: Up to 8TB for each disk
Output Port: HDMI & VGA
Input Port: 2x RJ45, 3x USB
Outgoing Bandwidth: 64Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 32-Channel
attr -Key Feature 2 >	Storage: Up to 8TB for each disk
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 2x RJ45, 3x USB
attr -Key Feature 5 >	Outgoing Bandwidth: 64Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	NVR304-32S
Type	32 Channel 4 SATA NVR
Hard Disk
SATA	4 SATA interfaces
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Video/Audio Input
IP Video Input	32-ch
Two-way Audio Input	1-ch, RCA
Video/Audio Output
VGA Output	1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
HDMI Output	4K (3840x2160) @30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution	8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Live view display	1/4/6/8/9/16/25/36
Synchronous Playback	16ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Capability	2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	64Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA Search	Behavior Search
People Counting	People Flow Counting, Crowd Density Monitoring
Extras	Smart Intrusion Prevention (SIP), UMD by Camera Total 8-ch
External Interface
Network Interface	2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface	Rear panel: 1 x USB2.0, 1 x USB3.0 Front panel: 1 x USB2.0
RS232	N/A
RS485	N/A
Alarm In	N/A
Alarm Out	N/A
Power
Power	12V DC Power Consumption: ≤ 15W (without HDD)
Operating Environment
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions	440mm × 344mm ×50mm (17.3" × 13.5" ×2.0")
Weight	≤ 3.15 Kg (6.94 lb)
Additional
Certification	Certification: CE, FCC, UL, RoHS, WEEE CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC: Part15 Subpart B, ANSI C63.4
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview NVR304-32S 32 Channel 4 SATA NVR

Uniview NVR304-32S32-channel network video recorder designed for comprehensive surveillance applications. With four SATA interfaces, each supporting up to 8TB storage capacity, this NVR offers ample space for recording high-quality footage. The 32-channel IP video input ensures extensive coverage, making it suitable for large-scale security setups. Equipped with VGA and HDMI outputs, the NVR304-32S provides clear visual outputs with resolutions like 1920x1080p@60 and 4K (3840x2160)@30. The recording resolution spans from 8MP to CIF, accommodating diverse recording needs. Its substantial incoming bandwidth of 160Mbps and outgoing bandwidth of 64Mbps ensure efficient and smooth data transmission.

This NVR incorporates general alarms for motion detection, tampering, human body detection, video loss, alarm input, and audio detection, enhancing security monitoring capabilities. The alert alarm system notifies users about events such as IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and abnormal recording/snapshot. With remote access capabilities for up to 128 users, the NVR304-32S provides flexibility in monitoring. It features user-friendly interfaces with multiple connectivity options, ensuring convenience in setup and operation. Backed by a 1-year brand warranty, the NVR304-32S offers a reliable solution for advanced video surveillance needs.
