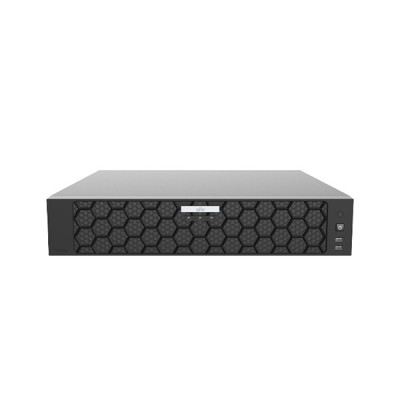

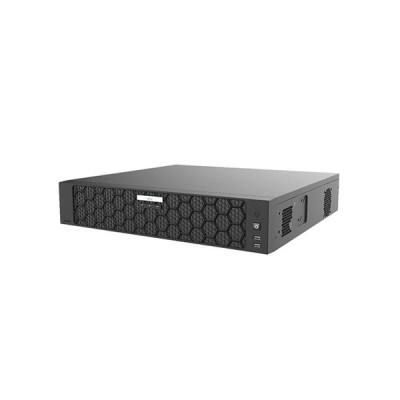

Uniview NVR508-64B 64 Channel 8 SATA NVR

Uniview NVR508-64B 64 Channel 8 SATA NVR

Key Features of NVR508-64B:

Channel: 64-Channel
Storage: Up to 12TB for each HDD
Output Port: HDMI & VGA
Input Port: 2x RJ45, 3x USB, 1x RS485
Outgoing Bandwidth: 160Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 64-Channel
attr -Key Feature 2 >	Storage: Up to 12TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 2x RJ45, 3x USB, 1x RS485
attr -Key Feature 5 >	Outgoing Bandwidth: 160Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	NVR508-64B
Type	64 Channel 8 SATA NVR
Hard Disk
SATA	8 SATA interfaces
Capacity	Up to 12TB for each disk
Disk Group	Support
Video/Audio Input
IP Video Input	64-ch
Audio Input	1-ch, RCA
Video/Audio Output
VGA Output	1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
HDMI Output	4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Live view display	Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 HDMI: 1/4/6/8/9/16/25/32
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Capability	Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 28 x 960P@25, 30 x 720P@30, 64 x D1
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Incoming Bandwidth	320Mbps
Outgoing Bandwidth	160Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Extras	Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Temperature Detection, Video Metadata, Traffic Monitoring by Camera Total 8-ch
External Interface
Network Interface	2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface	Front: 2 x USB2.0, Rear panel: 1 x USB3.0
RS232	N/A
RS485	1
Alarm In	16-ch
Alarm Out	4-ch
Power
Power	100~240V AC Power Consumption: ≤ 32W (without HDD)
Operating Environment
Working Environment	-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions	442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Weight	≤ 4Kg (8.80lb)
Additional
Certification	Certification: CE, FCC, UL, RoHS, WEEE CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC: Part15 Subpart B
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview NVR508-64B 64 Channel 8 SATA NVR

Uniview NVR508-64B is a high-performance Network Video Recorder (NVR) designed to meet the demands of extensive surveillance systems. Boasting 64-channel IP video input capability, this NVR provides a robust solution for large-scale security setups. Equipped with 8 SATA interfaces, each supporting up to 12TB, the NVR508-64B ensures ample storage capacity for video data. The recording resolution spans from 16MP for ultra-high clarity to standard resolutions like 1080p and below, catering to diverse surveillance needs. The NVR supports VGA and HDMI outputs, offering flexibility in display options with resolutions up to 4K at 30Hz. The incoming bandwidth of 320Mbps and outgoing bandwidth of 160Mbps facilitate seamless real-time monitoring and efficient data transfer.

With features like defocus detection, scene change detection, and intelligent video analytics such as objects left behind and object removal, the NVR508-64B goes beyond standard surveillance, enhancing situational awareness. The NVR also includes traditional alarm features like motion detection, tampering alerts, and human body detection, ensuring a comprehensive security approach. The support for 128 remote users allows secure access from different locations, and the NVR keeps a vigilant eye on the system's integrity with alerts for IP conflicts, network disconnections, and disk status. The device is backed by a 1-year brand warranty, assuring reliability and performance for extended surveillance needs.
