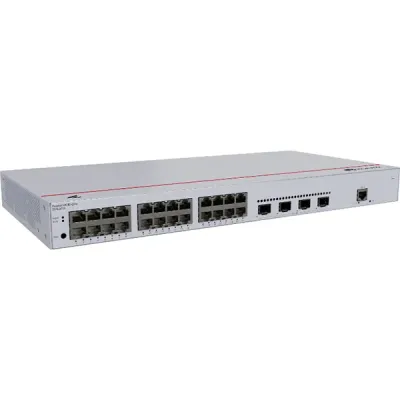

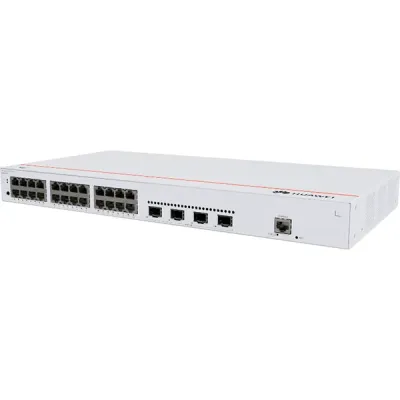

Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch
Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch
Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch
Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch

Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch

Key Features of S220-24T4X:
Model: S220-24T4X
Details: S220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
PoE Budget: Not Applicable (Non-PoE Model)
Type: Layer 3 Base Managed Switch
Warranty: 3 Year Brand Warranty
Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Model: S220-24T4X
attr -Key Feature 2 > Details: S220-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
attr -Key Feature 3 > PoE Budget: Not Applicable (Non-PoE Model)
attr -Key Feature 4 > Type: Layer 3 Base Managed Switch
attr -Key Feature 5 > Warranty: 3 Year Brand Warranty
Huawei Switch.
Switching Capacity 128 Gbit/s
Packet Forwarding Rate 95 Mpps
GE RJ45 24 (1G/100M/10M)
10G SFP+ 4 (10G/1G)
Certification EMC certification, Safety certification, Manufacturing certification
Chassis Material Metal
Static Power Consumption [W] 19.00
Dimensions Without Packaging (H X W X D) [Mm(In.)] Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel):
43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation Type Rack mounting, Desk mounting, Wall mounting
Weight Without Packaging [Kg(Lb)] 2.32 kg (5.11 lb)
Weight With Packaging [Kg(Lb)] 3.44 kg (7.58 lb)
Typical Power Consumption [W] 27.27
Maximum Power Consumption [W] 35.04
Number Of Fans Modules 1
Long-Term Operating Temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-Term Operating Relative Humidity [Rh] 5% RH to 95% RH, non-condensing
Power Supply Mode AC built-in
Input Voltage Range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Power Supply Surge Protection [Kv] Differential mode: ±6 kV
Common mode: ±6 kV
Types Of Fans Built-in
Heat Dissipation Mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow Direction Air intake from left and front, air exhaustion from right
Warranty 03-Year Brand Warranty
Description:

Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch

Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch offers reliable gigabit connection with high-speed uplink support, rendering it a perfect switch for business networks that need stable and smooth network performance. With a switching capacity of 128 Gbit/s and a packet forwarding rate of 95 Mpps, it effortlessly handles enormous data traffic and ensures seamless network operation. It is equipped with 24 GE RJ45 10/100/1000 Mbps ports and 4 high-speed 10GE SFP+ uplink ports for optional fiber expansion. It complies with EMC, safety, and manufacturing requirements to ensure stable operation in enterprise networks.

Built with a sturdy metal chassis, the Huawei eKit S220-24T4X features rack, desk, and wall mounting capability, offering flexibility to meet diverse installation needs. It is 43.6 mm x 442.0 mm x 220.0 mm (basic) and up to 227.0 mm deep, and weighs 2.32 kg unpackaged and 3.44 kg packaged, compact and easy to install. One of the features is power efficiency, 19.00 W static power, 27.27 W typical, and up to 35.04 W maximum. The internal AC power supply delivers 90 V to 264 V AC input at 45 Hz to 65 Hz frequency, with surge protection of ±6 kV in differential and common modes, for power safety.

The switch has a single internal fan with intelligent speed control for cooling. Airflow occurs through intake on the left and front, and exhaust on the right, to ensure efficient heat removal. It can operate in a temperature range of –5°C to +50°C and can resist humidity levels of 5% RH to 95% RH, non-condensing. The Huawei eKit S220-24T4X is a high-performance, efficient managed non-PoE switch with gigabit access and 10GE high-speed uplink, as well as convenient installation.

Buy Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch in Bangladesh

You can buy your desired Huawei eKit S220-24T4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed Non-PoE Switch at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
