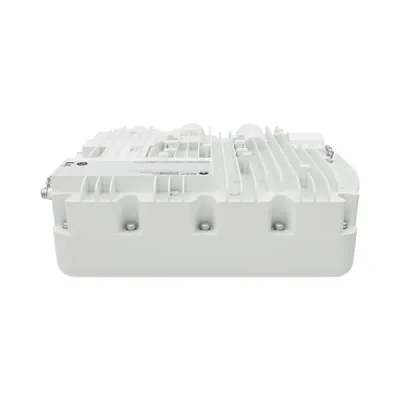

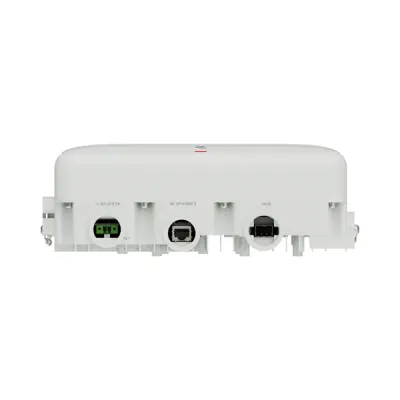

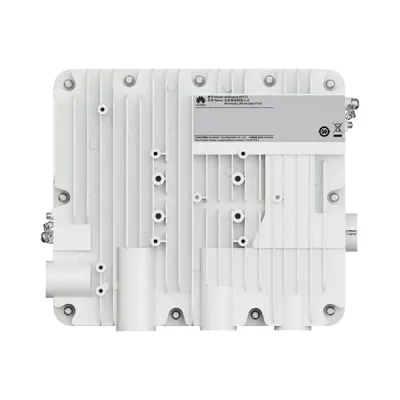

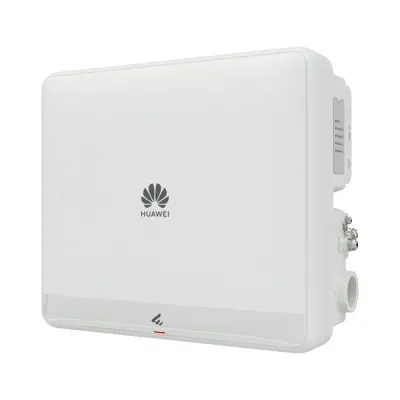

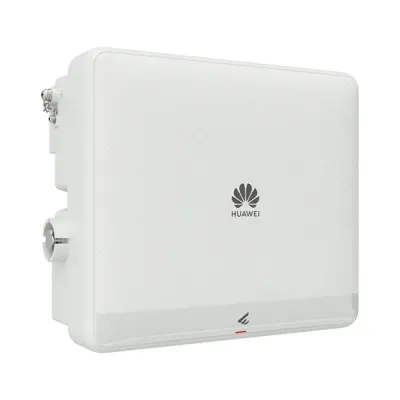

image of Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point with Spec and Price in BDT

Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point

Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point

Key Features of AP772:

Model: AP772
Details: Outdoor AP, Wi-Fi 7, 6.45 Gbps device rate, Dual-radio, 30 dBm transmit power, Smart antenna, Omnidirectional antenna
Coverage range: 140 m optimal
Recommended users: 130 access users recommended (Max. 1024 access users)
Warranty: 3 Year Brand Warranty

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Model: AP772
attr -Key Feature 2 >	Details: Outdoor AP, Wi-Fi 7, 6.45 Gbps device rate, Dual-radio, 30 dBm transmit power, Smart antenna, Omnidirectional antenna
attr -Key Feature 3 >	Coverage range: 140 m optimal
attr -Key Feature 4 >	Recommended users: 130 access users recommended (Max. 1024 access users)
attr -Key Feature 5 >	Warranty: 3 Year Brand Warranty
Huawei Access Point
Wi-Fi Standard	2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be
Installation Type	Wall, Pole
Optimal Signal Distance (M)	140
Max Number Of Access Users	1024
Recommended Number Of Access Users	130
Device Rate	6.45 Gbps
Maximum Number Of Physical Ports On The Entire Device	2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing 10GE optical (SFP+), GE/2.5GE/10GE auto-sensing
Radio Number	2
Maximum Channel Bandwidth [Mhz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
Maximum Transmit Power	2.4 GHz: 25 dBm/chain 28 dBm (combined power) 5 GHz: 24 dBm/chain 30 dBm (combined power)
Mimo Spatial Streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 4x4
Maximum Power Consumption [W]	20.4 (excluding USB)
Input Voltage Range [V]	DC: 43.2 V to 57.6 V PoE: 802.3bt/at/af
Dimensions Without Packaging (H X W X D) [Mm(In.)]	92 mm x 250 mm x 220 mm (3.62 in. x 9.84 in. x 8.66 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)]	185 mm x 555 mm x 370 mm (7.28 in. x 21.85 in. x 14.57 in.)
Weight Without Packaging [Kg(Lb)]	2.89 kg (6.37 lb)
Weight With Packaging [Kg(Lb)]	5.42 kg (11.95 lb)
Long-Term Operating Temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.] The maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-Term Operating Relative Humidity [Rh]	Operating humidity: 0% RH to 100% RH Storage humidity: 5% RH to 95% RH (non-condensing)
Radio Interface	Built-in omnidirectional antennas
Antenna Gain	2.4 GHz: 5 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 5 dBi/chain (peak value) 3 dBi (combined gain)
Operating Frequency Band	2.4GHz,5GHz
Ingress Protection Level (Dustproof/Waterproof)	IP68
Warranty	03-Year Brand Warranty

Description:

Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point

Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point is a high-density outdoor wireless solution for large areas, campuses, and enterprise networks. It supports the latest Wi-Fi standard of Wi-Fi 7 with dual-band at 2.4 GHz (802.11b/g/n/ax/be) and 5 GHz (802.11a/n/ac/ac Wave 2/ax/be) and has a total device rate of up to 6.45 Gbps. It features an optimal signal distance of 140 meters and provides robust and stable outdoor wireless connectivity.

The access point supports a maximum of 1024 access users, although 130 is recommended for the best performance. The access point is dual-radio, offering 2x2 MIMO at 2.4 GHz and 4x4 MIMO at 5 GHz with channel bandwidths of 40 MHz and 160 MHz. The transmit power is a maximum of 28 dBm for 2.4 GHz and 30 dBm for 5 GHz for wide coverage. In-built omnidirectional smart antennas deliver uniform signal quality, with antenna gains of 5 dBi per chain and 3 dBi for combined gain. The AP772 features a single 2.5GE RJ45 port and a single 10GE optical SFP+ port, both auto-sensing, for a flexible wired uplink. Power can be supplied via DC input (43.2 V to 57.6 V) or by PoE (802.3bt/at/af). The power consumption maximum is 20.4 W, excluding USB devices.

Ideal for outdoor use, it is IP68 dustproof and waterproof rated, making it resistant to harsh weather. It has dimensions of 92 × 250 × 220 mm and weighs 2.89 kg excluding packaging. Operating temperature is –40°C to +70°C with humidity support of 0% to 100%, making it a reliable device in extreme conditions. With next-generation Wi-Fi 7 technology, smart antennas, and ruggedized protection, the Huawei AP772 supplies high-performance outdoor wireless coverage for difficult network deployments.

Buy Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point in Bangladesh

You can buy your desired Huawei AP772 Wi-Fi 7 Outdoor Dual-Radio Smart Antenna Managed PoE Access Point at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
