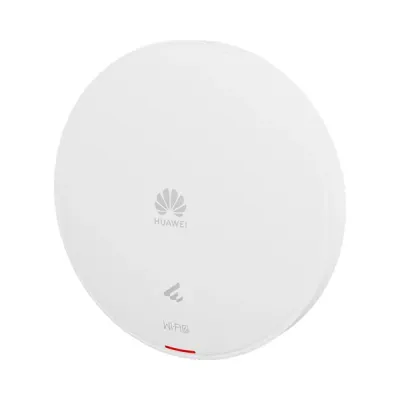

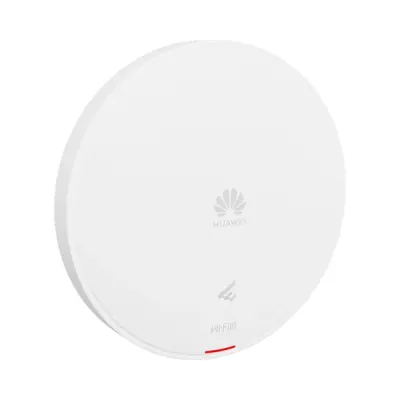

Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point

Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point

Key Features of AP661:
Model: AP661
Details: Settled AP, Wi-Fi 6, 6.575 Gbps device rate, Tri-radio, 26 dBm transmit power, Smart antenna
Coverage Range: 30 m optimal
Recommended Users: 300 access users recommended (Max. 1536 access users)
Warranty: 3 Year Brand Warranty
Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Model: AP661
attr -Key Feature 2 > Details: Settled AP, Wi-Fi 6, 6.575 Gbps device rate, Tri-radio, 26 dBm transmit power, Smart antenna
attr -Key Feature 3 > Coverage Range: 30 m optimal
attr -Key Feature 4 > Recommended Users: 300 access users recommended (Max. 1536 access users)
attr -Key Feature 5 > Warranty: 3 Year Brand Warranty
Huawei Access Point
Wi-Fi Standard 2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type Wall, Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm)
Optimal Signal Distance (M) 30
Max Number Of Access Users 1536
Recommended Number Of Access Users 300
Device Rate 6.575 Gbps
Maximum Number Of Physical Ports On The Entire Device 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio Number 3
Maximum Channel Bandwidth [Mhz] Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz-H): 80 MHz
Radio 2 (5 GHz-L): 160 MHz
Maximum Transmit Power 2.4 GHz: 22 dBm/chain 25 dBm (combined power)
5 GHz (2x2): 20 dBm/chain 23 dBm (combined power)
5 GHz (4x4): 20 dBm/chain 26 dBm (combined power)
BLE: < 10 dBm
Mimo Spatial Streams Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz)
Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz)
Maximum Power Consumption [W] 21.2 (excluding USB), 802.3at/af power supply
Input Voltage Range [V] DC: 12 V ± 10% PoE: 802.3at/af
Dimensions Without Packaging (H X W X D) [Mm(In.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight Without Packaging [Kg(Lb)] 1.08 kg (2.38 lb)
Long-Term Operating Temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.]
The maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-Term Operating Relative Humidity [Rh] 5% RH to 95% RH, non-condensing
Radio Interface Built-in smart antennas
Antenna Gain 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 4 dBi
Operating Frequency Band 2.4GHz,5GHz
Warranty 03-Year Brand Warranty
Description:

Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point

Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point is a high-speed wireless enterprise-level access point that is applicable to enterprise, campus, and indoor large coverage. It employs Wi-Fi 6 standards with dual-band coverage of 2.4 GHz (802.11b/g/n/ax) and 5 GHz (802.11a/n/ac/ac Wave 2/ax) with a combined device rate of up to 6.575 Gbps. It has an optimal signal distance of 30 meters, offering fast and stable wireless access to large areas.

This access point supports 1536 users with a recommended capacity of 300 users to operate at an optimum rate. It has three radios: 2x2 MIMO at 2.4 GHz, 2x2 MIMO at 5 GHz high band, and 4x4 MIMO at 5 GHz low band with channel bandwidths of 40 MHz, 80 MHz, and 160 MHz, respectively. Smart antenna architecture promotes signal stability and coverage with 4 dBi per chain in 2.4 GHz and 5 dBi per chain in 5 GHz.

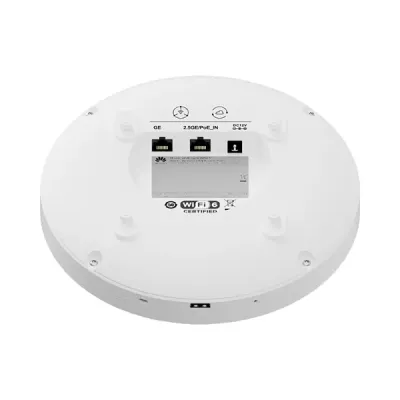

The AP661 has two physical ports made up of a 2.5GE auto-sensing RJ45 and a GE auto-sensing RJ45. Power sources are either 802.3at/af PoE or a 12 V DC. The maximum power consumption is 21.2 W. The product has flexibility in installation types, including wall mount, ceiling mount (solid wall, channel rail, spring tee, gypsum board, flat-edge T-rail, or beam), and junction boxes of different sizes. Its slim profile is 220 mm in diameter and 50 mm in depth, having a weight of 1.08 kg. The AP can handle temperatures between –10°C and +50°C and humidity from 5% to 95% non-condensing, offering reliable performance in various conditions. Equipped with smart antenna technology and Wi-Fi 6 features, the Huawei AP661 offers stable and high-density wireless coverage for heavy networks.

Buy Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point in Bangladesh

You can buy your desired Huawei AP661 Wi-Fi 6 Tri-Radio Smart Antenna Managed PoE Settled/Ceiling Access Point at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
