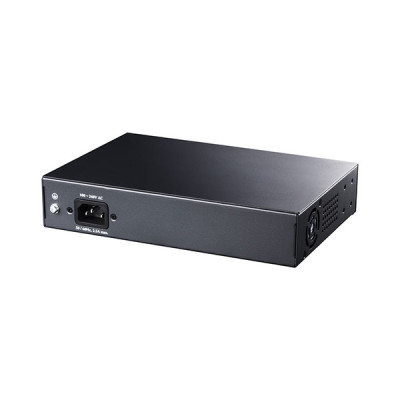

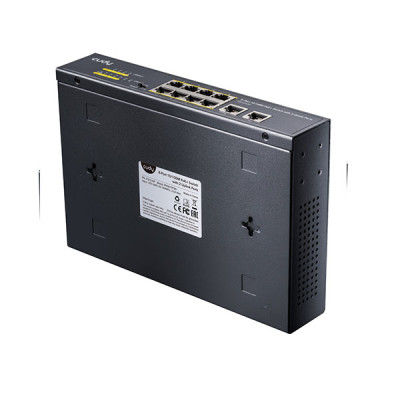

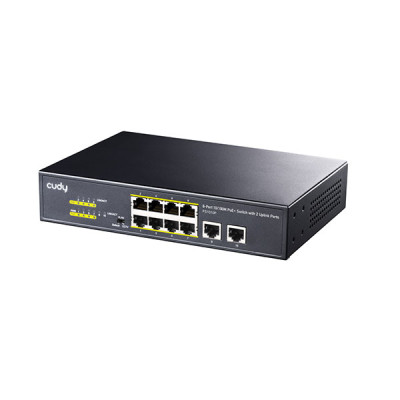

Cudy FS1010P 8-Port 10/100M PoE+ Switch

Key Features of Cudy FS1010P :

Support IEEE802.3at and IEEE802.3af Standard
120W PoE power output totally，up to 32W for one PoE port
Support IEEE802.3x full duplex and half duplex ﬂow control
Support VLAN and CCTV Function
Panel lights to monitor working state and help fault analysis

Based on 0 reviews. - Write a review

৳3,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Support IEEE802.3at and IEEE802.3af Standard
attr -Key Feature 2 >	120W PoE power output totally，up to 32W for one PoE port
attr -Key Feature 3 >	Support IEEE802.3x full duplex and half duplex ﬂow control
attr -Key Feature 4 >	Support VLAN and CCTV Function
attr -Key Feature 5 >	Panel lights to monitor working state and help fault analysis
Cudy Switch
Model	FS1010P
Interface	10/100 Mbps RJ45 Ports: 10 10/100 Mbps RJ45 PoE Ports: #1~#8 Max Power on a Single PoE Port: 30W PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards. Extend Mode Ports: #1~#8 VLAN Mode Ports : #1~#8 LED: - Power - Link/ACT of Each Ethernet Port - DIP Mode (SW) Power Input: AC Inlet Physical Buttons: VLAN/Default/Extend DIP Switch
Power	Power Methods: AC AC: 100-240V~, 50/60Hz Power Supply: 120W Max Power Excluding PoE: 1W
Performance	Copper Speed and Distance: - Cat. 3 or higher cable: 100 meters at 10 Mbps - Cat. 5 or higher cable: 100 meters at 100 Mbps - Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. MAC Address Table: 2048 Max Switching Capacity: 2 Gbps Max Forwarding Rate: 1.488 Mpps Packet Buffer: 2 Mbit
Reliability	Grounding Methods: Three-Prong Plug EMS: - IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 6kV - IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV Environment: - Operating Temperature: 0~40 ℃ (32~104 ℉) - Storage Temperature: -40~70℃ (-40~158 ℉) - Operating Humidity: 10~90% non-condensing - Storage Humidity: 10~95% non-condensing
Switching	802.3 Protocols: - 802.3i 10BASE-T - 802.3u 100BASE-TX - 802.3x Flow Control - 802.3af PoE - 802.3at PoE
Included in the Box	FS1010P Power Cord Installation Guide
Mechanical	Dimension: - 200×120×45 mm - 7.87×4.72×1.77 inches Product Weight: 610 g (21.52 oz.) Casing Material: Metal Installation: - Desktop - Wall-mount
Warranty	02-Year Brand Warranty

Description:

Cudy FS1010P 8-Port 10/100M PoE+ Switch

Cudy FS1010P 8-Port 10/100M PoE+ Switch is an affordable and flexible networking solution for home, office, or small business use. It includes 8 gigabit fast Ethernet ports with IEEE 802.3af/at PoE+ compatibility and 2 uplink gigabit fast Ethernet ports. 30W per PoE port and a maximum power budget of 120W render it suitable for powering IP cameras, wireless access points, or VoIP phones. This adapter supports three modes—Default, VLAN, and Extend. VLAN mode separates ports 1-8 from each other to help improve network security. Extend mode increases the transmission distance up to 250 meters, ideal for CCTV deployments.

The switch is powered by a Texas Instruments PoE chipset and a Realtek switch chip to provide stable performance. Auto-sensing technology also accommodates up to 32W on 802.3at PoE+ devices and is compatible with earlier 802.3af PoE devices. The built-in Port-Power-Prioritization ensures critical devices get powered first when needed. You can mount the FS1010P in different manners—on a desk, wall, or on a standard 1U rack-mount steel enclosure. It also has built-in fans and vent holes to manage heat and provide long-term stable operation.

The switch is made with a metal casing and has lightning protection of 6 kV, making it safe to use in different environments. Its MTBF (Mean Time Between Failures) is over 50,000 hours, making sure that the network is supplied for the long term. Easy to install and with no extra software to install, the Cudy FS1010P is ready out of the box. A strong and functional solution for any setup that needs PoE power and a bulletproof connection.

Buy Cudy FS1010P 8-Port 10/100M PoE+ Switch in Bangladesh

You can buy your desired Cudy FS1010P 8-Port 10/100M PoE+ Switch at Global Brand PLC. We are the authorized distributor of Cudy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
