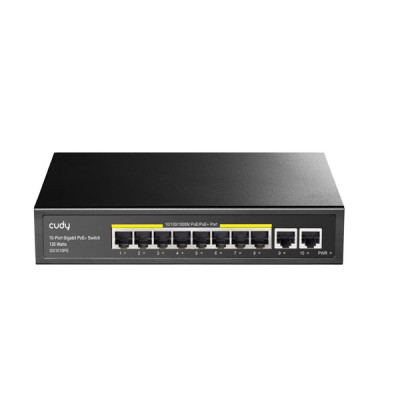

Cudy GS1010PE 10-Port Gigabit PoE+ Switch

Key Features of GS1010PE:

Up to 120 watts total PoE budget
Up to 30 watts PoE power one port
8 x 10/100/1000Mbps PoE+ ports
2 x 10/100/1000Mbps uplink ports
Comply with IEEE802.3af/at standards

Based on 0 reviews. - Write a review

৳6,400.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Up to 120 watts total PoE budget
attr -Key Feature 2 >	Up to 30 watts PoE power one port
attr -Key Feature 3 >	8 x 10/100/1000Mbps PoE+ ports
attr -Key Feature 4 >	2 x 10/100/1000Mbps uplink ports
attr -Key Feature 5 >	Comply with IEEE802.3af/at standards
Cudy Switch
Model	GS1010PE
Network Protocol	IEEE802.3 / IEEE802.3u IEEE802.3x / IEEE802.3af/at
PoE standard	IEEE802.3af/at
POE port output	DC 48-55V
PoE port	1-8
AC Input Voltage	AC100~240V
Output	52V ~ 2.3A
Power supply	120W
Power Pin	Power over spare pairs 1/2(+) , 3/6 (-)
PoE output-port	Max 30W
MAC Address	2K MAC address table
Packet buffer	2M bit
Transfer Mode	Store-and-forward
Bandwidth	20Gbps
Fan	Fanless
Device Dimension	222mm163mm40mm
Operating Temperature	-20°C ~ 50 °C
Storage Temperature	-40 °C ~ 80 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Certification	CE, FCC Class A
Warranty
Warranty Details	02-Year Brand Warranty

Description:

Cudy GS1010PE 10-Port Gigabit PoE+ Switch

Cudy GS1010PE 10-Port Gigabit PoE+ Switch is ideal for small or medium-sized networks needing power and data in a single cable. It has 8 Gigabit ports of PoE+ supporting IEEE 802.3af/at Mode A, providing up to 30W per port. With an overall power budget of 120W, it can power IP cameras, Wi-Fi access points, and VoIP phones at the same time. Plus, all ports are equipped with speed detection.

It also supports 2 Gigabit uplink ports for dependable network connections and high-speed data transfer. Default, VLAN, and Extend modes are included in it. For network security improvement, in VLAN mode, ports 1-8 are isolated from each other. Long-distance CCTV installation can be done through Extend mode using PoE to a maximum of 250 meters. The switch has a PoE watchdog feature. It keeps an eye on all PoE devices for connection problems and will reboot them automatically if needed. It avoids downtime and keeps your network up and running.

Cudy GS1010PE is plug-and-play, easy to use. It identifies devices securely and gives power only when needed. Non-PoE devices will not get damaged. The pin configuration is as per Mode A: 1/2(+), 3/6(-). The switch is simple to rack mount or install on a desktop. Its metal casing can resist heat, and the fan helps keep the system cool for long hours of usage. Its compact size of 220×163×40 mm (8.66×6.42×1.57″) makes it an easy fit in most settings. The switch is great to utilize in offices, homes, or small enterprises that need stable PoE and high-speed data in one device.

Buy Cudy GS1010PE 10-Port Gigabit PoE+ Switch in Bangladesh

You can buy your desired Cudy GS1010PE 10-Port Gigabit PoE+ Switch at Global Brand PLC. We are the authorized distributor of Cudy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
