Cudy GS105D 5-Port Gigabit Desktop Switch

Cudy GS105D 5-Port Gigabit Desktop Switch

Key Features of GS105D:

5× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Max 140 m transmission distance with Cat 5e or higher standard cables
IEEE 802.3x flow control and 3 Mbit packet buffer prevent packet loss
Power saving strategy saves power consumption when ports are idle
Desktop and wall-mounting

Based on 0 reviews. - Write a review

৳1,190.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	5× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
attr -Key Feature 2 >	Max 140 m transmission distance with Cat 5e or higher standard cables
attr -Key Feature 3 >	IEEE 802.3x flow control and 3 Mbit packet buffer prevent packet loss
attr -Key Feature 4 >	Power saving strategy saves power consumption when ports are idle
attr -Key Feature 5 >	Desktop and wall-mounting
Cudy Switch
Model	GS105D
Main Features	Standards: 802.3i 10 Mbps over Twisted Pair 802.3u 100 Mbps over Twisted Pair 802.3ab 1 Gbps over Twisted Pair 802.3x Flow Control Network Media: 10BASE-T: UTP Cat 3,4,5 cable (max 100 m) 100BASE-Tx: UTP Cat 5, 5e cable (max 100 m) 1000BASE-T: UTP Cat 5e, 6 or higher standard cable (max 140 m) Ethernet Ports: 5× 10/100/1000 Mbps Ethernet Ports MAC Address Table: 2K Packet Buffer: 3 Mbit Jumbo Frame: 15 KB Switching Capacity: 10 Gbps Max Forwarding Rate: 7.44 Mpps
Hardware Features	LED Indication: Power, Link/Act LEDs Transfer Method: Store-and-Forward Installation: Desktop, Wall-Mounting Casing: ABS Plastic
Power	Power Saving: Saves Power when Ports are Idle Power Output: DC 5 V / 0.55 A (Adapter) Max Power Consumption: 2 W Max Heat Dissipation: 6.82 BTU/h
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~ 167 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Dimensions (LWH)	88×52.5×24 mm 3.46×2.07×0.94 inches

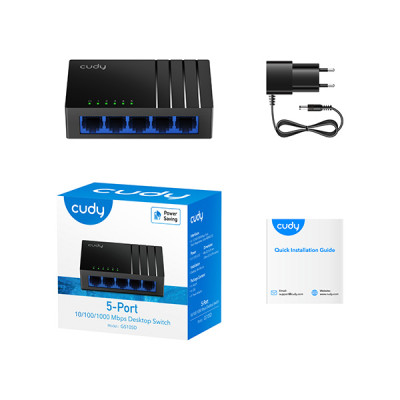

Package Content	1× Switch 1× Power Adapter 1× User Manual
Warranty	2-Year Brand Warranty

Description:

Cudy GS105D 5-Port Gigabit Desktop Switch

Cudy GS105D 5-Port Gigabit Desktop Switch is a practical and efficient networking solution that delivers seamless data transfer without compromise. With five 10/100/1000 Mbps Ethernet ports, this switch facilitates instant data transfer without interference, ensuring a smooth and uninterrupted network experience for devices like NAS, game consoles, desktops, IPTV, and routers.

This desktop switch supports auto-negotiation and auto-MDI/MDIX, ensuring hassle-free connectivity with various devices. The IEEE 802.3x flow control and a 3 Mbit packet buffer prevent packet loss, contributing to reliable and stable network performance. The switch adheres to standards such as 802.3i for 10 Mbps, 802.3u for 100 Mbps, 802.3ab for 1 Gbps, and 802.3x for flow control.

One standout feature of the GS105D is its ability to achieve a maximum transmission distance of 140 meters with Cat 5e or higher standard cables, providing 40% longer distance compared to standard switches. This feature simplifies wiring for larger premises, offering flexibility in network setup. The switch is equipped with power-saving strategies that reduce power consumption when Ethernet ports are idle, resulting in cost savings on electricity expenses for networking facilities. Its design allows for both desktop and wall-mounting, providing versatile placement options to suit different environments.

Technical specifications include a MAC address table of 2K, a packet buffer of 3 Mbit, jumbo frame support up to 15 KB, a switching capacity of 10 Gbps, and a max forwarding rate of 7.44 Mpps. These specifications contribute to the overall efficiency and performance of the switch. In summary, the Cudy GS105D 5-Port Gigabit Desktop Switch is a reliable and straightforward solution for expanding and enhancing your network. Its super-fast Gigabit capabilities, extended transmission distance, power-saving features, and versatile mounting options make it a practical choice for various networking scenarios, providing users with a dependable and cost-effective solution.

Where to buy Cudy GS105D 5-Port Gigabit Desktop Switch in Bangladesh?

You can buy your desired Cudy GS105D 5-Port Gigabit Desktop Switch at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
