image of ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard with Spec and Price in BDT

ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard

ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard

Key Features of TUF GAMING B860M-PLUS WIFI:

Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 5.0 slots, NPU Boost, WiFi 7, AI Intelligence

Based on 0 reviews. - Write a review

৳34,400.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 >	Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 5.0 slots, NPU Boost, WiFi 7, AI Intelligence
Motherboard
Model	TUF GAMING B860M-PLUS WIFI
CPU	Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel CoreTM Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x4 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet TUF LANGuard
Wireless & Bluetooth	Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 ports (1x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers

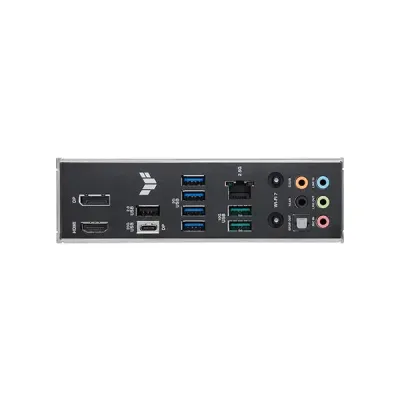

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors	I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 Rubber Packages 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard

The ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard is all about high-performance capability, with advanced features for gaming and AI workloads. It includes support for Intel Core Ultra Processors, Series 2, through 12+1+2+1 power stages and uses military-grade components to ensure long-term durability and stability. It features DDR5 memory with AEMP III for further optimization and a capability of up to DDR5-7600 (OC). There it has three M.2 slots, one of which is a PCIe 5.0 x4 slot for data transfer at up to 128 Gbps. The PCIe 5.0 and PCIe 4.0 slots address resource-heavy applications with efficiency. The high-performance cooling system includes VRM and chipset heatsinks, along with fan headers for maintaining stability under load.

Connectivity features include WiFi 7, Realtek 2.5Gb Ethernet, USB 20Gbps Type-C with DisplayPort Alt Mode, and front USB 10Gbps Type-C. Audio is powered by Realtek 7.1 Surround Sound, DTS Audio Processing, and premium components for rich, immersive sound. Installation should be a breeze with features such as PCIe Slot Q-Release, M.2 Q-Latch, and Q-LED troubleshooting lights that will make your life easier. Reinforced protection to PCIe and memory slots with SafeSlot and SafeDIMM, respectively. The Stainless Steel I/O panel is durable and corrosion-resistant, extending its life.

Guided optimization and troubleshooting are provided by ASUS AI Advisor, while Armoury Crate software supports RGB customization and device control. ASUS DriverHub simplifies driver management, while DIMM Fit ensures compatibility and stability in memory modules. ASUS TUF LANGuard and ESD Guards are on this motherboard for surge and static electricity protection. The TUF Gaming Alliance offers compatibility with a network of tested PC parts, ensuring compatibility that will allow a seamless building experience. The ASUS TUF GAMING B860M-PLUS WIFI is a reliable motherboard for gaming and building PCs that offer stable performance and essential features needed for modern applications.

Buy ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
