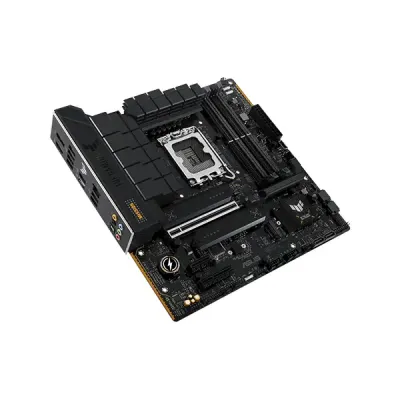

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard
ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard
ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard

Key Features of TUF GAMING B760M-PLUS II:
Chipset: Intel B760 Chipset for 14th Gen, 13th Gen & 12th Gen
Socket: Intel Socket LGA1700
Storage Supports: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Memory: 4 x DIMM slots, Max. 192GB, DDR5
Features: VRM Heatsinks Design, PCIe 5.0, Two-Way AI Noise Cancelation
ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard
Based on 0 reviews. - Write a review
৳22,700.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel B760 Chipset for 14th Gen, 13th Gen & 12th Gen
attr -Key Feature 2 > Socket: Intel Socket LGA1700
attr -Key Feature 3 > Storage Supports: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
attr -Key Feature 4 > Memory: 4 x DIMM slots, Max. 192GB, DDR5
attr -Key Feature 5 > Features: VRM Heatsinks Design, PCIe 5.0, Two-Way AI Noise Cancelation
Motherboard
Model TUF GAMING B760M-PLUS II
CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B760 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5
7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)

Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort
1 x HDMI port

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots Intel Core Processors (14th& 13th& 12th Gen)
1 x PCIe 5.0 x16 slot

IntelB760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th& 13th& 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)

Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supportsSATA RAID 0/1/5/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
USB Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback

Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers

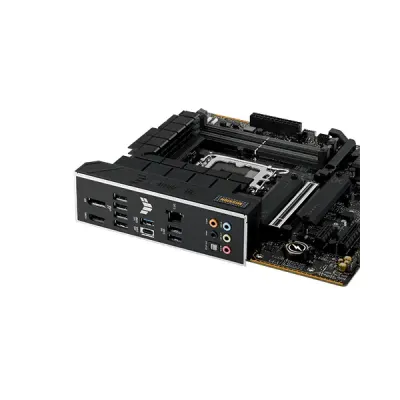

Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F-AUDIO)
1 x20-3 pin System Panel header with chassis intrusion function
1 x Thunderbolt (USB4) header
Special Features ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-steel back I/O

ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

ASUS Thermal Solution
M.2 heatsinks
VRM heatsink design

ASUS EZ DIY
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM

Aura Sync
Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancelation

AI Suite 3
DIGI+ VRM
PC CleanerTUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS

ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x M.2 rubber package
1 x TUF GAMING sticker
2 x Screw packages for M.2 SSD

Documentation
1 x TUF certification card
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard

ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard is made to last and perform. It supports Intel Core 14th and 13th Gen processors with a 12+1+1 power stage design for stable power delivery. Six-layer PCB and ProCool connectors ensure efficient heat dissipation and durability. Military-grade TUF chokes and capacitors ensure system stability. This motherboard has DDR5 memory with ASUS OptiMem II for improved stability and overclocking. AEMP II enables easy tuning for improved performance. It has PCIe 5.0 for graphics and three PCIe 4.0 M.2 slots for fast storage. The M.2 Q-Latch makes SSD installation easy while the dedicated heatsinks keep storage devices cool.

For connectivity, there are USB 20Gbps Type-C, USB 10Gbps, and USB 5Gbps ports available on the board. A front-panel USB 10Gbps Type-C header adds more pathways. The Realtek 2.5Gb Ethernet provides top-speed and high reliability of network connection. The motherboard features PCIe Q-Release, which renders the removal of the graphics card speedy. SafeSlot Core+ and SafeDIMM protect PCIe and RAM slots for long-term longevity. In-depth cooling includes a bigger VRM heatsink and multiple fan headers. ASUS-exclusive fan control is offered via Armoury Crate's Fan Xpert 2+. The board is enhanced by the ASUS-exclusive Digi+ VRM for the best power delivery. ESD Guards and TUF LANGuard are included in the protection.

The audio specs include Realtek 7.1-channel audio with DTS audio processing, audio shielding, and premium-quality capacitors. Two-way AI noise cancellation allows for the improvement of voice quality. The board comes with three addressable Gen 2 RGB headers and Aura Sync for enhanced customizable RGB lighting. UEFI BIOS has a user-friendly interface with advanced tuning capabilities. There are quick setup features via search functionality and graphical fan control. The board supports Thunderbolt (USB4) via a header, providing connectivity features. Built for marathon gaming, the TUF GAMING B760M-PLUS II offers stable performance with strong cooling and power efficiency.

Buy ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS TUF GAMING B760M-PLUS II Intel LGA1700 mATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
