ASUS B860M-E Intel LGA1851 Micro-ATX Motherboard

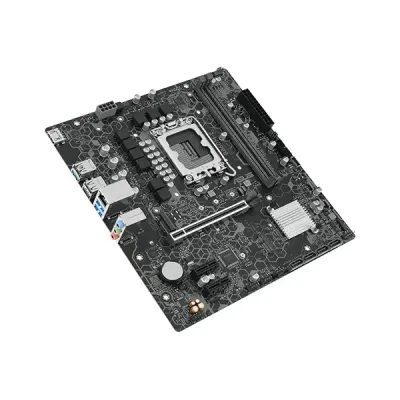

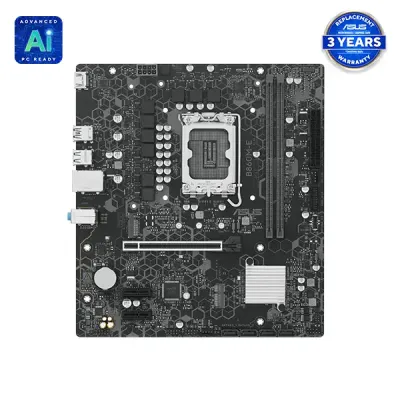

ASUS B860M-E Intel LGA1851 Micro-ATX Motherboard

Key Features of B860M-E:

Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 5.0 slots, EZ PC DIY, AI Intelligence

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 5.0 slots, EZ PC DIY, AI Intelligence
Motherboard
Model	B860M-E
Chipset	Intel B860 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports 4K@30Hz as specified in HDMI 1.4. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Memory Slots	Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB_E2 port, USB_E3 port, and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

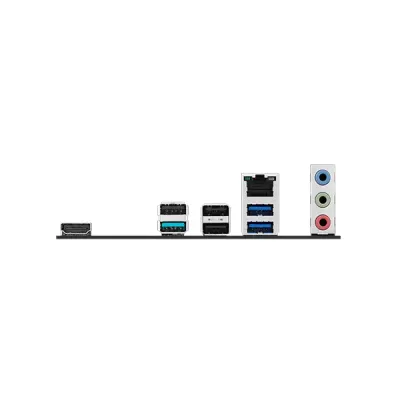

Back Panel I/O Ports	1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - ProCool
Software Features	ASUS Exclusive Software Armoury Crate - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS B860M-E Intel LGA1851 Micro-ATX Motherboard

ASUS B860M-E Intel LGA1851 Micro-ATX Motherboard is designed for Intel Core Ultra Processors (Series 2) and features several features to optimize your PC build. With a 6+1+1+1 phase digital power design, this motherboard provides stable power for both daily usage and heavy tasks. It supports DDR5 memory with speeds up to 7600 MT/s through AEMP III for maximum performance and stability. Equipped with one PCIe 5.0 M.2 slot for blistering data transfer speeds of up to 128Gbps to reduce boot times and application load times. It also includes PCIe 4.0 and PCIe 4.0 x1 slots for additional expansion. For faster data transfer, the B860M-E includes USB 10Gbps Type-A and USB 5Gbps Type-C.

It includes cooling through a passive chipset heatsink, smart fan headers, and software called ASUS Fan Xpert 2+, allowing for auto-tuning and extremely quiet modes for efficient running at high loads. Moreover, the B860M-E includes AI-powered solutions: AI Advisor to make more sense of and optimize features on the motherboard. Get the fastest and most stable internet connections with Realtek 2.5Gb Ethernet, and an M.2 slot to mount Wi-Fi/Bluetooth modules.

For easy personalization and control, it includes an advanced UEFI BIOS with an easy-to-use interface, ASUS DriverHub for driver management, and Armoury Crate for control over all ASUS gear. For DIY builders, comprehensive EZ PC DIY features also include SafeSlot Core+ for safeguarding PCIe slots and Q-LED indicators for quick troubleshooting. With versatile connectivity, efficient cooling, and advanced AI features, the ASUS B860M-E is built to provide a high-performance experience for gamers, creators, and PC enthusiasts.
