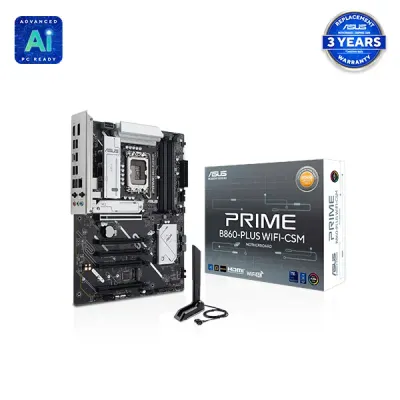

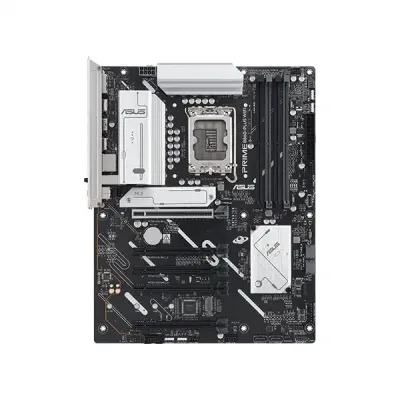

ASUS Prime B860-PLUS WIFI-CSM Intel LGA1851 ATX Motherboard

ASUS Prime B860-PLUS WIFI-CSM Intel LGA1851 ATX Motherboard

Key Features of Prime B860-PLUS WIFI-CSM:

Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, EZ PC DIY, PCIe 5.0 slots, WiFi 6E, AI Solutions

Based on 0 reviews. - Write a review

৳29,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, EZ PC DIY, PCIe 5.0 slots, WiFi 6E, AI Solutions
Motherboard
Model	PRIME B860-PLUS WIFI-CSM
CPU	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot (PCIEX16(G5)) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode) 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later ** The Bluetooth
Supported Memory	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps port (1 x USB Type-C) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

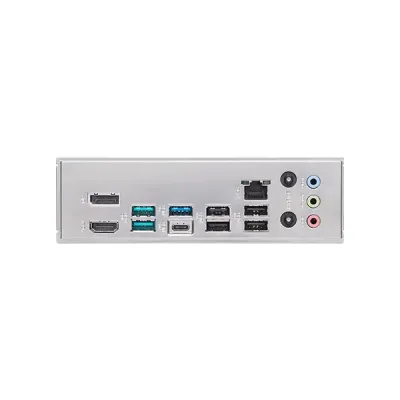

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header
Special Features	ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS Prime B860-PLUS WIFI-CSM Intel LGA1851 ATX Motherboard

ASUS Prime B860-PLUS WIFI-CSM Intel LGA1851 ATX Motherboard is designed to unlock the full potential of Intel Core Ultra Processors, Series 2. It features an advanced 8+1+1+1 power stage design, ensuring stable and efficient power delivery, further supported by VRM heatsinks and a six-layer PCB for enhanced stability and performance. It features support for up to DDR5 memory with ASUS Enhanced Memory Profile III for speeds of up to DDR5-7600. Two M.2 slots, one is PCIe 5.0 x4, provide ideal boot and app load speeds. DIMM Fit BIOS feature: it ensures the best compatibility for the memory modules with different needs.

Cooling comes with more than a handful of onboard heatsinks, software-controlled fans thanks to Fan Xpert 2+, and hybrid fan headers for steadfast stability. There is also more for connectivity, given through WiFi 6E for lightning-quick and solid wireless performance, Realtek 2.5Gb Ethernet, a PCIe 5.0 x16 for blistering data transfer, and rear USB Type-C with 20Gbps. Customization is made easy by ASUS Aura Sync for controlling RGB lighting and three addressable Gen2 headers for compatible devices. The UEFI BIOS comes with an easy mode of setup for beginners and advanced configurations for experienced users. The features like a pre-mounted I/O shield and Q-Antenna make the building process easier. The ASUS Corporate Stable Model program backs this motherboard for up to a 36-month product lifecycle, ASUS Control Center Express for IT management, and a secure endpoint configuration. With these stable features of stability, performance, and ease of use all rounded up, the ASUS PRIME B860-PLUS WIFI-CSM would be a versatile choice for end-users.

Buy ASUS Prime B860-PLUS WIFI-CSM Intel LGA1851 ATX Motherboard in Bangladesh

You can buy your desired ASUS Prime B860-PLUS WIFI-CSM Intel LGA1851 ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
