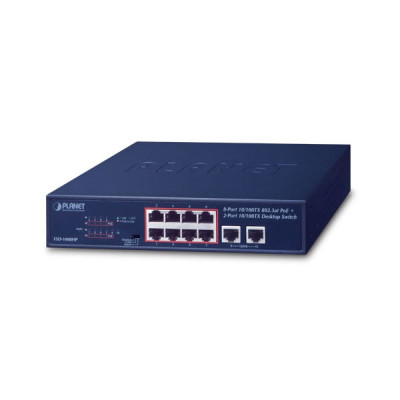

Planet FSD-1008HP 8-Port 120W PoE Unmanaged Switch

Key Features of FSD-1008HP:

10/100BASE-TX MDI/MDIX Ports: 10
PoE Injector Port: 8-port with 802.3at/af PoE injector function
Switch Throughput@64 bytes: 1.48Mpps@64 bytes
Dimensions: 220 x 150 x 43 mm (1U height)
CALL FOR DETAILS: 01958510839

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	10/100BASE-TX MDI/MDIX Ports: 10
attr -Key Feature 2 >	PoE Injector Port: 8-port with 802.3at/af PoE injector function
attr -Key Feature 3 >	Switch Throughput@64 bytes: 1.48Mpps@64 bytes
attr -Key Feature 4 >	Dimensions: 220 x 150 x 43 mm (1U height)
attr -Key Feature 5 >	CALL FOR DETAILS: 01958510839
Planet Switch
Copper Ports	10x 10/100BASE-TX MDI/MDIX Ports
PoE Inject Port	8-port with 802.3at/af PoE injector function with Port-1 to Port-8
Switch Architecture	Store-and-Forward
Switch Fabric	2Gbps/non-blocking
MAC Address Table	8K entries, automatic source address learning and aging
Switch Throughput	1.48Mpps@64 bytes
Maximum Frame Size	1522 bytes
Enclosure	Metal
ESD Protection	Contact discharge of 4KV DC Air discharge of 6KV DC
Flow Control	IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex
DIP Switch	Selectable operation mode Standard VLAN Extend
LED	System: Power (Green) 10/100BASE-TX RJ45 interfaces: 10/100Mbps LNK/ACT (Green) PoE interfaces: PoE-in-Use (Orange)
Dimensions (W x D x H)	220 x 150 x 43 mm (1U height)
Weight	1230 g
Power Consumption	System On: Max. 2.4 watts/8.1 BTU Ethernet Full Loading: Max. 5 watts/10.2 BTU PoE Full Loading: Max. 129 watts/440.1 BTU
Fan	Fanless
Power Requirements	AC 100~240V, 50/60Hz, 2.5A max.
