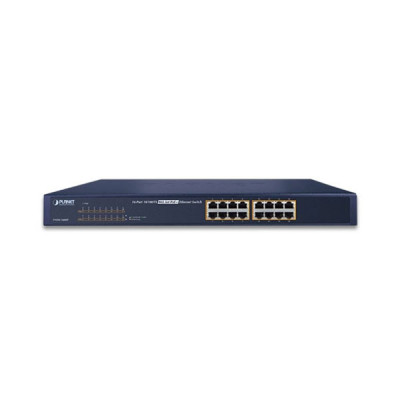

Planet FNSW-1600P 16-Port 10/100TX 802.3at PoE Ethernet Switch

Key Features of FNSW-1600P :

16 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector
Complies with IEEE 802.3at Power over Ethernet Plus/End-span PSE
Supports PoE power up to 30 watts for each PoE port
125W PoE power budget
Auto detects powered device (PD)
CALL FOR DETAILS: 01958510839

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	16 10/100BASE-TX RJ45 ports with IEEE 802.3at PoE+ injector
attr -Key Feature 2 >	Complies with IEEE 802.3at Power over Ethernet Plus/End-span PSE
attr -Key Feature 3 >	Supports PoE power up to 30 watts for each PoE port
attr -Key Feature 4 >	125W PoE power budget
attr -Key Feature 5 >	Auto detects powered device (PD)
Call Info >	CALL FOR DETAILS: 01958510839
Battery - UPS
Operating Temp. Range	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Cudy Switch
PoE standard	IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE
Power Pin	1/2(+), 3/(-)
PoE Power Output	Per port 52V DC ( max.30.8 watts)
PoE Power budget	125 watts
Lexar RAM
Storage Temperature	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Planet Switch
Hardware Version	4
Copper Ports	16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
PoE Inject Port	16 ports with 802.3at/af PoE injector function with Port-1 to Port-16
Switch Architecture	Store-and-Forward
Switch Fabric	3.2Gbps/non-blocking
Switch Throughput	2.38Mpps@64 bytes (packet per second)
Address Table	8K entries, automatic source address learning and aging
LED	System: 　Power(Green) Port 1 to Port 16: 　10/100 LNK/ACT (Green) 　PoE-in-Use (Orange)
Dimensions (W x D x H)	445 x 207 x 45 mm
Weight	2330g
Power Consumption	Max. 128.4 watts/440.54 BTU
Power Requirements	AC 100~240V, 50/60Hz, 2A max.
Standards Compliance	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
Power Supply
REGULATORY	FCC Part 15 Class A, CE
