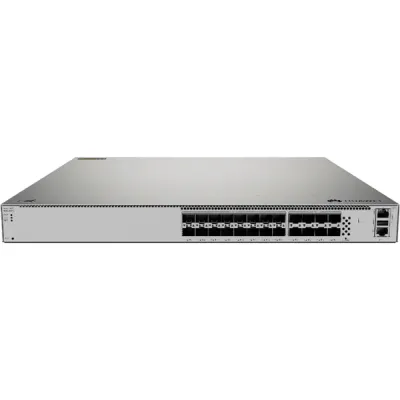

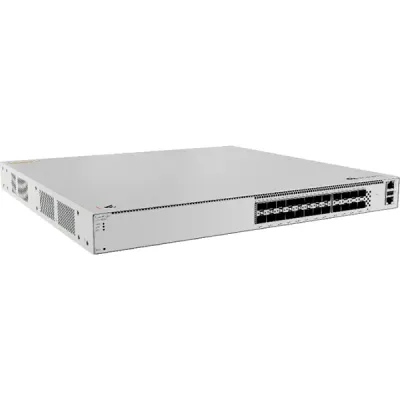

Huawei eKit S620-16X8YZ 16-Port 10GE SFP+ & 8-Port 25GE SFP28 Managed Non-PoE Switch

Huawei eKit S620-16X8YZ 16-Port 10GE SFP+ & 8-Port 25GE SFP28 Managed Non-PoE Switch

Key Features of S620-16X8YZ:

Model: S620-16X8YZ
Details: 16 x 10GE SFP+ ports, 8 x 25GE SFP28 ports \| Packet forwarding rate: 833 Mpps \| Switching capacity: 1120 Gbit/s
PoE Budget: Not Applicable
Type: Layer 3 Standard Switch
Warranty: 3 Year Brand Warranty

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Model: S620-16X8YZ
attr -Key Feature 2 >	Details: 16 x 10GE SFP+ ports, 8 x 25GE SFP28 ports \| Packet forwarding rate: 833 Mpps \| Switching capacity: 1120 Gbit/s
attr -Key Feature 3 >	PoE Budget: Not Applicable
attr -Key Feature 4 >	Type: Layer 3 Standard Switch
attr -Key Feature 5 >	Warranty: 3 Year Brand Warranty
Huawei Switch.
Switching Capacity	1120 Gbit/s
Packet Forwarding Rate	833 Mpps
10G SFP+	16 (10G/2.5G/1G)
iStack	Up to 9 switches of the same series in a stack
Certification	EMC certification, Safety certification, Manufacturing certification
Chassis Material	Metal
Static Power Consumption [W]	50
Dimensions Without Packaging (H X W X D) [Mm(In.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)]	145.0 mm x 650.0 mm x 550.0 mm (5.71 in. x 25.59 in. x 21.65 in.)
Installation Type	Rack mounting, Desk mounting
Weight Without Packaging [Kg(Lb)]	6.0 (13.23)
Weight With Packaging [Kg(Lb)]	8.49
Typical Power Consumption [W]	30% traffic under the ATIS standard and dual power modules: - 79 W (with two 180 W AC power modules) - 73 W (with two 240 W DC power modules)
Maximum Power Consumption [W]	100% traffic under the ATIS standard and dual power modules: - 85 W (with two 180 W AC power modules) - 78 W (with two 240 W DC power modules)
Number Of Fans Modules	2
Long-Term Operating Temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Long-Term Operating Relative Humidity [Rh]	5% RH to 95% RH, non-condensing
Power Supply Mode	Pluggable Power Supply
Input Voltage Range [V]	- AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Power Supply Surge Protection [Kv]	- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types Of Fans	Pluggable
Heat Dissipation Mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow Direction	Air intake from front and right and air exhaust from rear

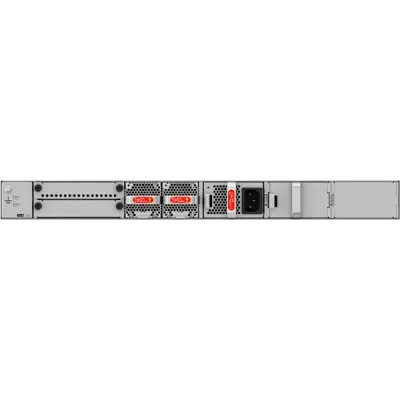

Redundant Power Supply	1+1 Pluggable AC and DC power modules can be used together on the same device. Note: Power modules with fans and power modules without fans cannot be installed on the same device.
Warranty	3 Year Brand Warranty

Description:

Huawei eKit S620-16X8YZ 16-Port 10GE SFP+ & 8-Port 25GE SFP28 Managed Non-PoE Switch

Huawei eKit S620-16X8YZ 16-Port 10GE SFP+ & 8-Port 25GE SFP28 Managed Non-PoE Switch is a fast data center, enterprise core, and aggregation network solution. With the switching capacity of 1120 Gbit/s and 833 Mpps packet forwarding rate, it delivers fast and secure traffic processing in high-requirement network environments. This model features 16×10GE SFP+ ports and 8×25GE SFP28 ports, supporting multi-speed like 25G, 10G, 2.5G, and 1G for flexible deployment. The switch is also supported by iStack technology, which allows up to 9 devices of the same series to be stacked together for easy management and scalability. It features 1 card slot and 2 power slots, and it supports both AC and DC pluggable power modules. In reliability, the switch has 1+1 redundant power supply with the ability to mix AC and DC modules on a single product. It uses pluggable fan modules for effective heat dissipation with smart speed control, and its airflow design takes in air from the front and right side and exhausts out at the back.

Efficiency is with typical usage of 79 W on two 180 W AC modules or 73 W on two 240 W DC modules at 30% traffic loading. Typical usage is 85 W with two AC modules or 78 W with two DC modules at full traffic. Standby usage is 50 W. Surge immunity is ±6 kV (AC) and up to ±4 kV (DC). The Huawei eKit S620-16X8YZ is housed in a metal casing measuring 43.6 mm × 442.0 mm × 420.0 mm and weighing 6.0 kg without the packaging. It supports rack and desk mounting, operates from –5°C to +45°C, and keeps operating from 5% to 95% non-condensing humidity. EMC, safety, and manufacturing certified, it supports secure and high-speed switching for enterprise-class networks.

Buy Huawei eKit S620-16X8YZ 16-Port 10GE SFP+ & 8-Port 25GE SFP28 Managed Non-PoE Switch in Bangladesh

You can buy your desired Huawei eKit S620-16X8YZ 16-Port 10GE SFP+ & 8-Port 25GE SFP28 Managed Non-PoE Switch at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
