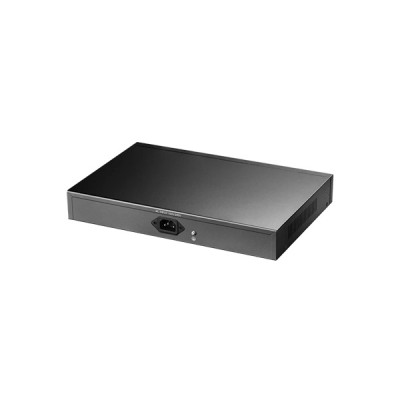

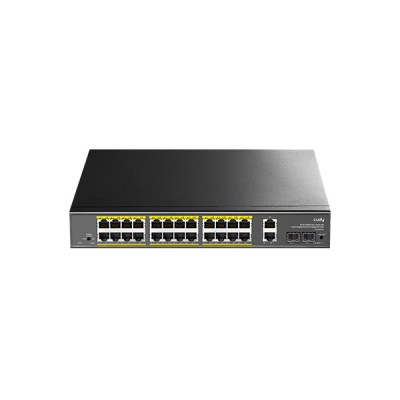

Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Key Features of GS1026PS2:24× GbE with 802.3at/af PoE |
300W Power Supply |
2× Uplink GbE + 2× Uplink SFP |
Watchdog under Extend Mode |
Desktop, Rack-Mount |
Key Features | |
attr - Key Feature 1 > | 24× GbE with 802.3at/af PoE |
attr -Key Feature 2 > | 300W Power Supply |
attr -Key Feature 3 > | 2× Uplink GbE + 2× Uplink SFP |
attr -Key Feature 4 > | Watchdog under Extend Mode |
attr -Key Feature 5 > | Desktop, Rack-Mount |
Cudy Switch | |
Interface | Physical Buttons: Default/Extend DIP switch, PoE LED Toggle 1.25G SFP Slots: 2 Gigabit RJ45 Ports: 2 Gigabit RJ45 PoE Ports: 24 Max Power on a Single PoE Port: 30W PoE Port Notes: PoE ports support 802.3at/af standards. Extend Mode Ports: #17~#24 LED: Power DIP Mode (SW) Link/ACT/PoE Status of Each PoE Port Link/ACT of Each Ethernet Port PoE Max Status Power Input: AC Inlet |
Power | Power Methods: AC AC: 100-240V 50/60Hz Max Power Consumption: 200W Max Power Excluding PoE: 10W |
Mechanical | Casing Material: Metal Installation: Desktop, Rackmount via Brackets |
Weight | Product Weight: 1986 g (70.05 oz.) |
Device Dimension | 320×207×44 mm 12.6×8.15×1.73 inches |
Model Version | GS1026PS2 1.0 |
Performance | Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports. MAC Address Table: 8192 Max Switching Capacity: 56 Gbps Max Forwarding Rate: 41.664 Mpps Packet Buffer: 3 Mbit |
Reliability | Grounding Methods: Three-Prong Plug Environment: Operating Temperature: -10~50 ℃ (14~122 ℉) Storage Temperature: -40~70 ℃ (-40~158 ℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Switching | 802.3 Protocols: 802.3i 10BASE-T 802.3u 100BASE-T 802.3ab 1000BASE-T 802.3z 1.25 Gbps over Fiber 802.3x Flow Control 802.3af PoE 802.3at PoE Port Management: Watchdog Port Management Note: The Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client. |

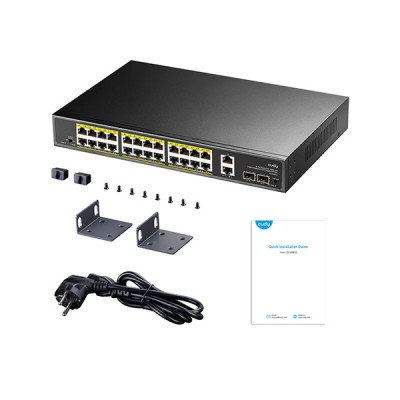

Included in the Box | GS1026PS2 Power Cord Mounting Kit Installation Guide |
Warranty | 2-Year Brand Warranty |
Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Cudy GS1026PS2 is a 24-GbE PoE Switch coming with 2 Uplink GbE and 2 Uplink SFP that is optimal for large networks that require effective management of power and data. This switch is designed for rack-mount and it provides twenty-four ports, all of which are capable of providing Gigabit Ethernet with support for 802.3at/af PoE, which makes it suitable to act as a power source to IP cameras, VoIP phones, and other appliances that support PoE. This comprises 2 Gigabit uplink ports and two SFPs for fiber connection to allow for physical expansion in the networks.
The maximum PoE power is 300W thus providing high-voltage power delivery to all PoE ports which makes it possible to power many devices without exceeding the power limit. Switch: Default and Extend: It also has watchdog function in extend mode which is used to maintain the stability of the network. It comes with dimensions of 320(W) x 207(D) x 44(H)mm which makes it possible to fit it into standard server racks while at the same time being usable on a desktop. The silent cooling system assures you that your workstation works without having the cooling system interfere. An ideal solution for any company or organization that needs a reliable and scalable approach to networking, the Cudy GS1026PS2 is both, a smart switch for networking and an efficient power solution.
Buy Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP in Bangladesh
You can buy your desired Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP at Global Brand PLC. We are the authorized distributor of Cudy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
What is the Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP price in Bangladesh?
Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP price in Bangladesh is BDT ৳19,690.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP for you and enjoy a top-class experience. .
Where to buy authentic Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP in Bangladesh?
You can buy 100% authentic Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP in BDT as well you can buy online GS1026PS2 with best price. The Cudy GS1026PS2 24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP is available in Bangladesh for the following price: ৳19,690.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy GS1026PS2 online at the best price in Bangladesh!
