Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP

Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP

Key Features of GS1018PS2:
16× GbE with 802.3at/af Mode A PoE
200W Power Supply
2× Uplink GbE + 2× Uplink SFP
Watchdog under Extend Mode
Desktop, Rack-Mount
Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP
Based on 0 reviews. - Write a review
৳15,490.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 16× GbE with 802.3at/af Mode A PoE
attr -Key Feature 2 > 200W Power Supply
attr -Key Feature 3 > 2× Uplink GbE + 2× Uplink SFP
attr -Key Feature 4 > Watchdog under Extend Mode
attr -Key Feature 5 > Desktop, Rack-Mount
Cudy Switch
Interface Physical Buttons: Default/Extend DIP switch
1.25G SFP Slots: 2
Gigabit RJ45 Ports: 2
Gigabit RJ45 PoE Ports: 16
Max Power on a Single PoE Port: 30W
PoE Port Notes: PoE ports support 802.3at/af standards.
Extend Mode Ports: #9~#16
LED: Power, Speed/Link/ACT of Each Ethernet Port, Extend Status
Power Input: AC Inlet
Power Power Methods: AC
AC: 100-240V 50/60Hz
Max Power Consumption: 200W
Max Power Excluding PoE: 10W
Mechanical Casing Material: Metal
Installation: Desktop, Rackmount via Brackets
Weight Product Weight: 1789 g (63.11 oz.)
Device Dimension 320×207×44 mm
12.6×8.15×1.73 inches
Model Version GS1018PS2 1.0
Performance Copper Speed and Distance:
Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 100 meters at Gigabit
Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table: 8192
Max Switching Capacity: 40 Gbps
Max Forwarding Rate: 29.76 Mpps
Packet Buffer: 3 Mbit
Reliability Grounding Methods: Three-Prong Plug
Lightning/Surge Protection: 4kV
ESD Contact Protection: 6kV
ESD Air Protection: 8kV
Environment:
Operating Temperature: -10~50 ℃ (14~122 ℉)
Storage Temperature: -40~70 ℃ (-40~158 ℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Switching 802.3 Protocols:
802.3i 10BASE-T
802.3u 100BASE-T
802.3ab 1000BASE-T
802.3z 1.25 Gbps over Fiber
802.3x Flow Control
802.3af PoE
802.3at PoE

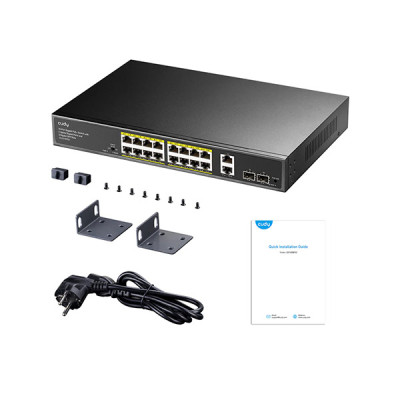

Included in the Box GS1018PS2
Power Cord
Mounting Kit
Installation Guide
Warranty 2-Year Brand Warranty
Description:

Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP

Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP is a versatile solution for expanding your network with Power over Ethernet capabilities. Enabling 802.3at/af Mode A PoE on 16 Gigabit Ethernet ports, it has a 200W power supply for effective device communication. For flexible network expansion, the switch also has two uplink GbE ports and two uplink SFP ports. Featuring default and extended modes, this switch fits a range of networks, providing extended coverage if needed. In extended mode, it is possible to note the existence of the built-in watchdog function, which allows for maintaining the stability of the network in the presence of problems. The cooling system also works calmly, hence suitable to be used in special quiet zones.

The Cudy GS1018PS2 is quite small and lightweight for placing on a desk or in a rack with its dimensions of 320 × 207 × 44 mm (12.6 × 8.15 × 1.73 in). Whether being used in an office or a large Business environment, this switch provides stable operation due to the power supply and connectivity options it offers.

Buy Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP in Bangladesh

You can buy your desired Cudy GS1018PS2 16-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFP at Global Brand PLC. We are the authorized distributor of Cudy in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
