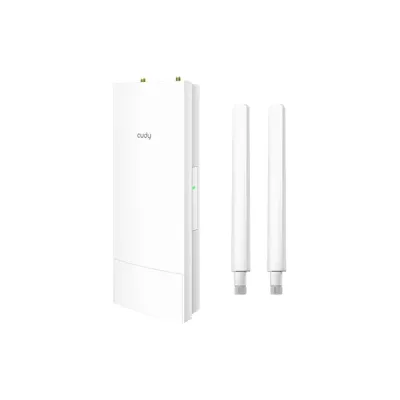

CUDY AP3000 Outdoor AX3000 High-Power Wi-Fi 6 Access Point

CUDY AP3000 Outdoor AX3000 High-Power Wi-Fi 6 Access Point

Key Features of AP3000 Outdoor:

IP65, -40~70°C (-40~158°F), 6kV Surge
4-Stream Dual-Band Wi-Fi 6 (2402 Mbps + 574 Mbps)
1× Shielded GbE PoE In
802.3at, 48~57V Passive PoE
Max 320 m (1050 ft) Range, 200 Connected Devices

Based on 0 reviews. - Write a review

৳11,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	IP65, -40~70°C (-40~158°F), 6kV Surge
attr -Key Feature 2 >	4-Stream Dual-Band Wi-Fi 6 (2402 Mbps + 574 Mbps)
attr -Key Feature 3 >	1× Shielded GbE PoE In
attr -Key Feature 4 >	802.3at, 48~57V Passive PoE
attr -Key Feature 5 >	Max 320 m (1050 ft) Range, 200 Connected Devices
General
Brand	CUDY
Model	AP3000
Type	Outdoor AX3000 High-Power Wi-Fi 6 Access Point
Hardware Specifications
CPU	Chipset: MT7981BA CPU Details: 1.3 GHz Dual-Core CPU
Memory/Storage	Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 256 MB (2 Gbit) DDR3
Wireless	5 GHz Wi-Fi Speed: 2402Mbps 2.4 GHz Wi-Fi Speed: 574Mbps 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 1× Internal+2× External 5 GHz Antenna Gain Max: 6 dBi 2.4 GHz Antenna Gain Max: 4 dBi FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power Detachable Wi-Fi Antennas Connector: RP-SMA Female Beamforming: True Range Performance: Max: 320 m (1050 ft) Park: 280 m (919 ft) Street: 70 m (230 ft) Woods: 40 m (131 ft)

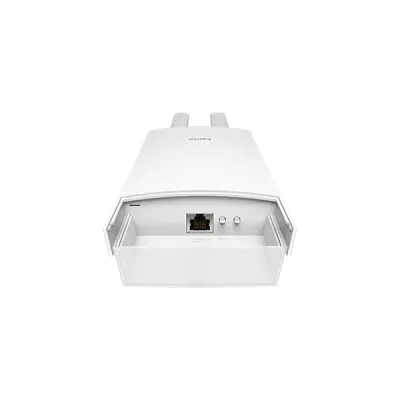

Interfaces	Gigabit RJ45 Ports: 1 Ethernet Notes: Accepts PoE powering LED: System Physical Buttons: WPS Button, Reset Button Power Input: PoE via Ethernet Port
Power	Power Methods: 802.3at PoE Passive PoE Passive PoE: 48 ~ 57V Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE Max Power Consumption (W): 18 W Idle Power Consumption (W): 5 W
Reliability	Advanced: Hardware Watchdog Lightning/Surge Protection: 6kV ESD Contact Protection: 4kV ESD Air Protection: 8kV Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 10% ~ 95% non-condensing
Installation	Installation: Wall-mount Pole-mount Dimension: Device Body: 240×100×53.7 mm 9.45×3.94×2.11 inches Each Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches
Software Specifications
Wireless	Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: OFDMA, MU-MIMO, BSS Color Max Capacity: 512 Recommended Client Upper Limit: 200 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Multi-SSID (Max Number): TBD WPS: True
General	Internet Failover Sequence: WAN, WISP
Network	QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ Firewall: SPI Firewall DoS Protection Block PING Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	Captive Portal: True VPN Server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP VPN Client: WireGuard OpenVPN IPsec Zerotier PPTP L2TP DNS Options: DNS over TLS Manual DNS Rebind Protection Override Clients' DNS DNS over TLS Providers: Cloudflare Google Quad9 Custom Wake on LAN: True Online Detection: True
Management	All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter
System	LED Control: True Local Control Method: Config Web Page App Control Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR181 Firmware Upgrade: Local Update App (Over the Air) Online Update Reliability: Timed Reboot Backup and Restore Diagnostic Tools: Diagnosis Ping Traceroute NSLookup System Log Languages: English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel: Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version Charts: Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
Physical Specification
Dimensions	324×107×86 mm 12.76×4.21×3.39 inches
Weight	EU: 856 g (30.19 oz.)
Additional
Included in the Box	AP3000 Outdoor Detachable Antennas PoE Adapter Power Cord Mounting Kit Ethernet Cable Installation Guide
Warranty
Warranty Details	2-Year Brand Warranty

Description:

CUDY AP3000 Outdoor AX3000 High-Power Wi-Fi 6 Access Point

CUDY AP3000 Outdoor AX3000 High-Power Wi-Fi 6 Access Point provides reliable and high-speed internet for outdoor environments like parks, farms, and parking lots. It supports dual-band Wi-Fi 6, delivering up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. With OFDMA and MU-MIMO technology, it connects up to 512 devices, ensuring minimal latency for smooth online experiences.

Designed for outdoor durability, this access point features an IP65-rated casing to withstand rain, dust, and temperatures ranging from -40°F to 158°F (-40°C to 70°C). It is also protected against lightning and surge damage with 6 kV surge and 8 kV ESD safeguards. Equipped with five power amplifiers and a 3+2 antenna structure, it offers up to 320 meters (1050 feet) of coverage, even through obstacles. The device supports Cudy Mesh networks, allowing seamless roaming with uninterrupted connectivity as devices move across the coverage area. Adaptive routing automatically optimizes network paths to reduce congestion.

The AP is powered via a shielded Gigabit PoE-in port, with two options: 802.3at PoE or 48-57V passive PoE. A mounting kit included in the box supports wall or pole installation for flexible placement. Setting up the CUDY AP3000 is straightforward, with simple mesh integration and support for Ethernet backhaul. Ideal for high-density outdoor applications, it ensures stable and wide-ranging Wi-Fi connectivity for diverse needs.

Buy CUDY AP3000 Outdoor AX3000 High-Power Wi-Fi 6 Access Point in Bangladesh

You can buy your desired CUDY AP3000 Outdoor AX3000 High-Power Wi-Fi 6 Access Point at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
