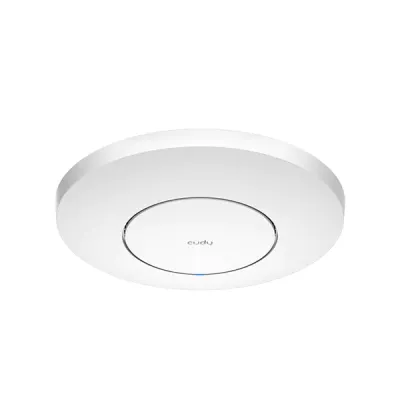

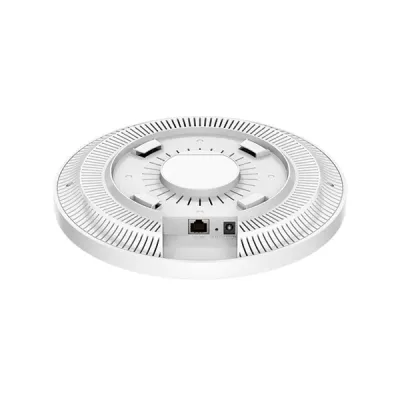

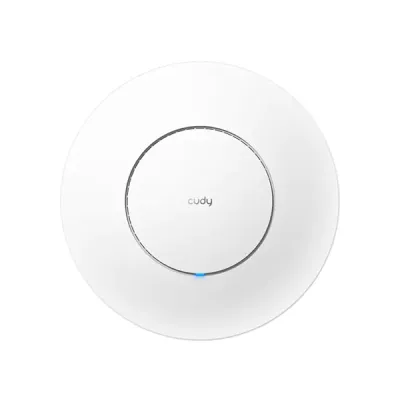

image of CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point with Spec and Price in BDT

CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point

CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point

Key Features of AP3000 (Indoor):

1.3 GHz Dual-Core CPU, 512MB RAM
4-Stream Dual-Band Wi-Fi 6 (2402 Mbps + 574 Mbps)
1× Shielded 2.5GbE PoE In
802.3at, Passive PoE, DC
300 Connected Devices, Covers up to 130 m² (1,400 ft²)

Based on 0 reviews. - Write a review

৳9,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	1.3 GHz Dual-Core CPU, 512MB RAM
attr -Key Feature 2 >	4-Stream Dual-Band Wi-Fi 6 (2402 Mbps + 574 Mbps)
attr -Key Feature 3 >	1× Shielded 2.5GbE PoE In
attr -Key Feature 4 >	802.3at, Passive PoE, DC
attr -Key Feature 5 >	300 Connected Devices, Covers up to 130 m² (1,400 ft²)
General
Brand	CUDY
Model	AP3000 Indoor
Type	AX3000 2.5G Wi-Fi 6 Access Point
Hardware Specifications
CPU	Chipset: MT7981BA CPU Details: 1.3 GHz Dual-Core CPU
Memory/Storage	Flash/ROM: 256 MB (2 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR4
Wireless	5 GHz Wi-Fi Speed: 2402Mbps 2.4 GHz Wi-Fi Speed: 574 Mbps 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 5× Internal 5 GHz Antenna Gain Max: 5.6 dBi 2.4 GHz Antenna Gain Max: 4.8 dBi FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power Beamforming: True Range Performance: Max: 200 m (656 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces	2.5G RJ45 Ports: 1 Ethernet Notes: Accepts PoE powering LED: System Physical Buttons: Reset Button Power Input: DC Jack, PoE via Ethernet Port
Power	Power Methods: DC 802.3at/af PoE Passive PoE DC: 12V 1.5A Passive PoE: 48 ~ 57V Power Adapter: AP3000 \| DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC AP3000_P \| PoE Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE Max Power Consumption (W): 12 W (48 V PoE) 12 W (DC) Idle Power Consumption (W): 6.1 W (48 V PoE) 6.1 W (DC)
Reliability	Advanced: Hardware Watchdog ESD Contact Protection: 4kV ESD Air Protection: 8kV Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Installation	Installation: Wall-mount Ceiling-mount Dimension: 231.9×57.1 mm 9.13×2.25 inches Product Weight: 494 g (17.43 oz.)
Software Specifications
Wireless	Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: OFDMA, MU-MIMO, BSS Color Max Capacity: 512 Recommended Client Upper Limit: 300 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Multi-SSID (Max Number): TBD WPS: True
General	Internet Failover Sequence: WAN, WISP
Network	QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite PTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ Firewall: SPI Firewall DoS Protection Block PING Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	Captive Portal: True VPN Server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP VPN Client: WireGuard OpenVPN IPsec Zerotier PPTP L2TP DNS Options: DNS over TLS Manual DNS Rebind Protection Override Clients' DNS DNS over TLS Providers: Cloudflare Google Quad9 Custom Wake on LAN: True Online Detection: True
Management	All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter
System	LED Control: True Local Control Method: Config Web Page, App Control Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR181 Firmware Upgrade: Local Update App (Over the Air) Online Update Reliability: Timed Reboot Backup and Restore Diagnostic Tools: Diagnosis Ping Traceroute NSLookup System Log Languages: English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel: Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version Charts: Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
Physical Specification
Dimensions	283×238×68 mm 11.14×9.37×2.68 inches
Weight	With PoE Adapter (_P) \| EU: 1015 g (35.8 oz.) With DC Adapter \| EU: 941 g (33.19 oz.)
Additional
Included in the Box	AP3000 Power Adapter Mounting Kit Ethernet Cable Installation Guide
Warranty
Warranty Details	2-Year Brand Warranty

Description:

CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point

CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point is a high-performance solution designed for demanding environments like transportation hubs, hotels, offices, lecture halls, and classrooms. This wall or ceiling-mounted access point delivers fast and reliable connectivity, ensuring smooth operation in high-density scenarios. Powered by a 1.3 GHz dual-core CPU and 512 MB RAM, this device supports up to 512 connected devices while reducing latency with advanced UL/DL MU-MIMO and OFDMA technologies. Dual-band Wi-Fi 6 provides speeds of 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, offering seamless performance for streaming, gaming, and browsing.

The shielded 2.5G Ethernet port ensures stable multi-gig connectivity, even in complex electromagnetic environments. Its five antennas and 3+2 structure enhance coverage, while beamforming technology directs signals towards connected devices for better reliability. Mesh support (802.11k/v) allows seamless roaming between access points, ensuring uninterrupted Wi-Fi for live streaming or calls. Features like band steering, auto channel selection, and auto mesh optimization improve network performance by minimizing congestion and interference.

The access point supports multiple operation modes, including Access Point, Wi-Fi Router, Range Extender, and WISP, making it versatile for various applications. A customizable captive portal helps enhance brand visibility by displaying a tailored login page. Installation is flexible with options for 802.3at/af PoE, passive PoE, or DC power supply, and it can be mounted on walls or ceilings to suit different spaces. The CUDY AP3000 is a reliable choice for providing fast, stable, and efficient Wi-Fi coverage across large areas.

Buy CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point in Bangladesh

You can buy your desired CUDY AP3000 Indoor AX3000 2.5G Wi-Fi 6 Access Point at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
