ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard

ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard

Key Features of Z890 AYW GAMING WIFI W:

Chipset: Intel Z890 for Intel Core Ultra Processors(Series 2)
Socket: Intel Socket LGA1851
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty: 3-Year Brand Warranty (Condition applied)

Based on 0 reviews. - Write a review

৳43,200.00

Add to Cart

Buy Now

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel Z890 for Intel Core Ultra Processors(Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Warranty: 3-Year Brand Warranty (Condition applied)
Motherboard
Model	Z890 AYW GAMING WIFI W
CPU	Support Intel Core Ultra Processors(Series 2), LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z890 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8600+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to the CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function.
Graphics	1 x DisplayPort 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@120Hz as specified in DisplayPort 1.4. ***VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel Core Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility with the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(Series 2) * M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A)* Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports*** * USB Type-C power delivery output: max. 5V/3A USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port, and USB_E7 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

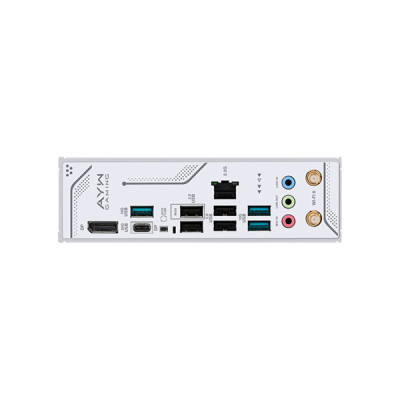

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) Header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 and PPS
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256(128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD Documentation 1 x Quick Start guide
Operating System	Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3-Year Brand Warranty (Condition applied)

Description:

ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard

ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard is highly recommended for unleashing the full potential of a newly built computer using the Intel Core Ultra Processors, Series 2. With its robust power delivery system, this is ensured by the 12+1+2+1 power stages which means stability would not be an issue for high-core-count CPUs. Stability and efficiency are enhanced by the six-layer PCB design and ProCool 8+8 pin connectors. It has been fitted with four M.2 slots, with one of them as the PCIe 5.0 slot and able to transfer up to 128Gbps, while the other three are using PCIe 4.0 at 64Gbps. The Z890 AYW GAMING WIFI W hosts several advanced cooling solutions in the way of VRM heatsinks, thermal pads, hybrid fan headers, and ASUS Fan Xpert 4.

Performance-optimizing ASUS AI Solutions features an AI advisor, AI networking II, and AI cooling II, which automatically adjust the fan for quieter operation. NPU Boost offers even better AI workflow efficiency with NPU overclocking, hence improving it by up to 24%. The AEMP III technology ensures high-speed DDR5 memory performance of up to 8000 MHz, while DIMM Fit optimizes individual memory modules for peak performance. Connectivity options include WiFi 6, PCIe 5.0, 2.5Gb Ethernet, and two USB 20Gbps Type-C ports, one of which supports 30W Power Delivery and DisplayPort video output.

Key Features of ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard:

AEMP III for enhanced DDR5 performance
WiFi 6 for stable WiFi connection and lower latency
USB PD 3.0 For up to 30W PD/PPS Fast-charge
PCIe 5.0 slots for graphics card and storage
EZ PC DIY for easier build customization
Pre-mounted I/O shield for safeguarding ports and enhancing aesthetics
Aura Sync for full RGB lighting control

This facilitates easy personalization through UEFI BIOS, TurboV Core, Aura Sync RGB, and Armoury Crate software. The PCIe Slot Q-Release, M.2 Q-Latch, and pre-mounted I/O shield will give the DIY builder more ease in building, while BIOS FlashBack lets you update the BIOS without installing a CPU or memory. The ASUS Z890 AYW GAMING WIFI W motherboard is perfect for gamers and enthusiasts when it comes to PC building, targeting the highest level of performance combined with uncompromising personalization.

Buy ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard in Bangladesh

You can buy your desired ASUS Z890 AYW GAMING WIFI W LGA1851 ATX Motherboard at Global Brand. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
