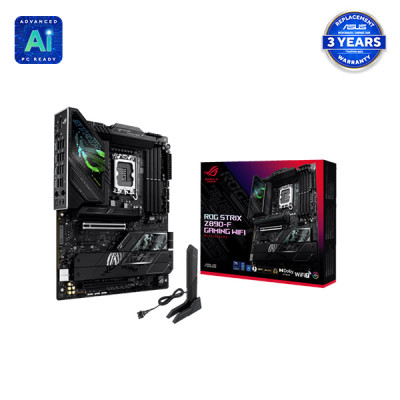

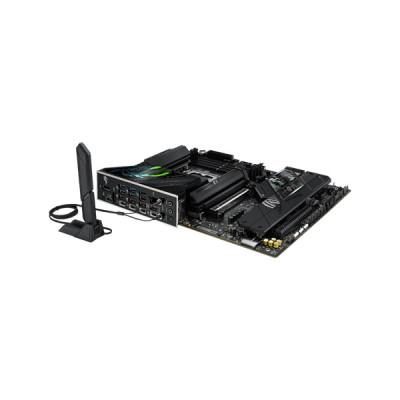

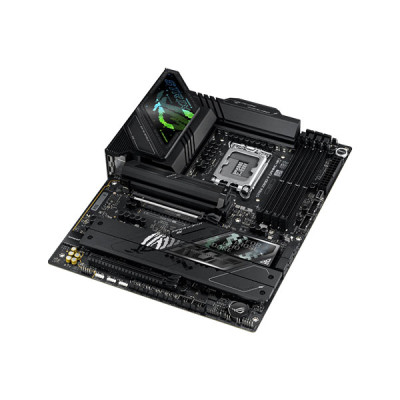

ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard

ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard

Key Features of ROG STRIX Z890-F GAMING WIFI:

Chipset: Intel Z890 Intel Core Ultra Processors(Series 2)
Socket: Intel Socket LGA1851
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty: 3-Year Brand Warranty (Condition applied)

Based on 0 reviews. - Write a review

৳67,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel Z890 Intel Core Ultra Processors(Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Warranty: 3-Year Brand Warranty (Condition applied)
Motherboard
Model	ROG STRIX Z890-F GAMING WIFI
CPU	Intel Socket LGA1851 for Intel Core Ultra Processors(Series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset	Intel Z890 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x DisplayPort 1 x HDMI port* 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. ** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. * In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time. ** VGA resolution support depends on processors' or graphic cards' resolution. *****While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel Core Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Ethernet	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require a 24H2 or later version for full functions, and Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 14 ports) 2 x Thunderbolt 4 (2 x USB Type-C) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports Front USB (Total 9 ports) 1 x USB 20Gbps connector (1 x USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF outport - Premium audio capacitors - Audio cover * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

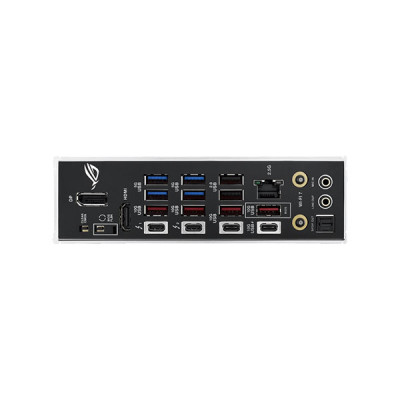

Back Panel I/O Ports	Ports 2 x Thunderbolt 4 (2 x USB Type-C) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers
Software Features	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS Wi-Fi Q-Antenna 1 x Cable ties pack 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 3 x M.2 rubber packages Documentation 1 x Quick Start guide
Operating System	Windows 11 (22H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3-Year Brand Warranty (Condition applied)

Description:

ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard

The ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard is designed for the most recent 15th-generation processors from Intel, putting the LGA 1851 socket in one's system for unrivaled performance. Gaming- and enthusiast-oriented, its advanced AI includes AI Overclocking, which automatically profiles the CPU and cooling for one-click pushes that place your system well beyond stock. Using AI Cooling II, one can balance noise and thermal efficiency with a single click for the best system performance.

AI Networking II enables seamless connectivity, optimized network performance, and support for WiFi 7 with ultra-fast speeds, plus Intel 2.5Gb Ethernet. Moreover, the overclocking of the NPU Boost significantly raises the performance of Intel's integrated NPU by up to 24% more when boosting heavy AI work, or faster performance across a wide array of applications. Regarding DDR5 memory, DDR5 Domination further supports overclocking above 8600+ MT/s; an exclusive feature of AEMP III, very handy in unlocking the true potential that state-of-the-art DDR5 memory can achieve. Furthermore, the memory modules perform even better with the Fit DIMM analysis. The DIMM Flex technology provides improved control over overclocking. For power delivery, the motherboard has 16+2+2 stages that ensure stable and reliable performance. To handle thermal dissipation, it features a VRM heatsink array, M.2 heatsinks, and an M.2 backplate. M.2 Q-Release and PCIe Q-Release provide easy hardware installation and upgrading.

Key Features of ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard:

LGA 1851 Socket, latest Intel Core Ultra Processors, series 2, are supported to ensure the highest performance for gamers and content creators.
PCIe 5.0 supports double data transfer rates compared to PCIe 4.0.
WiFi 7 & 2.5Gb Ethernet ensures ultra-fast network connectivity and stability.
DDR5 Memory Support optimized for high-speed DDR5 RAM.
Comprehensive Cooling Solutions carries multiple fan headers.

With complete support for PCIe 5.0, the ROG Strix Z890-F is engineered for quicker data transfers, armed with dual USB4 ports, Thunderbolt 4, and USB 10Gbps to satisfy the need for speed in charging and connectivity. The ROG SupremeFX audio features premium sound, elevating one's gaming experience. Aura Sync RGB lighting is customizable to let users match their system's look to a variety of effects. Armory Crate also gives you the option to easily manage your system fan speeds, and RGB lighting, and monitor system performance from one intuitive interface. The ASUS ROG STRIX Z890-F is basically the undisputed perfect choice for building high-performance rigs based on this.

Buy ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard in Bangladesh

You can buy your desired ASUS ROG STRIX Z890-F GAMING WIFI LGA1851 ATX Motherboard at Global Brand. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
