ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard

ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard

Key Features of ROG STRIX X870E-E GAMING WIFI:

Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, AI Overclocking, DDR5, PCIe Gen 5 Support, WIFI 7, USB 4

Based on 0 reviews. - Write a review

৳82,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, AI Overclocking, DDR5, PCIe Gen 5 Support, WIFI 7, USB 4
Motherboard
Model	ROG STRIX X870E-E GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870E
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 Series Processors, 8400+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics	1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs* * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 4K@60Hz as specified in HDMI 2.1. * Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)* AMD X870E Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU. * M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with S
Ethernet	1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. Bluetooth v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
USB	Rear USB (Total 13 ports) 2 x USB4 (40Gbps) ports(2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge)** 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports * USB Type-C power delivery output: 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF outport - Premium audio capacitors - Audio cover * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

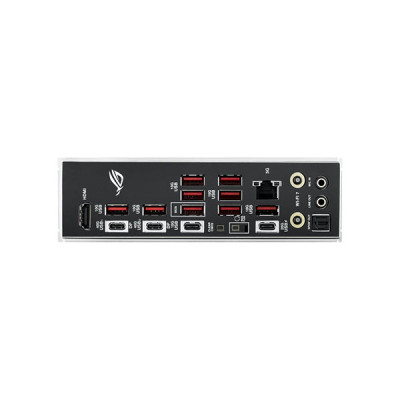

Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C with up to 30W PD Fast-charge) 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over Voltage jumper 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers
Software Features	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Q-Latch package 2 x M.2 Q-Slides 1 x ROG key chain 1 x ROG Strix stickers 5 x M.2 Rubbers Documentation 1 x Quick start guide
Operating System	Windows 11 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard

ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard is built to maximize the power of AMD Ryzen 9000 Series processors. Designed for high performance and efficient setup, it features PCIe 5.0 support, AI Overclocking, AI Cooling II, AI Networking II, and AEMP technology, ensuring streamlined configuration and enhanced performance. With dual USB4 Type-C ports and WiFi 7 paired with Realtek 5Gb Ethernet, this motherboard delivers advanced connectivity for gaming and professional use. The AI Overclocking technology profiles the CPU and cooling system, offering optimal configurations for powerful system performance. Meanwhile, AI Networking II continuously adjusts network settings, providing reliable connectivity and fully utilizing WiFi 7 speeds.

Built to support the latest DDR5 memory, the ASUS ROG STRIX X870E-E includes AMD EXtended Profiles for Overclocking (EXPO) and ASUS Enhanced Memory Profile (AEMP) for PMIC-restricted memory, making it an ideal choice for high-speed, enthusiast-grade kits. Full PCIe 5.0 compatibility provides the fastest data transfer rates, supporting top-tier SSDs and GPUs for demanding applications. For seamless connectivity, the motherboard includes dual USB4 ports supporting up to 20Gbps, making data transfers fast and efficient. Additionally, Aura Sync lighting technology enables complete control over RGB lighting, syncing effects across compatible ROG components like graphics cards, monitors, keyboards, and mice for a unified visual experience.

ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard also includes large heatsinks, effectively cooling M.2 drives under heavy workloads, and enhancing system reliability. It is backed by a 3-year replacement warranty (terms apply), ensuring peace of mind for builders and gamers. The ASUS ROG STRIX X870E-E Gaming WiFi offers a well-rounded solution for advanced builds, providing power, speed, and customizable aesthetics to meet the demands of modern gaming and professional environments.

Buy ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
