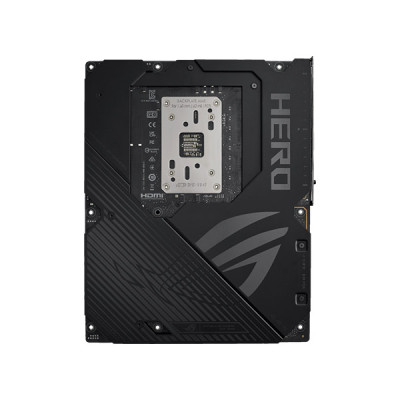

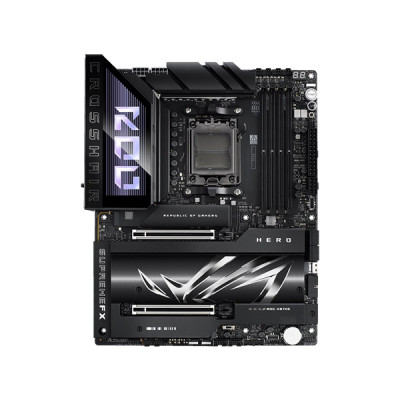

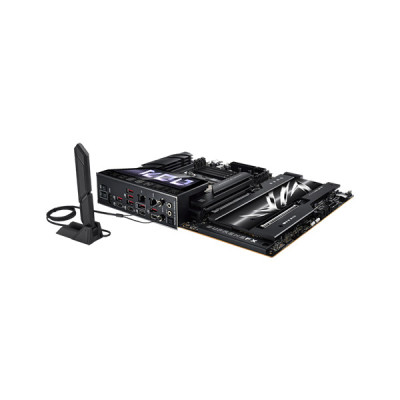

ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard

ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard

Key Features of ROG CROSSHAIR X870E HERO:

Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max.192GB, DDR5
Storage: Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports
Features: DDR5 Memory. Extensive PCIe Gen 5, WIFI 7, USB4, AI Cooling II

Based on 0 reviews. - Write a review

৳105,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max.192GB, DDR5
attr -Key Feature 4 >	Storage: Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: DDR5 Memory. Extensive PCIe Gen 5, WIFI 7, USB4, AI Cooling II
Motherboard
Model	ROG CROSSHAIR X870E HERO
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870E
Memory	4 x DIMM slots, max.192GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8600+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) NitroPath DRAM Technology ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display outputs** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. VGA resolution support depends on processors' or graphic cards' resolution. Supports 4K@60Hz as specified in HDMI 2.1. *Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) * When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8. * When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4. ** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled. AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
Storage	Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) SlimSAS slot supports PCIe 4.0 x4 mode. 4 x SATA 6Gb/s ports When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled. *When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) Front USB (Total 10 ports) 1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

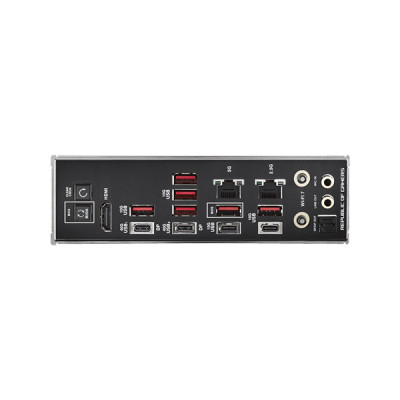

Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper
Special Features	Extreme OC Kit - FlexKey button - LN2 Mode - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) - Polymo Lighting II ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync -Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard

ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard is designed for powerful PC performance, offering strong power delivery, advanced thermal management, and next-generation connectivity. Built to support AMD Ryzen 9000 Series processors, this motherboard includes full PCIE 5.0 and DDR5 compatibility, letting you push your system’s limits. Its dark design with metallic finishes, nickel-plated surfaces, and sleek lines brings a modern look, while the Polymo Lighting II effect adds dynamic RGB lighting to the ROG logo, enhancing the board’s visual appeal. With AI Networking II, ASUS ROG CROSSHAIR X870E HERO optimizes network performance in real-time, providing seamless connectivity and unleashing the power of WiFi 7*. Dynamic OC Switcher also helps you get the best performance by allowing you to set thresholds for current and temperature, so it can automatically switch between a manual overclock for intensive tasks and Precision Boost Overdrive for single-threaded workloads. Its latest Overclocking Load Guard includes enhanced protections against current surges to prevent system crashes during overclocking.

This board dominates in DDR5 support, pushing speeds beyond 8 GT/s thanks to improved signal routing, ideal for enthusiasts looking to harness top-tier memory performance. Embracing PCIE 5.0, the ROG Crosshair X870E Hero also supports the fastest SSDs and graphics cards, ensuring unrestricted bandwidth. The renowned ROG UEFI BIOS simplifies configuration, offering beginners and advanced users tools to tweak their systems. BIOS Q-Dashboard provides an intuitive layout, visually mapping hardware connections and BIOS settings for easy setup and adjustments.

ASUS ROG CROSSHAIR X870E HERO further amplifies your gaming style with Aura Sync, which unifies lighting effects across compatible ROG devices such as graphics cards, monitors, keyboards, and mice. Transform your setup with synchronized lighting for a unified and immersive gaming atmosphere. With premium features and strong performance, the ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard is ready to handle intense gaming and complex tasks, delivering reliable speed, connectivity, and style. ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard has a 3-year replacement warranty (*Terms and Conditions Applied).

Buy ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS ROG CROSSHAIR X870E HERO AM5 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You can buy online and enjoy free home delivery, or you can visit any of our branches near you.
