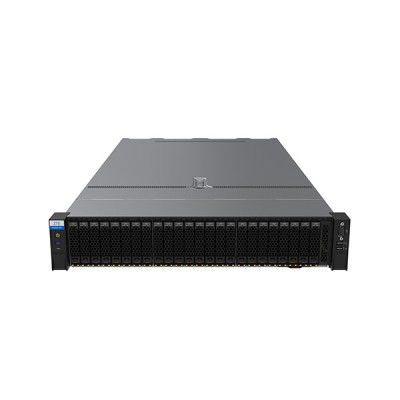

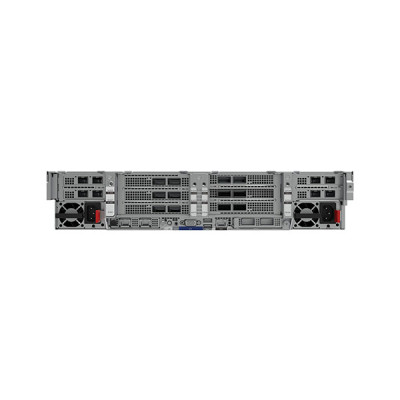

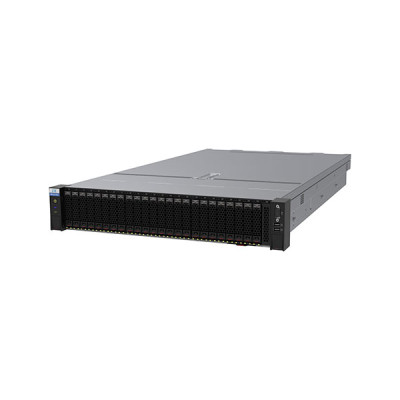

ZTE R5300 G5 Rack Server
ZTE R5300 G5 Rack Server
ZTE R5300 G5 Rack Server

ZTE R5300 G5 Rack Server

Key Features of R5300 G5:
Processor: Intel-Xeon Gold-5416S-16core-2.0GHz-150W
RAM: 128GB (4x32GB)-DDR5-RDIMM-4800-2Rank-16Gb die-Samsung
HDD: 15.36TB (4 x 3.84TB) SATA SSD-2.5"-6Gb/s-Read-write hybrid-Samsung PM897-2.5-inch hard disk box
Number of Bays: 8 Bay SFF straight-through type EA1: Eight front SAS/SATA SFFs
Power Supply: 1+1 hot/swappable 1300W titanium AC power module redundant power supplies with 10A AC power cable.

CALL FOR DETAILS: +8801969633072
ZTE R5300 G5 Rack Server
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Processor: Intel-Xeon Gold-5416S-16core-2.0GHz-150W
attr -Key Feature 2 > RAM: 128GB (4x32GB)-DDR5-RDIMM-4800-2Rank-16Gb die-Samsung
attr -Key Feature 3 > HDD: 15.36TB (4 x 3.84TB) SATA SSD-2.5"-6Gb/s-Read-write hybrid-Samsung PM897-2.5-inch hard disk box
attr -Key Feature 4 > Number of Bays: 8 Bay SFF straight-through type EA1: Eight front SAS/SATA SFFs
attr -Key Feature 5 > Power Supply: 1+1 hot/swappable 1300W titanium AC power module redundant power supplies with 10A AC power cable.
Call Info >

CALL FOR DETAILS: +8801969633072
ZTE Server
Brand ZTE
Model R5300 G5
Form Factor 2U rack server
Processor CPU-Intel-Xeon Gold-5416S-16core-2.0GHz-150W
No of Processors 2 (Two) 4th-generation scalable processors
Chipset Intel C741
Interconnection bus Provides four UPI interconnection links. The maximum rate of a single link is 20GT/s.
Memory 128GB (4x32GB)-DDR5-RDIMM-4800-2Rank-16Gb die-Samsung
Supports 32 DDR5 memory slots with a maximum rate of 5,600MT/s
Hard Disk Controller PCIE SAS RAID Card-ZTE RS241_V2-16i-PM8236-2G Cache- RAID0,1,10,5,6,50,60-12Gb/s; RM241X/RS24X/RM344/RM345 RAID card-Cache
Local Storage 8 Bay SFF straight-through type EA1: Eight front SAS/SATA SFFs
15.36TB (4 x 3.84TB) SATA SSD-2.5"-6Gb/s-Read-write hybrid-Samsung PM897-2.5-inch hard disk box
960GB (2 x 480GB)-SATA SSD-2.5"-6Gb/s-Intensive read type-Samsung PM893- 2.5-inch hard disk box
Network Resources PCIE NIC-X710-Intel-2x10G-RJ45-PCIe3.0x8
PCIe Slots Supporting up to 20 PCIe expansion slots: 2 OCP dedicated slots, 18 PCIe standard slots
Display Integrated video card, supporting optional PCIe standard video cards
External Equipment Interface Five USB interfaces (two rear USB3.0 interfaces, one front USB3.0 interface, one internal USB2.0 interface, one front USB2.0 interface)
Two VGA interfaces (one for front end and one back for end)
One serial port
Equipment Management Interface 1 independent GE management network interface
Power Supply 1+1 hot/swappable 1300W titanium AC power module redundant power supplies with 10A AC power cable.
Compatible OS Compatible with mainstream server operating systems: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Enterprise Linux, Vmware ESXi, Ubuntu
Fan Four groups of high-efficiency fans, N+1 redundancy, and intelligent heat dissipation system
Environmental Conditions Operating temperature: +5 ºC to +45 ºC (depending on the configuration, refer to the technical document for details)
Storage temperature:-40 ºC to +65 ºC
Operating humidity: 8% – 90% RH, no condensation
Transportation and storage humidity: 5% – 95% RH, no condensation
Altitude: ≤ 3,000m. When the altitude is 900m higher, the operating temperature is reduced by 1° C for every 300m higher. If the altitude is more than 3,000m, you cannot configure mechanical hard disks.
Dimensions 432mm x 87.6mm x 780mm (W x H x D), excluding flanges and guide rails Standard 19-inch rack (>=1m deep)
Weight with Full Configuration The equipment with the maximum configuration is about 40kg (excluding guide rails)
Certificate CE, CCC, Energy Star
Systems Management ZTE-Uniview - iSAC-Integrated Server Administrator Controller
Warranty 3 (Three) Years
