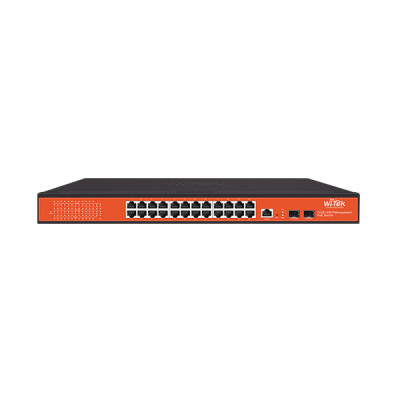

Wi-Tek WI-PMS326GF 24-Port Gigabit Switch

Key Features of WI-PMS326GF:
24 Gigabit PoE ports and 2 Gigabit SFP Slots
24 802.3af/at PoE ports with a total power supply of 400W
Support IGMP Snooping, Link Aggregation, Loop Prevention
QoS and IGMP snooping function optimize voice, video applications
Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
Wi-Tek WI-PMS326GF 24-Port Gigabit Switch
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 24 Gigabit PoE ports and 2 Gigabit SFP Slots
attr -Key Feature 2 > 24 802.3af/at PoE ports with a total power supply of 400W
attr -Key Feature 3 > Support IGMP Snooping, Link Aggregation, Loop Prevention
attr -Key Feature 4 > QoS and IGMP snooping function optimize voice, video applications
attr -Key Feature 5 > Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
Call Info >
Wi-Tek Switch
Interface 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 1000Mbps SFP Slots 1 Console Port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T:
UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF
1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
Fan Quantity 2 Fan
Power Budget 400W
Internal Power Supply AC 110~240V 50/60HZ
PoEPorts (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port1- Port24
Power Supply: 400W
Exchange Capacity 52G
Packet Forwarding Rate 38.7Mpps
Jumbo Frame 10240 Bytes
Dimensions Product Size： 440mm* 220mm*44mm（L*W*H）
Quality of Service Support 802.1p CoS/DSCP priority Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
L2 Features IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP Port isolation
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based VLAN Management VLAN configuration
Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID;
Time Range Based
Security IP-MAC-Port-VID Binding IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN DoS Defence Dynamic ARP inspection (DAI) SSH v1/v2
SSL v2/v3/TLSv1 Port Security
Broadcast/Multicast/Unknown- unicast Storm Control
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring Port Mirroring
Time Setting: SNTP Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS
Certification CE, FCC, RoHS
Package Contents POE Switch Electric Line
Guide Book/Warranty Card
Environment Working Temperature：-10℃～55℃
Storage temperature ：-40℃～70℃
Working Humidity ： 10%～90% RH
non-condensing Storage Humidity： 5%～90% RH non- condensing
