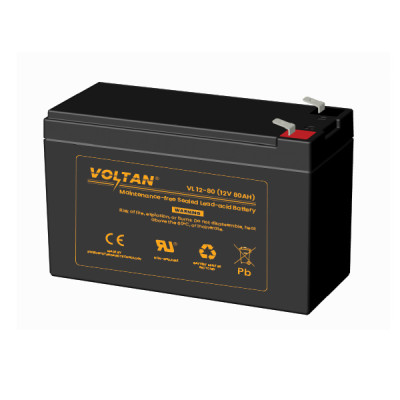

Voltan 12V 80AH UPS Battery

Key Features of 2V 80AH:

Brand: Voltan
Capacity: 80AH
Nominal Voltage: 12V
Internal Resistance: Approx. 4mΩ
Warranty: 1-Year Warranty
CALL FOR DETAILS: 01958510719, 01969633055

Based on 0 reviews. - Write a review

৳21,500.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	Brand: Voltan
attr -Key Feature 2 >	Capacity: 80AH
attr -Key Feature 3 >	Nominal Voltage: 12V
attr -Key Feature 4 >	Internal Resistance: Approx. 4mΩ
attr -Key Feature 5 >	Warranty: 1-Year Warranty
Call Info >	CALL FOR DETAILS: 01958510719, 01969633055
Voltan Battery
Nominal Voltage	12 V
Capacity (25oC)	20HR (10.5V): 80Ah 10HR (10.5V): 70Ah 1HR (9.60V): 49.6Ah
Dimension	Length: 260 ± 2mm (10.24inch) Width: 168 2mm (6.58inch) Height: 209 2mm (8.22inch) Total Height: T11: 210 ± 2mm (8.25inch)
Approx. Weight	22kgs (48.5 lbs)±4%
Terminal type	T11
Internal resistance (Fully charged, 25oC)	Approx. 4mΩ
Capacity affected by Temperature (20HR)	40° C: 102% 25° C: 100% 0° C: 85% -15° C: 65%
Self-Discharge (25oC)	3 month: Remaining Capacity: 91% 6 month: Remaining Capacity: 82% 12 month: Remaining Capacity: 65%
Nominal Operating Temperature	25° C±3° C (77° F±5° F)
Operating Temperature Range	Discharge: -15o C~50o C (5o F~122o F) Charge: -10o C~50o C (14o F~122o F) Storage: -20o C~50o C (-4o F~122o F)
Float Charging Voltage (25oC)	13.60 to 13.80V Temperature compensation: -18mV/o C
Cyclic Charging Voltage (25oC)	14.50 to 14.90V Temperature compensation: -30mV/° C
Maximum Charging Current	2.1A
Terminal Material	Copper
Maximum Discharge Current	105A(5 sec.)
Designed Floating Life (25oC)	5 years+
Warranty	1-Year Warranty
