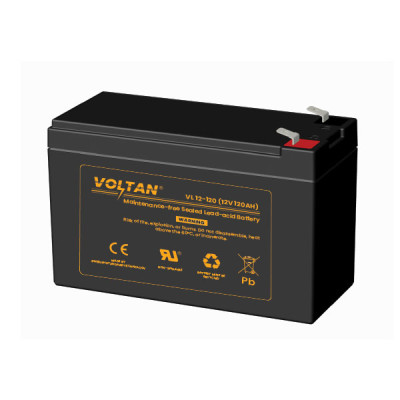

Voltan 12V 120AH UPS Battery

Key Features of 12V 120AH:

Brand: Voltan
Capacity: 120AH)
Nominal Voltage: 12V
Internal Resistance: Approx. 4mΩ
Warranty: 1 Year Warranty
CALL FOR DETAILS: 01958510719, 01969633055

Based on 0 reviews. - Write a review

৳30,000.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	Brand: Voltan
attr -Key Feature 2 >	Capacity: 120AH)
attr -Key Feature 3 >	Nominal Voltage: 12V
attr -Key Feature 4 >	Internal Resistance: Approx. 4mΩ
attr -Key Feature 5 >	Warranty: 1 Year Warranty
Call Info >	CALL FOR DETAILS: 01958510719, 01969633055
Voltan Battery
Nominal Voltage	12 V
Capacity (25oC)	10HR(10.8V): 120Ah 5HR(10.5V): 105Ah 1HR(9.60V): 74.4Ah
Dimension	Length: 410±2mm (16.1inch) Width: 180±2mm (7.08inch) Height: 240±2mm (9.44inch) Total Height: 240±2mm (9.44inch)
Approx. Weight	34.5kg (76.05bs)±4%
Terminal type	T5/T11
Internal resistance (Fully charged, 25oC)	Approx. 4mΩ
Capacity Affected by Temperature (10HR)	40oC: 102% 25oC: 100% 0oC: 85% -15oC: 65%
Self-Discharge (25oC)	3 months: Remaining Capacity: 91% 6 months: Remaining Capacity: 82% 12 months: Remaining Capacity: 65%
Nominal Operating Temperature	25oC±3oC (77oF±5oF)
Operating Temperature Range	Discharge: -15oC~50oC(5oF~122oF) Charge: -10oC~50oC(14oF~122oF) Storage: -20oC~50oC(-4oF~122oF)
Float Charging Voltage (25oC)	13.60 to 13.80V Temperature compensation: -18mV/oC
Cyclic Charging Voltage (25oC)	14.50 to 14.90V Temperature compensation: -30mV/oC
Maximum Charging Current	36A
Terminal Material	Copper
Maximum Discharge Current	960A(5 sec.)
Designed Floating Life (25oC)	5 years+
Warranty	1 Year Warranty
