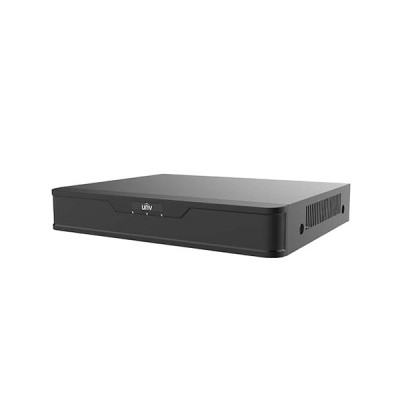

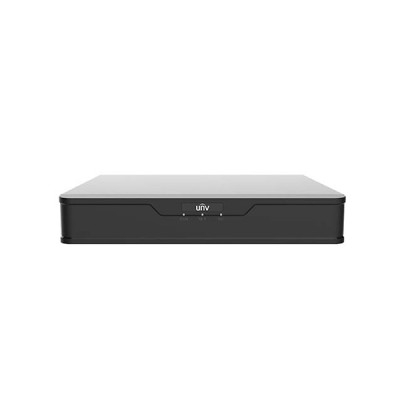

Uniview XVR301-16G3 16 Channel 1 SATA XVR

Uniview XVR301-16G3 16 Channel 1 SATA XVR

Key Features of XVR301-16G3:

Channel: 16-Channel
Storage: Up to 8TB for each HDD
Output Port: HDMI, VGA & Audio Port
Input Port: 1x RJ45, 2x USB2.0, 1x RS485
Outgoing Bandwidth: 64Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 16-Channel
attr -Key Feature 2 >	Storage: Up to 8TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI, VGA & Audio Port
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB2.0, 1x RS485
attr -Key Feature 5 >	Outgoing Bandwidth: 64Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	XVR301-16G3
Type	16 Channel 1 SATA XVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
Video/Audio Input
Analog Video Input	16-ch, BNC
IP Video Input	8-ch(up to 16-ch after analog camera conversion)
Supported Analog Camera Types	Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
Audio Input	1-ch, RCA
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA
Live view display	HDMI/VGA: 1/4/6/8/9/16/25
Synchronous Playback	HD:8-ch SD:16-ch
Snapshot
FTP/Schedule/Event Snapshot	Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution
Encoding
Recording Resolution	5MP Lite/4MP Lite /1080P Lite/720P/D1/CIF
Recording Frame Rate	Main stream: 5MP Lite@6fps \| 4MP Lite@8fps \| 1080P Lite@12fps \| 720P@12fps Sub stream: D1@6fps \| D1@8fps \| D1@12fps \| D1@12fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding
Capability	Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
Network
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth	40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth	64Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Ultra Motion Detection(UMD) for analog:8-ch
VCA Search	Behavior Search
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Serial Interface	1 x RS485
Power
Power	12V DC Power Consumption: ≤ 10 W (without HDD)
Operating Environment
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Physical Specification
Dimensions	260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Weight	≤1.1 Kg ( 2.42lb )
Additional
Certification	UL CE FCC RoHS WEEE
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview XVR301-16G3 16 Channel 1 SATA XVR

Uniview XVR301-16G3 is a robust 16-channel XVR system designed for practical and efficient surveillance. With 16 analog video inputs via BNC connectors and support for 8 IP video inputs, expandable to 16 after analog camera conversion, this XVR offers comprehensive coverage for security monitoring. The audio features, including G.711U compression, 1 audio input, and 1 audio output via RCA, enhance the overall functionality of the system. Display options include VGA and HDMI outputs with resolutions like 1920x1080/60Hz, ensuring clear and detailed visuals. The recording resolution options comprise 5MP Lite, 4MP Lite, 1080P Lite, 720P, D1, and CIF, catering to various recording needs. The main stream maintains optimal video quality with frame rates such as 5MP Lite at 6fps, 4MP Lite at 8fps, 1080P Lite at 12fps, and 720P at 12fps. The substream operates at D1 with frame rates of 6fps, 8fps, 12fps, and 12fps.

Audio features include an 8KHz sample rate and 16-bit per channel, with a bit rate of 64Kbps per channel. The system ensures a steady incoming bandwidth of 40Mbps, expanding to 56Mbps after converting all analog channels. With an outgoing bandwidth of 64Mbps, it supports smooth data transmission. Accommodating up to 128 remote users and backed by a 1-year brand warranty, the Uniview XVR301-16G3 offers reliability and simplicity for your surveillance requirements.
