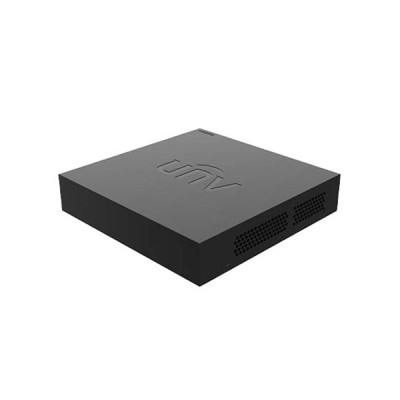

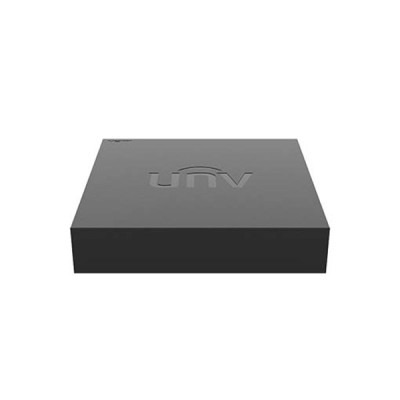

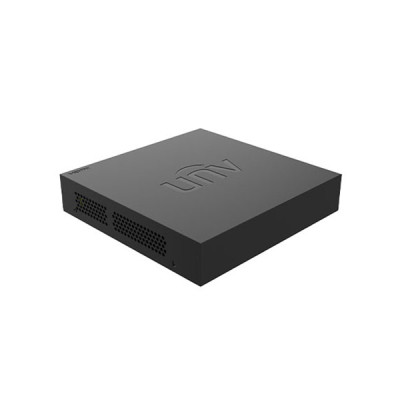

Uniview XVR301-04F 4-Channel 1 SATA XVR

Key Features of XVR301-04F:

Channel: 4-Channel
Storage: Up to 6TB for each HDD
Output Port: HDMI & VGA
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 48Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 4-Channel
attr -Key Feature 2 >	Storage: Up to 6TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 >	Outgoing Bandwidth: 48Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	XVR301-04F
Type	4-Channel 1 SATA XVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
Video/Audio Input
Analog Video Input	4-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 6MP
Supported Analog Camera Types	Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Live view display	HDMI/VGA: 1/4/6/8/9
Synchronous Playback	HD:4-ch SD:4-ch
Encoding
Recording Resolution	1080P Lite/720P/D1
Recording Frame Rate	Main stream: 1080P Lite@25fps \| 720P@30fps Sub stream: D1@25fps \| D1@30fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding
Capability	Analog:4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth	24Mbps (Up to 32Mbps after all-analog channel conversion)
Outgoing Bandwidth	48Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Power
Power	12V DC Power Consumption: ≤ 10 W( without HDD )
Operating Environment
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Physical Specification
Dimensions	190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")
Weight	≤0.6 Kg ( 1.32lb )
Additional
Certification	UL/CE/FCC /RoHS /WEEE
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview XVR301-04F 4-Channel 1 SATA XVR

Uniview XVR301-04F is a reliable 4-channel XVR system designed for efficient surveillance. With a SATA interface supporting up to 6TB per HDD, it ensures ample storage capacity for your video footage. The unit accommodates 4 analog video inputs via BNC connectors and supports 2 IP video inputs, each with a capacity of up to 6MP. Display options include VGA and HDMI outputs with resolutions like 1920x1080p/60Hz, providing clear visuals. The recording resolution options include 1080P Lite, 720P, and D1, while the frame rates maintain optimal video quality—1080P Lite at 25fps and 720P at 30fps for the main stream, and D1 at 25fps and 30fps for the substream.

The system ensures a steady incoming bandwidth of 24Mbps, expanding to 32Mbps after converting all analog channels. With an outgoing bandwidth of 48Mbps, it supports smooth data transmission. Additionally, the Uniview XVR301-04F comes with a 1-year brand warranty, ensuring peace of mind and reliability for your surveillance needs. This XVR is a practical solution for those seeking a robust and high-performance video recording system without unnecessary frills.
