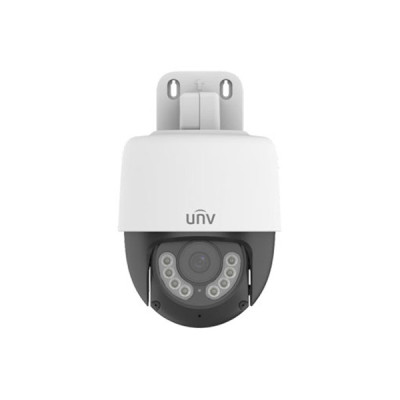

Uniview UAC-P112-AF40-W 2MP ColorHunter HD Fixed PT Analog Camera

Key Features of UAC-P112-AF40-W:

2MP high-quality imaging
TVI/AHD/CVI/CVBS
Supports white light illumination, 24/7 color images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	2MP high-quality imaging
attr -Key Feature 2 >	TVI/AHD/CVI/CVBS
attr -Key Feature 3 >	Supports white light illumination, 24/7 color images
attr -Key Feature 4 >	Supports 180° horizontal flip, 180° vertical flip
attr -Key Feature 5 >	OSD configuration menu, easy to operate
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	UAC-P112-AF40-W
Type	2MP ColorHunter HD Fixed PT Analog Camera
Sensor
Pixel	2MP
Size	1/2.9"
Minimum illumination	0.005 lux (F1.6, AGC ON) 0 lux (white light on)
Lens
Lens	4.0mm
Lens mount	M12
Angle of view	H: 83.8° V: 42.7° D: 100.1°
Illuminator
Illuminator	Eight white-light illuminators
Illumination distance	30m
Lifetime	≥20,000 hours
Video
Resolution	1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame rate	TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	24/7 color images
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default) and manual
WDR	DWDR
Flip	Supports 180° horizontal flip, 180° vertical flip
Defog	Digital Defog
Pan & Tilt
Pan Range/Speed	Pan range: 0° to 345° Pan speed: 1° to 40°/s
Tilt Range/Speed	Tilt range: 0° to 90° Tilt speed: 1° to 30°/s
Presets	32
Control Mode	Coaxial control, RS485 control
Audio
Microphone	Built-in Mic
Camera Audio	TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Interface
Power	5.5mm power interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
RS485	1* RS485, supports 9600bps, 4800bps, 2400bps, 1200bps
Power
Power	DC 12V (±25%), with reverse polarity protection. Max 8.5W
Operating Environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤95% (RH, non-condensing)
Surge Protection	4kV for power and video output interfaces, 6kV for RS485 interface
Ingress Protection	IP66
Physical Specification
Dimensions	Φ118mm190mm (diameterheight)
Weight	477g (1.05lb)
Body Material	Plastic
Additional
Mount	Supplied bracket for wall or pendent mount; optional bracket and junction box (sold separately) for pole mount and corner mount
Certification	CB, CE, FCC
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview UAC-P112-AF40-W 2MP ColorHunter HD Fixed PT Analog Camera

Uniview UAC-P112-AF40-W is a 2MP ColorHunter HD fixed PT analog camera with a high-performance 1/2.9-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference megapixel HD video transmission without time delay. It supports audio input, synchronous transmission of audio and video, and provides 24/7 color images. The pan and tilt design allows the camera to rotate horizontally and vertically to achieve a wide range of monitoring.

Features of Uniview UAC-P112-AF40-W 2MP ColorHunter HD Fixed PT Analog Camera:
