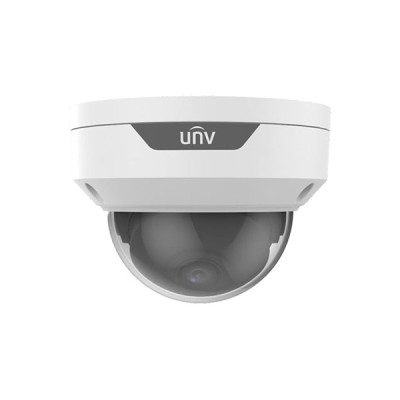

image of Uniview UAC-D115-F28 5MP HD IR Fixed Dome Analog Camera with Spec and Price in BDT

Uniview UAC-D115-F28 5MP HD IR Fixed Dome Analog Camera

Key Features of UAC-D115-F28:
High-quality imaging with 2MP resolution
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
Supports 180° horizontal flip, 180° vertical flip
IP67 waterproof and dustproof design, high reliability

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Uniview UAC-D115-F28 5MP HD IR Fixed Dome Analog Camera
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > High-quality imaging with 2MP resolution
attr -Key Feature 2 > TVI/AHD/CVI/CVBS
attr -Key Feature 3 > Supports IR-cut filter with auto-switch (ICR)
attr -Key Feature 4 > Supports 180° horizontal flip, 180° vertical flip
attr -Key Feature 5 > IP67 waterproof and dustproof design, high reliability
Call Info >

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

General
Brand Uniview
Model UAC-D115-F28
Type 5MP HD IR Fixed Dome Analog Camera
Sensor
Pixel 5MP
Size 1/2.7"
Minimum illumination 0.02 lux (F2.0, AGC ON)
0 lux (IR ON)
Lens
Lens 2.8mm
Lens mount M12
Angle of view H: 102.2° V: 53.9° D: 124.8°
Illuminator
Illuminator One IR illuminator
Illumination distance 20m
Lifetime ≥60,000 hours
Video
Resolution 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame rate TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC
Shutter Time PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure Mode Four modes: Global (default), BLC, HLC, DWDR
Day/Night Three modes: Auto (default), Day, Night
Digital Noise Reduction 2D
White Balance Two modes: Auto (default), Manual
WDR DWDR
Smart IR Support
Flip Supports 180° horizontal flip, 180° vertical flip
Interface
Power 5.5mm power interface
Video Output BNC, supports TVI/AHD/CVI/CVBS
Power
Power DC 12V (±25%), with reverse polarity protection, Max 3.4W
Operating Environment
Temperature -30°C to 60°C (-22°F to 140°F)
Humidity ≤95% (RH, non-condensing)
Surge Protection 4kV
Ingress Protection IP67
Physical Specification
Dimensions Φ111mm*83mm (diameter*height)
Weight 233g(0.51lb)
Body Material Plastic
Additional
Mount Surface mount (default), optional backbox, wall/pole/corner/tilted/pendant mount bracket
Certification CE, FCC
Warranty
Warranty Details 1-Year Brand Warranty
Description:

Uniview UAC-D115-F28 5MP HD IR Fixed Dome Analog Camera

Uniview UAC-D115-F28 5MP HD IR Fixed Dome Analog Camera offers a dependable solution for comprehensive surveillance without compromising on quality. Delivering high-quality imaging with a 5MP resolution, this camera ensures precision in monitoring applications. Its compatibility with TVI/AHD/CVI/CVBS systems allows for seamless integration into diverse surveillance setups, enhancing its versatility. Equipped with an IR-cut filter featuring auto-switch (ICR) and supporting a 180° horizontal and vertical flip, this camera adapts to varying lighting conditions and provides flexible viewing angles. The OSD configuration menu, available in 11 languages, ensures user-friendly operation and customization to meet specific surveillance needs.

Designed for durability, the IP67 waterproof and dustproof rating guarantees reliability, making it suitable for outdoor installations in challenging environments. Backed by a 1-year brand warranty, this camera not only offers advanced features but also assures longevity and performance, providing peace of mind for your security infrastructure. Choose the Uniview UAC-D115-F28 for its practicality, ease of use, and robust design. This fixed dome analog camera is a reliable choice for those seeking effective surveillance with high-quality imaging and dependable performance.
