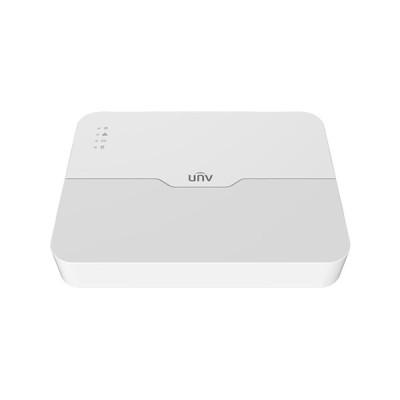

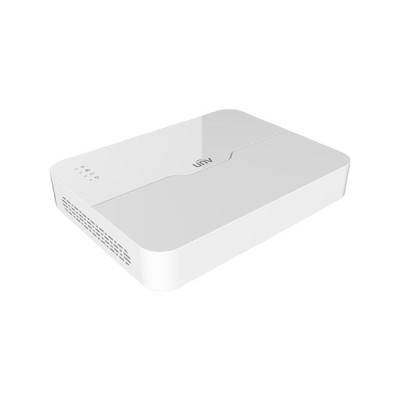

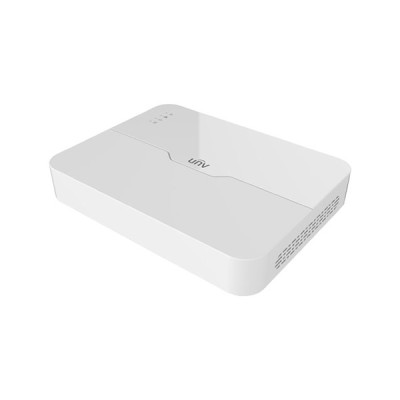

Uniview NVR301-08LS3-P8 8 Channel 1 SATA NVR
Uniview NVR301-08LS3-P8 8 Channel 1 SATA NVR
Uniview NVR301-08LS3-P8 8 Channel 1 SATA NVR

Uniview NVR301-08LS3-P8 8 Channel 1 SATA NVR

Key Features of NVR301-08LS3-P8:
Channel: 8-Channel
Storage: Up to 6TB for each disk
Output Port: HDMI & VGA
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 48Mbps

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Uniview NVR301-08LS3-P8 8 Channel 1 SATA NVR
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Channel: 8-Channel
attr -Key Feature 2 > Storage: Up to 6TB for each disk
attr -Key Feature 3 > Output Port: HDMI & VGA
attr -Key Feature 4 > Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 > Outgoing Bandwidth: 48Mbps
Call Info >

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

General
Brand Uniview
Model NVR301-08LS3-P8
Type 8 Channel 1 SATA NVR
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each disk
Video/Audio Input
IP Video Input 8-ch
Video/Audio Output
VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Live view display 1/4/6/8/9
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
Snapshot
FTP/Schedule/Event Snapshot 1-ch snapshot, up to D1 resolution
Decoding
Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth 64Mbps
Outgoing Bandwidth 48Mbps
Remote Users 128
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search Face Search, Behavior Search
Extras Smart Intrusion Prevention (SIP), UMD by Camera

Total 4-ch
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
RS232 N/A
RS485 N/A
Alarm In N/A
Alarm Out N/A
PoE
Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 75W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
Power
Power 52V DC
Power Consumption: ≤9 W (without HDD)
Operating Environment
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions 270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Weight ≤0.8 kg (1.76 lb)
Additional
Certification Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
Warranty
Warranty Details 1-Year Brand Warranty
Description:

Uniview NVR301-08LS3-P8 8 Channel 1 SATA NVR

Uniview NVR301-08LS3-P8 is a reliable 8-channel NVR system designed for efficient video surveillance without unnecessary complexity. With a single SATA interface supporting up to 6TB for each disk, it ensures ample storage capacity for extensive video recordings. The NVR accommodates 8-channel IP video input, providing comprehensive coverage for your security needs. Display options include VGA and HDMI outputs with resolutions like 1920x1080/60Hz and 4K(3840x2160)/30Hz, delivering clear and detailed visuals. The recording resolution options cover a range from 4K to CIF, catering to various recording needs. It ensures a robust incoming bandwidth of 64Mbps and outgoing bandwidth of 48Mbps, facilitating smooth data transmission.

Equipped with general alarms including motion detection, tampering, human body detection, video loss, and alarm input, it enhances security monitoring. The alert alarm system notifies users about events such as IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and abnormal recording/snapshot. With support for up to 128 remote users and backed by a 1-year brand warranty, the Uniview NVR301-08LS3-P8 provides a dependable and user-friendly solution for your video surveillance requirements.
