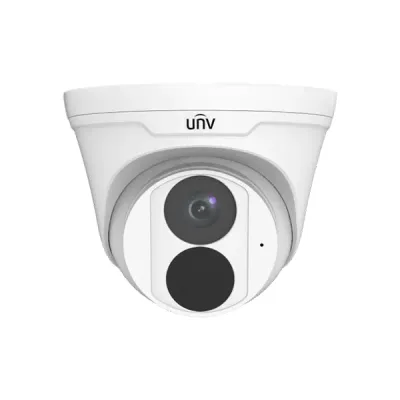

image of Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera with Spec and Price in BDT

Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera

Key Features of IPC3613LB-AF28(40)K-G:
High quality image with 3MP, 1/2.7"CMOS sensor
3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
Smart IR, up to 30m (98ft) IR distance
Built-in Mic
Supports 128 GB microSD card

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > High quality image with 3MP, 1/2.7"CMOS sensor
attr -Key Feature 2 > 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps
attr -Key Feature 3 > Smart IR, up to 30m (98ft) IR distance
attr -Key Feature 4 > Built-in Mic
attr -Key Feature 5 > Supports 128 GB microSD card
Call Info >

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
Uniview CCTV Camera
Camera Sensor: 1/2.7", 3.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.01 lux ( F2.0, AGC ON) 0 lux with IR
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0°~360°; Tilt: 0°~80°; Rotate: 0°~360°
WDR: 120dB
S/N: >52dB
Lens Lens Type: 4.0mm@F2.0
Iris: Fixed
Field of View (H): 91.2°
Field of View (V): 47.9°
Field of View (D): 95.9°
DORI DORI Distance:
Lens (mm): 4.0
Detect (m): 60.0
Observe (m): 24.0
Recognize (m): 12.0
Identify (m): 6.0
Illuminator IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate:
Main Stream: 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate: 128 Kbps~6144 kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams
Image White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital NoiseReduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC: Support
BLC: Support
Defog: Digital Defog
Audio Audio Compression: G.711A, G.711U
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8 KHz
Events Basic Detection: Cross line, intrusion(based on human body detection),motion detection, tampering alarm, audio detection
General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Storage Edge Storage: Micro SD, up to 128GB
Network Storage: ANR, NAS(NFS)
Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client: EZStation, EZView, EZLive

Web Browser:
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A
Certification EMC: CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Safety:
CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (Ø x H): Φ118 x 96mm (Φ4.6” x 3.8”)
Weight: 0.30kg (0.66lb)
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: N/A
Warranty 1-Year Brand Warranty
Description:

Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera

Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera is a reliable indoor and outdoor IP camera with a 3MP 1/2.7" CMOS sensor that records video in 2304×1296 resolution at up to 30fps. It supports Ultra 265, H.265, H.264, and MJPEG video formats for better streaming and lower storage use. This camera comes with Smart IR night vision up to 30 meters, a built-in mic, and supports up to 128GB MicroSD card. It features 9:16 corridor mode, 120dB WDR, and 2D/3D noise reduction for clear images in both day and night. You can set up to 4 privacy masks, 8 ROI areas, and 4 OSD overlays. The image can be flipped in different directions to match any installation.

With an IP67 rating, it is water and dustproof, making it suitable for various weather conditions. The 3-axis adjustment allows easy positioning: pan (0°~360°), tilt (0°~80°), and rotate (0°~360°). It supports PoE or 12V DC power, with a maximum power use of 7W. Event detection includes motion, cross-line, intrusion (human body-based), tampering, and audio alerts. For networking, it works with ONVIF (Profiles S/G/T) and supports up to 32 users, with strong encryption and password protection. The camera weighs 0.30kg, measures Φ118 x 96mm, and works in temperatures from -30°C to 60°C. Comes with a 1-year brand warranty and supports EZStation, EZView, and EZLive clients.

Buy Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera in Bangladesh

You can buy your desired Uniview IPC3613LB-AF28(40)K-G 3MP HD IR Fixed Eyeball Network Camera at Global Brand PLC. We are the authorized distributor of Uniview in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
