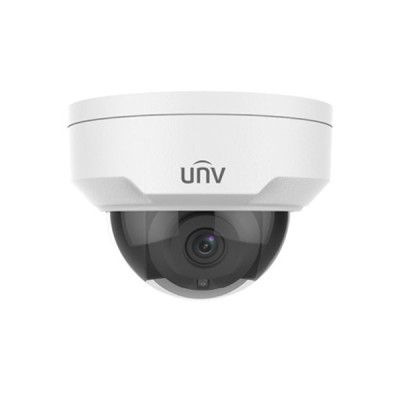

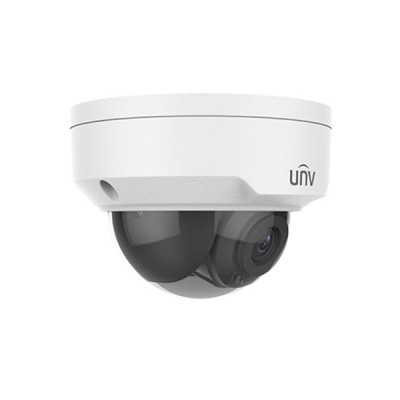

Uniview IPC322LB-SF28K-A 2MP HD IR Fixed Dome Network IP Camera

Key Features of IPC322LB-SF28K-A:

High quality image with 2MP, 1/2.9"CMOS sensor
2MP (19201080)@30/25fps; 720P (1280720)@30/25fps
Ultra H.265,H.265, H.264
Smart IR, up to 30m (98ft) IR distance
Day/night functionality
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	High quality image with 2MP, 1/2.9"CMOS sensor
attr -Key Feature 2 >	2MP (19201080)@30/25fps; 720P (1280720)@30/25fps
attr -Key Feature 3 >	Ultra H.265,H.265, H.264
attr -Key Feature 4 >	Smart IR, up to 30m (98ft) IR distance
attr -Key Feature 5 >	Day/night functionality
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	IPC322LB-SF28K-A
Type	2MP Dome Network IP Camera
Camera
Sensor	1/2.9", 2.0 megapixel, progressive scan, CMOS
Min. Illumination	Colour:0.01 lux (F2.0, AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	DWDR
S/N	>55dB
Adjustment Angle	Pan: 0° ~355° \| Tilt: 0° ~ 75°
Lens
Lens type	2.8mm@F2.0
Iris	Fixed
Field of View (H)	101.1°
Field of View (V)	55.0°
Field of View (D)	111.0°
DORI
DORI Distance	Lens (mm): 2.8 Detect (m): 45.0(147.6ft) Observe (m): 18.0(59.1ft) Recognize (m): 9.0(29.5ft) Identify (m): 4.5(14.8ft)
Illuminator
IR Range	Up to 30m (98 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Storage
Edge Storage	Micro SD, up to 128 GB
Video
Frame rate	Main Stream: 2MP (19201080),Max 30fps; 720P (1280720),Max 30fps Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps
H.264 Code Profile	Baseline profile, Main Profile, High profile
Video Compression	Ultra H.265,H.265, H.264
Video Bit Rate	128 Kbps~6144Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas per scene
ROI	Up to 8 areas
Video stream	Dual streams
Digital Noise Reduction	2D/3D DNR
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion Detection
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Interface
Network	1 * RJ45 10M/100M Base-TX Ethernet
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, Qos, ,SSL/TLS
Compatible Integration	ONVIF (Profile S,Profile T,Profile G),API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZView
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Power
Power Interface	Ø 5.5mm coaxial power plug
Power	DC12V(±25%) , PoE(IEEE 802.3af) Power consumption: Max 5W
Operating Environment
Surge Protection	4KV
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Physical Specification
Dimensions	Φ109 x 81mm (Ø4.3” x 3.2”)
Weight	0.358kg(0.79lb)
Body Material	Metal + Plastic
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Additional
Reset Button	N/A
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview IPC322LB-SF28K-A 2MP HD IR Fixed Dome Network IP Camera

Uniview IPC322LB-SF28K-A 2MP HD IR Fixed Dome Network IP Camera offers advanced surveillance capabilities with a focus on practicality and reliability. Featuring a high-quality 2MP image resolution and a 1/2.9" CMOS sensor, this camera ensures clear and detailed visuals. It supports multiple resolutions, including 2MP (1920*1080)@30/25fps and 720P (1280*720)@30/25fps, providing flexibility for various monitoring needs. Utilizing Ultra H.265, H.265, and H.264 compression, this camera optimizes storage space without compromising image quality. The Smart IR technology allows for effective infrared illumination, providing a clear view up to 30m (98ft) in low-light conditions. With day/night functionality and 2D/3D DNR (Digital Noise Reduction), the camera delivers reliable performance for 24/7 surveillance.

The IPC322LB-SF28K-A is equipped with practical features, including support for a Micro SD card, DC12V or PoE(IEEE 802.3af) power supply, IP67 protection against harsh weather conditions, and IK10 protection for vandal resistance. Backed by a 1-year brand warranty, this camera reflects a commitment to durability and performance, ensuring peace of mind for your security infrastructure. Choose the Uniview IPC322LB-SF28K-A for a straightforward and dependable solution, delivering essential features for effective surveillance without compromising on quality. Upgrade your security system with this IP camera for a practical and reliable monitoring experience.
