UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch
UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch
UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch
UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch

UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch

Key Features of CM664 (15707):
4K@60Hz HDMI Output – Clear video with support for 1080P@240Hz and 1440P@120Hz.
USB 3.0 Ports – 3 USB-A and 1 USB-C with 5Gbps speed for fast data and device use.
Easy Switching – Button and desktop controller with memory function.
Media Support – Works with HDR, 3D, Dolby, and DTS audio formats.
Warranty: 01-Year Brand Warranty
UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch
Based on 0 reviews. - Write a review
৳6,600.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 4K@60Hz HDMI Output – Clear video with support for 1080P@240Hz and 1440P@120Hz.
attr -Key Feature 2 > USB 3.0 Ports – 3 USB-A and 1 USB-C with 5Gbps speed for fast data and device use.
attr -Key Feature 3 > Easy Switching – Button and desktop controller with memory function.
attr -Key Feature 4 > Media Support – Works with HDR, 3D, Dolby, and DTS audio formats.
attr -Key Feature 5 > Warranty: 01-Year Brand Warranty
Additional Info
Additional Info Brand: Ugreen
Model: CM664 (15707)
Product Type: UGREEN 4K HDMI KVM Switch

Input Ports & Specifications
2x HDMI Female Ports:
- HDMI 2.0, HDCP 2.2/1.4
- Max resolution: 4K@60Hz
Backward compatible with:
- 4K@30Hz
- 2560×1440@120Hz
- 1920×1080@240Hz

2x USB-B Ports:
- USB 3.0 standard
- Transfer speed: up to 5Gbps
- Backward compatible with USB 2.0 / 1.1

1x USB-C Port (Power Input):
- USB 5V input
- Supports QC and PD chargers
- Supports both forward and reverse plug

Output Ports & Specifications
1x HDMI Female Port:
- Max resolution: 4K@60Hz
Backward compatible with:
- 4K@30Hz
- 2560×1440@120Hz
- 1920×1080@240Hz

3x USB-A Ports:
- USB 3.0 standard
- Transfer speed: up to 5Gbps
- Backward compatible with USB 2.0 / 1.1

1x USB-C Port:
- USB 3.0 standard
- Transfer speed: up to 5Gbps

1x Mini USB Port
- For connecting to KVM desktop controller

Performance & Power
Power Supply Requirement:
- At least one USB-B input or external 5V USB-C required

Power Consumption:
- No-load: ≈ 49 mA
- Working: ≈ 175 mA

TMDS Clock Frequency:
- 600 MHz

Video Bandwidth:
- Single-channel: 6 Gbps
- Total: 18 Gbps

Image Delay:
Almost no delay

Supported Formats
Video Formats:
- RGB / YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Color depth: 8 / 10 / 12 bits per channel

Audio Formats:
- LPCM
- DTS AUDIO
- Dolby TrueHD
- Dolby Digital
- Dolby Digital Plus
- Dolby Atmos

Supports:
- 3D, HDR, and CEC

Switching & Control
Switching Method:
- Manual key switch or desktop controller

Hotkey Function:
- Not supported

USB Current Limiting:
Total: 3A (1.5A per 2 ports)
Protection: Overcurrent and short-circuit supported

USB Read/Write Speeds (Tested):
USB-A1: Read 81 MB/s | Write 294 MB/s
USB-A2: Read 373 MB/s | Write 332 MB/s
USB-A3: Read 373 MB/s | Write 331 MB/s
USB-C: Read 386 MB/s | Write 327 MB/s

Environment & Compatibility:
Operating Temperature: 0°C to 45°C
Storage Temperature: -20°C to 60°C
Measured Device Temp (Full Load): ~34°C at 25.3°C ambient

OS Compatibility:
Windows 11 / 10 / 8.1 / 8 / 7
macOS
Linux (Ubuntu)

Warranty: 01-Year Brand Warranty
Description:

UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch Price in Bangladesh

UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch

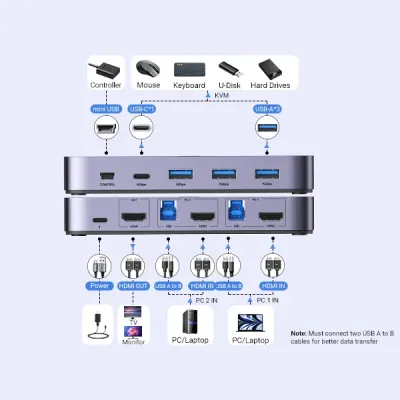

UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch is designed to enable you to share one HDMI monitor and USB peripherals between two computers. It can support high-definition video resolution of up to 4K@60Hz and high-speed USB 3.0 data transmission rates of up to 5Gbps. It's ideally designed for workstations, gaming stations, or any location where two devices need to be operated from a single keyboard, mouse, and display.

It contains two HDMI input ports (HDMI 2.0, HDCP 2.2/1.4) and an HDMI output port, offering backward compatibility with resolutions like 4K@30Hz, 1440p@120Hz, and 1080p@240Hz. USB ports include 2x USB-B for computer input, 3x USB-A, and 1x USB-C for peripherals like flash drives, keyboards, mice, and printers. A mini USB port is utilized to link the KVM desktop controller. The device also contains a USB-C power input supported by QC and PD chargers. With RGB's wide support for video formats, YCbCr 4:4:4, 4:2:2, and 4:2:0 (8/10/12-bit), this switch can support a variety of signal types. It also supports various audio formats such as LPCM, DTS, Dolby TrueHD, and Dolby Atmos. 3D, HDR, and CEC are supported as well.

The drive has little image delay and provides a physical source switch button. It provides short-circuit and overcurrent protection with a total USB current limit of 3A. The read and write speed via USB is up to 386 MB/s and 332 MB/s, depending on the port. Windows (11/10/8.1/8/7), macOS, and Linux (Ubuntu) compatible, this switch offers reliable performance in a compact installation. Operating temperatures range from 0°C to 45°C; storage up to 60°C is safe.

Buy UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch in Bangladesh

You can buy your desired UGREEN CM664 (15707) 2 In 1 Out 4K HDMI KVM Switch at Global Brand PLC. We are the authorized distributor of UGREEN in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
