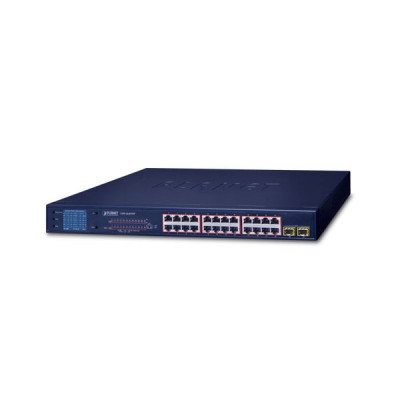

Planet GSW-2620VHP 24-Port Gigabit 300W PoE Unmanaged Switch

Key Features of GSW-2620VHP:

802.3af/802.3at PoE Injector Port: 24
10/100/1000BASE-T MDI/MDIX Ports: 24
Dimensions (W x D x H): 440 x 233 x 44 mm (1U height)
Enclosure: Metal
CALL FOR DETAILS: 01958510839

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	802.3af/802.3at PoE Injector Port: 24
attr -Key Feature 2 >	10/100/1000BASE-T MDI/MDIX Ports: 24
attr -Key Feature 3 >	Dimensions (W x D x H): 440 x 233 x 44 mm (1U height)
attr -Key Feature 4 >	Enclosure: Metal
attr -Key Feature 5 >	CALL FOR DETAILS: 01958510839
Planet Switch
802.3af/802.3at PoE Injector Port	24
10/100/1000BASE-T MDI/MDIX Ports	24
1000BASE-X SFP/mini-GBIC Slots	2
Switch Architecture	Store-and-Forward
Switch Fabric	52Gbps/non-blocking
MAC Address Table	8K entries
Switch Throughput	38.7Mpps@64 bytes
Maximum Frame Size	9216 bytes
LCD Monitor (W x D)	40.6 x 30.5 mm, 2-inch
Buttons	Menu, Enter, Back, Up and Down
Enclosure	Metal
ESD Protection	Contact discharge of ±6KV DC Air discharge of ±8KV DC
Flow Control	IEEE 802.3x pause frame for full -duplex; back pressure for half -duplex
Surge Protection	±6KV
LED	System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Red) 1000Mbps LNK/ACT (Green) PoE-in-Use (Amber) 1000BASE-X SFP Interfaces: LNK/ACT (Green)
Dimensions (W x D x H)	440 x 233 x 44 mm (1U height)
Weight	3.5kg
Power Consumption	Max. 330watts/1132 BTU
Fan	3x Thermal Fan
Power Requirements	100~240V AC, 50/60Hz, 5A max.
