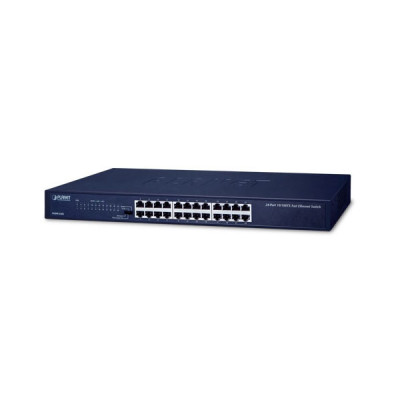

Planet FNSW-2401 24-Port Ethernet Switch

Key Features of FNSW-2401:

10/100BASE-TX MDI/MDIX Ports: 24
Throughput (packet per second): 3.57Mpps
Dimensions (W x D x H): 440 x 140 x 44mm, 1U height
Switch Fabric: 4.8Gbps
CALL FOR DETAILS: 01958510839

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	10/100BASE-TX MDI/MDIX Ports: 24
attr -Key Feature 2 >	Throughput (packet per second): 3.57Mpps
attr -Key Feature 3 >	Dimensions (W x D x H): 440 x 140 x 44mm, 1U height
attr -Key Feature 4 >	Switch Fabric: 4.8Gbps
attr -Key Feature 5 >	CALL FOR DETAILS: 01958510839
Planet Switch
10/100BASE-TX MDI/MDIX Ports	24
Switch Fabric	4.8Gbps
Switch Throughput	3.57Mpps (packet per second)
Address Table	8K entries
Flow Control	Back pressure for half duplex IEEE 802.3x Pause Frame for full duplex
Switch Processing Scheme	Store-and-Forward
Maximum Packet Size	1522bytes
DIP Switch	Operation mode selection - Standard - flow control off - VLAN - Extend
Dimensions (W x D x H)	440 x 140 x 44mm, 1U height
Weight	1.4kg
Power Consumption	1.4 watts/4.7BTU
Power Requirements	100~240V AC, 0.2A, 50-60Hz
