NZXT H9 Flow (2025) Dual-Chamber Mid-Tower ATX Airflow Casing - Black
Key Features of CM-H92FB-01:Casing Type: Mid-Tower |
Motherboard Support: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
Materials: SGCC steel, Tinted tempered glass (black) |
Radiator Support: Up to 420 mm |
Pre-Installed Fans: 3x F140Q (CV) fans (front-right), 1x F120Q (CV) fan (rear) |
Key Features | |
attr - Key Feature 1 > | Casing Type: Mid-Tower |
attr -Key Feature 2 > | Motherboard Support: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX |
attr -Key Feature 3 > | Materials: SGCC steel, Tinted tempered glass (black) |
attr -Key Feature 4 > | Radiator Support: Up to 420 mm |
attr -Key Feature 5 > | Pre-Installed Fans: 3x F140Q (CV) fans (front-right), 1x F120Q (CV) fan (rear) |
NZXT Casing | |
General | Model: NZXT H9 Flow (2025) Model Number: CM-H92FB-01 Type: Mid-Tower Color: Black |
Key Specs | Enclosure Type: Mid-tower Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX) Materials: SGCC steel, Tinted tempered glass (black) |
Compatibility & Clearance | CPU Cooler Height: 165 mm GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) PSU Length: 200 mm Top Radiator & Fan Thickness: Up to 80 mm (360 mm) Up to 62 mm (420 mm) |
Expansion Slots | Standard: 7 Vertical: 0 |
Drive Bays | 2.5": 4+2 3.5": 2 |
Fan Support | Front-Right: 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included) Top: 3 x 120 mm / 3 x 140 mm Bottom: 3 x 120 mm / 3 x 140 mm Rear: 1 x 120 mm (1 x F120Q (CV) included) |
Fan Specs | Fan Specs - F140Q (CV) Model: F140Q (CV) Speed: 1,350 ± 150 RPM Airflow: 100.25 CFM Static Pressure: 1.4 mmH2O Noise: 22.9 dBA Fan Connector: 3-pin Fan Specs - F120Q (CV) Model: F120Q (CV) Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static Pressure: 1.05 mmH2O Noise: 24.1 dBA Fan Connector: 3-pin |
Fans Included | F140Q (CV) fans (front-right) x 3 F120Q (CV) fan (rear) x 1 |
Radiator Support | Front-Right: Up to 420 mm Top: Up to 420 mm Bottom: Up to 360 mm Rear: Up to 120 mm |
Front I/O Ports | USB 3.2 Type-A: 2 USB 3.2 Gen2x2 Type-C: 1 Headset Jack: 1 |
Inside the Box | H9 Flow x 1 Pre-installed F140Q (CV) x 3 Pre-installed F120Q (CV) x 1 Installation accessories x 1 User guide x 1 |
Weight & Dimensions | Height: 506 mm (19.9 in) Width: 315 mm (12.4 in) Depth: 481 mm (18.9 in) Volume: 76.7 L Weight: 12.46 kg (27.47 lb) |
NZXT H9 Flow (2025) Dual-Chamber Mid-Tower ATX Airflow Casing - Black

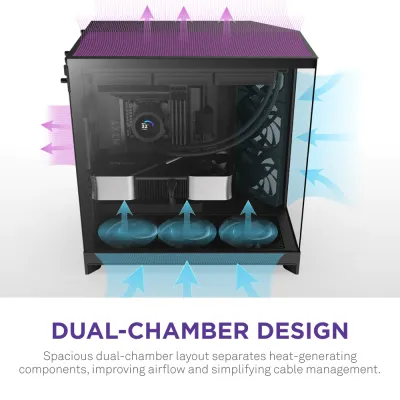

NZXT H9 Flow (2025) Dual-Chamber Mid-Tower ATX Airflow Casing - Black is designed for high-performance PC builds, offering a balance of cooling, space, and clean design. Its dual-chamber layout separates the main hardware from the PSU and storage drives, improving airflow and making cable routing easier. The case is made from SGCC steel with tinted tempered glass panels, giving you a clear panoramic view of your build while keeping it sturdy and functional.

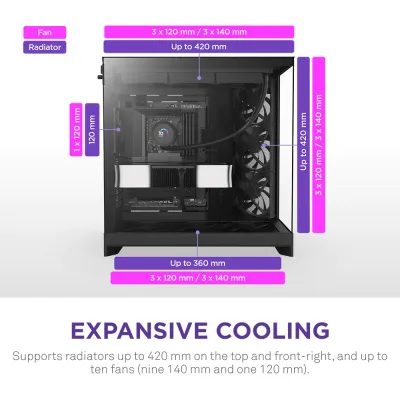

This mid-tower casing supports a wide range of motherboards, including E-ATX (up to 277 mm), ATX, Micro-ATX, and Mini-ITX. It is also compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cleaner cable-free look. The cooling system is optimized with perforated steel panels, angled fans, and space for up to ten fans in total. It comes pre-installed with three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear, providing strong airflow right out of the box. The case can fit large radiators up to 420 mm on the top and front-right, and up to 360 mm at the bottom, giving plenty of options for liquid cooling.
The H9 Flow can handle high-end components with clearance for CPU coolers up to 165 mm tall and GPUs up to 459 mm in length with standard fan setup. Storage options include up to six 2.5-inch drives and two 3.5-inch drives, while PSU support extends up to 200 mm. The top panel can hold radiators up to 80 mm thick for 360 mm models or 62 mm for 420 mm models. Expansion slots include seven standard positions for GPUs and other PCIe devices.
Overview of NZXT H9 Flow (2025) Dual-Chamber Mid-Tower ATX Airflow Casing:
- Dual-Chamber Design: Separates main components from PSU and drives for improved thermal performance.
- Optimized Airflow: Perforated steel panels and angled front-right fans for efficient cooling.

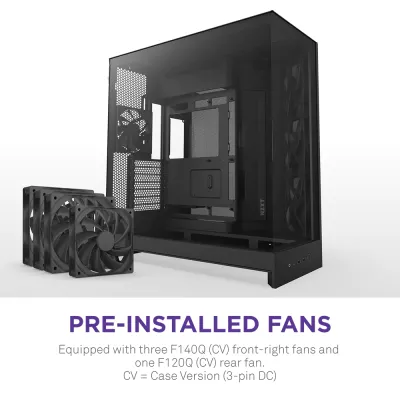

- Pre-Installed Fans: Includes three F140Q (CV) fans in front-right and one F120Q (CV) fan in the rear.
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom.
- Panoramic View: Showcases build details with seamless, wraparound tempered glass paneling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on top and front-right.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points.

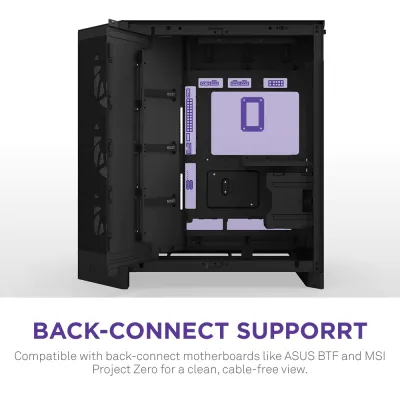

- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero.
Front I/O ports offer quick access with two USB 3.2 Type-A ports, one USB 3.2 Gen2x2 Type-C port, and a headset jack. Measuring 506 mm in height, 315 mm in width, and 481 mm in depth, and weighing 12.46 kg, the NZXT H9 Flow provides a spacious, well-ventilated, and stylish foundation for advanced gaming and workstation builds while keeping airflow and component compatibility as top priorities.
