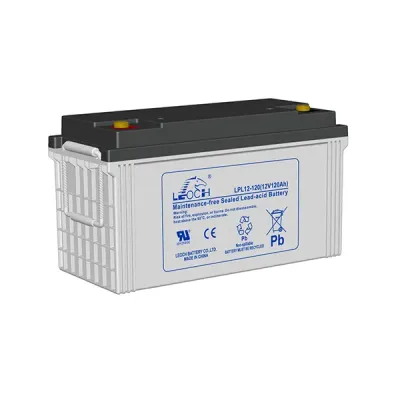

Leoch LPL12-120 12V 120Ah UPS Battery

Key Features of LPL12-120:

Brand: Leoch
Rated Voltage: 12V
Nominal Capacity: 120Ah
Short-circuit current: 2400A
Internal Resistance: Approx 4.5 mΩ (Fully charged)
CALL FOR DETAILS: 01958510719, 01969633055

Based on 0 reviews. - Write a review

৳48,000.00

Add to Cart

Specification:

Key Features
attr - Key Feature 1 >	Brand: Leoch
attr -Key Feature 2 >	Rated Voltage: 12V
attr -Key Feature 3 >	Nominal Capacity: 120Ah
attr -Key Feature 4 >	Short-circuit current: 2400A
attr -Key Feature 5 >	Internal Resistance: Approx 4.5 mΩ (Fully charged)
Call Info >	CALL FOR DETAILS: 01958510719, 01969633055
Leoch Battery
Rated Voltage	12V
Nominal Capacity	Nominal Capacity (25℃): C ,1.80V/cell: 120Ah
Dimension	Length: 408mm (16.1inches) Width: 177mm (6.97inches) Container Height: 225mm (8.86inches) Total Height: 225mm (8.86inches)
Approx Weight	36.3kg (80.0lbs)
Terminal	T11(M8)
Container Material	ABS (UL94 HB or V-0 optional)
Short-circuit current	2400A
Internal Resistance	Internal Resistance (25℃): Approx 4.5 mΩ (Fully charged)
Operating Temp. Range	Discharge: -15~50℃ (5~122°F) Charge: -20~40℃ (-4~104°F) Storage: -15~40℃ (5~104°F)
Nominal Operating Temp. Range	25±3℃ (77±5°F)
Max.Charging Current	Max.Charging Current (25℃): 0.3C
Charge voltage	Charge voltage (25℃): Standby Use: 2.25-2.30V/cell Cycle Use: 2.35-2.40V/cell
Temp. Coeffcient	-3mV/cell/℃ -5mV/cell/℃
Effect of temp. to Capacity	40℃ (104°F): 103% 25℃ (77°F): 100% 0℃ (32°F): 86%
Self Discharge	≤3% per month at 25°C (77°F). LPL series batteries may be stored up to 6 months at 25°C (77°F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
