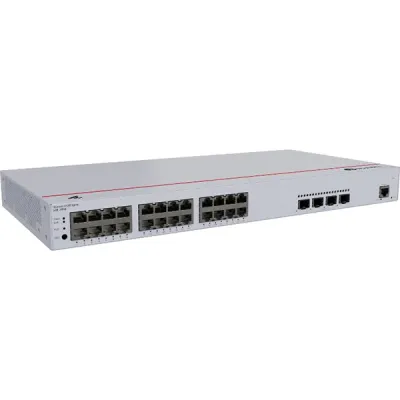

image of Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch with Spec and Price in BDT

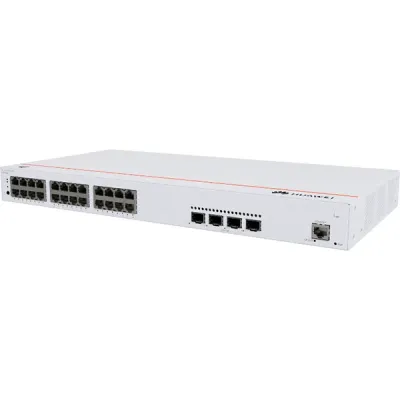

image of Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch with Spec and Price in BDT

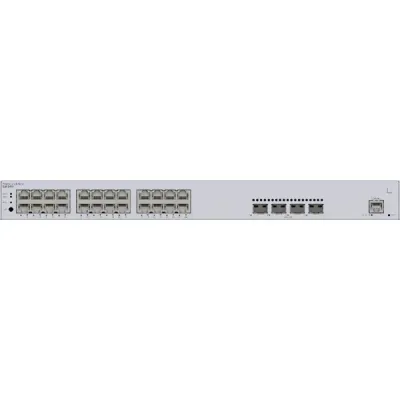

image of Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch with Spec and Price in BDT
Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch
Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch
Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch

Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch

Key Features of S220-24P4X:
Model: S220-24P4X
Details: (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
PoE Budget: 400W PoE+
Type: Layer 3 Base Managed Switch
Warranty: 3 Year Brand Warranty
Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Model: S220-24P4X
attr -Key Feature 2 > Details: (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
attr -Key Feature 3 > PoE Budget: 400W PoE+
attr -Key Feature 4 > Type: Layer 3 Base Managed Switch
attr -Key Feature 5 > Warranty: 3 Year Brand Warranty
Huawei Switch.
Switching Capacity 128 Gbit/s
Packet Forwarding Rate 95 Mpps
GE RJ45 24 (PoE+) (1G/100M/10M)
10G SFP+ 4 (10G/1G)
Maximum PoE Power Consumption [W] 400
PoE Supported
Certification EMC certification, Safety certification, Manufacturing certification
Chassis Material Metal
Static Power Consumption [W] 27.07
Dimensions Without Packaging (H X W X D) [Mm(In.)] Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel):
43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions With Packaging (H X W X D) [Mm(In.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Installation Type Rack mounting, Desk mounting, Wall mounting
Weight Without Packaging [Kg(Lb)] 2.92 kg (6.44 lb)
Weight With Packaging [Kg(Lb)] 3.79 kg (8.36 lb)
Typical Power Consumption [W] 37.12
Maximum Power Consumption [W] - Without PoE: 44.35 W
- Full PoE load: 485.91 W (PoE: 400 W)
Number Of Fans Modules 2
Long-Term Operating Temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Long-Term Operating Relative Humidity [Rh] 5% RH to 95% RH, non-condensing
Power Supply Mode AC built-in
Input Voltage Range [V] - AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
- High-voltage DC input: 190 V DC to 290 V DC
Power Supply Surge Protection [Kv] Differential mode: ±6 kV
Common mode: ±6 kV
Types Of Fans Built-in
Heat Dissipation Mode Air cooling for heat dissipation, intelligent fan speed adjustment
Warranty 03-Yea Brand Warranty
Description:

Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch

Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch is specifically meant for business networks that need quick access, reliable uplinks, and power over Ethernet connectivity. It has a switching capacity of 128 Gbit/s and a packet forwarding rate of 95 Mpps to deliver silky-smooth handling of demanding applications. The switch is designed with 24 GE RJ45 PoE+ ports and 4 high-speed 10GE SFP+ uplink ports, which support both copper and fiber connections. It supports up to 400 W of PoE power and can directly connect IP phones, access points, and cameras without the use of extra power supplies.

Power efficiency-wise, static power is 27.07 W, typical is 37.12 W, and maximum is 44.35 W without PoE or a maximum of 485.91 W with a full load of PoE. The in-built AC power supply supports input ranges for both AC (90–290 V, 45–65 Hz) and high-voltage DC (190–290 V). Protection against surges is ±6 kV in differential and common modes for stable and secure operation. The Huawei eKit S220-24P4X is housed in a metal casing and is rack, desktop, and wall mountable for flexible deployment. It measures 43.6 mm × 442.0 mm × 220.0 mm (normal) and 227.0 mm depth with rear equipment. It weighs 2.92 kg in unpacked condition and 3.79 kg in packed condition.

It utilizes two onboard adaptive speed control fans for efficient air cooling. Air flow is maximized for reliable heat dissipation. The switch is designed to work in temperatures between –5°C and +50°C and 5% to 95% non-condensing humidity. EMC, safety, and manufacturing certified, the Huawei eKit S220-24P4X offers safe, high-performance switching with intelligent PoE capability for enterprise and campus networks.

Buy Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch in Bangladesh

You can buy your desired Huawei eKit S220-24P4X 24-Port 10/100/1000BASE-T & 4-Port 10GE SFP+ Managed PoE+ Switch at Global Brand PLC. We are the authorized distributor of Huawei eKit in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
