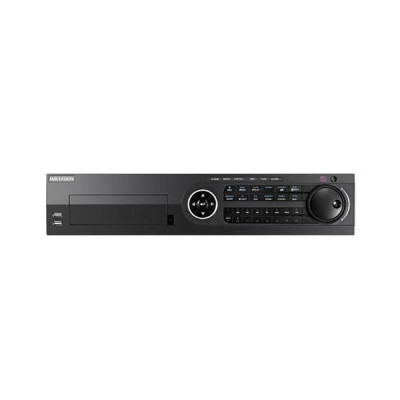

Hikvision DS-8124HQHI-K8 Turbo HD DVR

Key Features of DS-8124HQHI-K8:

 Support H.265 Pro+/H.265 Pro/H.265 video compression.
Support HDTVI/AHD/CVI/CVBS/IP video input.
Max 40/48 IP cameras input (up to 6 MP)
Max 800 m for 1080p and 1200 m for 720p HDTVI signal
Up to 10 TB capacity per HDD
CALL FOR DETAILS: +880 1973-439218

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	 Support H.265 Pro+/H.265 Pro/H.265 video compression.
attr -Key Feature 2 >	Support HDTVI/AHD/CVI/CVBS/IP video input.
attr -Key Feature 3 >	Max 40/48 IP cameras input (up to 6 MP)
attr -Key Feature 4 >	Max 800 m for 1080p and 1200 m for 720p HDTVI signal
attr -Key Feature 5 >	Up to 10 TB capacity per HDD
Call Info >	CALL FOR DETAILS: +880 1973-439218
DVR, NVR & XVR
Recording	—
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate	Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF @25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA /CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps to 6 Mbps
Dual stream	Support
stream type	video, video, and audio
Audio bit rate	64 Kbps
Video and audio	—
Ip video Input	16-ch (up to 40-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input	24-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input	4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input	4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input	1080p25, 1080p30, 720p25, 720p30
CVBS input	PAL/NTSC
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1/ VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2 output	1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input	16-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output	2-ch, RCA (Linear, 1 KΩ)
Two way audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
synchronous playback	16-ch
Network	—
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network interface	2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface	—
SATA	8 SATA interfaces
eSATA	Support
Capacity	Up to 10 TB capacity for each disk
serial interfaces	RS-232, RS-485 (full-duplex), Keyboard
alarm in / out	16/8
usb interface	Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
power supply	100 to 240 VAC
consumption	≤ 45 W
