Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router
Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router

Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router

Key Features of M1500 (1-Pack) AX1500:
1201 Mbps + 300 Mbps Wi-Fi
3× Gigabit Ethernet Ports
Connect 60 Devices
Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management
Cudy Mesh, VPN Client, Cudy App, Cloud Control
Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 1201 Mbps + 300 Mbps Wi-Fi
attr -Key Feature 2 > 3× Gigabit Ethernet Ports
attr -Key Feature 3 > Connect 60 Devices
attr -Key Feature 4 > Parental Controls: URL Blacklist, Time Schedule, Profiles, Client Management
attr -Key Feature 5 > Cudy Mesh, VPN Client, Cudy App, Cloud Control
Hardware Specifications
CPU CPU Details: 1 GHz Single-Core CPU
Memory/Storage Flash/ROM:
16 MB (128 Mbit) NOR

DDR/RAM:
128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed: 1201 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
5 GHz Antenna Gain Max: 5.56dBi
2.4 GHz Antenna Gain Max: 4.41dBi

FEM or PA/LNA:
- 5 GHz: 2× Internal
- 2.4 GHz: 2× Internal

Beamforming: True
Range Performance: Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance:
Two wooden walls with a thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Indoor Coverage Reference:
2 Pack: 170 m² (1800 sq ft)
3 Pack: 230 m² (2500 sq ft)
Interfaces Gigabit RJ45 Ports: 3
Ethernet Notes: 1× WAN port, the rest are LAN ports

Uplink Ethernet Ports:
1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches

LED: System

Physical Buttons:
- WPS Button
- Reset Button

Power Input: DC Jack
Power Power Methods: DC
DC Input: 12V 1A

Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC

Max Power Consumption (W): 10W
Reliability Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
Mechanical Installation: Desktop

Dimension:
Φ110×154.5 mm
Φ4.33×6.08 inches
Software Specifications
Wireless Wi-Fi Standards: Wi-Fi 6
Max Wi-Fi Modulation: 1024-QAM
Wi-Fi Efficiency: Beamforming
Max Capacity: 128
Recommended Client Upper Limit: 60
Max Wi-Fi Channel Width: 80 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True
General Operation Modes:
- Wi-Fi Router
- Access Point
- Range Extender
- WISP
- Client

Mesh: Cudy Mesh

Mesh Backhaul:
- Wireless Backhaul
- Wired Backhaul

Multi-Band Backhaul: True

WAN Mode:
- DHCP
- Static IP
- PPPOE
- PPTP
- L2TP

Internet Failover Sequence:
- WAN
- WISP
Network QoS: Per-User Rate Limiting

DHCP:
- Address Reservation
- DHCP Client List
- Server

IP Versions: IPv4/IPv6

IPv6 Protocols:
- Relay
- Dynamic (SLAAC/DHCPv6)
- Static (Fixed IP)
- Passthrough
- 464XLAT
- MAP-E
- DS-Lite

IPTV/VLAN:
- Bridge
- Tag VLAN
- VoIP VLAN
- IPTV VLAN

IGMP:
- IGMP Proxy
- IGMP Snooping

Forwarding:
- Port Forwarding
- UPnP
- DMZ

Firewall:
- SPI Firewall
- Block PING
Utilities VPN Client:
- PPTP
- L2TP
- Wireguard

DNS Options:
- Manual DNS
- Rebind Protection
- Override Clients' DNS

Wake on LAN: True
Online Detection: True
Management Parental Controls:
- Profile Settings
- Offline Time
- Online Time
- Pause the Internet
- Web Filter

All Devices Management:
- Wi-Fi Time Schedule
- MAC Filter
- IP/MAC Binding

Per-Device Management:
- Internet On/Off
- VPN On/Off
- Online Time Schedule
- Device Rename

Content Management:
- Domain Filter
- IP Filter
System LED Control: True
Local Control Method:
- Config Web Page
- App Control

Remote Control Method:
- Config Page via HTTPS
- App Control
- TR069/TR098/TR111/TR143/TR181

Firmware Upgrade:
- Local Update
- App (Over the Air)
- Online Update

Reliability:
- Timed Reboot
- Backup and Restore

Diagnostic Tools:
- Diagnosis
- Ping
- Traceroute
- NSLookup
- System Log

Languages:
- English
- Portuguese
- Russian
- Spanish
- Ukrainian
- French
- Simplified Chinese
Dashboard Panel:
- Internet Status
- Mesh Status
- Device Management
- WAN Status
- LAN Status
- WISP Status
- Wi-Fi Status
- VPN Status
- DHCP Server Status
- System Version

Charts:
- Mesh Topology
- Internet Speed
- WISP Speed
- Wi-Fi Speed
Additional

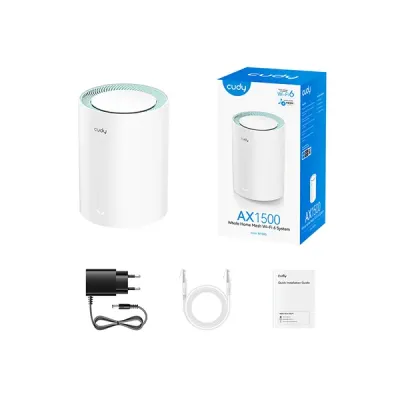

Included in the Box M1500
Power Adapter
Ethernet Cable
Installation Guide
Certification FCC, CE
Description:

Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router Price in Bangladesh

Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router

Cudy M1500 1-Pack AX1500 Dual Band Wi‑Fi 6 Mesh System Router is suitable for large homes and offers glitch-free 4K streaming and fast gaming. Simple setup: plug in one device and the rest will sync automatically. It includes dual-band Wi‑Fi with 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for fast connectivity of numerous users. Three Gigabit Ethernet ports are on each device for connecting wired devices like game consoles, smart TVs, or desktop PCs.

The network features dynamic roaming and beamforming to keep devices attached to the ideal node while you move around the house. Simultaneous multi-band backhaul refers to the devices connecting on multiple radio bands for optimized overall speed and stability. Expansion is easy—just add more Cudy Mesh devices. An integrated VPN client enables secure access to company or private networks. Network settings are easy to control via the Cudy App and cloud management, enabling you to control devices remotely, restrict parental controls, or run speed tests.

This mesh router is the ideal solution for individuals who need powerful, long-reaching Wi‑Fi 6, thanks to easy setup, fast roaming, secure VPN connectivity, and app management—all in a small, expandable platform.

Buy Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router in Bangladesh

You can buy your desired Cudy M1500 1-Pack AX1500 Dual Band Wi-Fi 6 Mesh System Router at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
