CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point

CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point

Key Features of AP1300 Wall:
4-Stream Dual-Band Wi-Fi 5 Access Point
Coverage: Covers up to 60 m² (650 ft²)
867 Mbps + 300 Mbps Wi-Fi
Watchdog, Schedule Reboot
Warranty: 01-Year Brand Warranty
CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point
৳0.00
Specification:
Key Features
attr - Key Feature 1 > 4-Stream Dual-Band Wi-Fi 5 Access Point
attr -Key Feature 2 > Coverage: Covers up to 60 m² (650 ft²)
attr -Key Feature 3 > 867 Mbps + 300 Mbps Wi-Fi
attr -Key Feature 4 > Watchdog, Schedule Reboot
attr -Key Feature 5 > Warranty: 01-Year Brand Warranty
Hardware Specifications
CPU CPU Details: 880 MHz Dual-Core CPU
Memory/Storage Flash/ROM:
16 MB (128 Mbit) NOR

DDR/RAM:
128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed: 867 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
5 GHz Antenna Gain Max: 5.6 dBi
2.4 GHz Antenna Gain Max: 5.0 dBi

FEM or PA/LNA:
- 5 GHz: 2× Internal
- 2.4 GHz: 2× Internal

Beamforming: True

Range Performance: Max: 80 m (262 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces Gigabit RJ45 Ports: 5
Ethernet Notes: Accepts PoE powering
LED: System

Physical Buttons:
- Reset Button
- LED On/Off Button (Configurable to control LED and Wi-Fi)

Power Input: PoE via Ethernet Port
Power Power Methods:
- Passive PoE
- 802.3at/af PoE

Passive PoE: 48V
Max Power Consumption (W):
- Max (PoE): 12 W
- Max (DC): NA

Idle Power Consumption (W): 4 W
Reliability Advanced: Hardware Watchdog
EMS: ESD: Contact: 4kV; Air: 8kV

Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
Mechanical Installation: Wall-mount

Dimension:
143×86×27.6 mm
5.63×3.39×1.09 inches

Product Weight: 261.2 g (9.21 oz.)
Software Specifications
Wireless Wi-Fi Standards: Wi-Fi 5
Max Wi-Fi Modulation: 256-QAM
Wi-Fi Efficiency: MU-MIMO
Wi-Fi Efficiency Note: MU-MIMO available on 5 GHz
Max Capacity: 128
Recommended Client Upper Limit: 40
Max Wi-Fi Channel Width: 80 MHz
Wi-Fi Security: WPA/WPA2/WPA3 Multi-SSID (Max Number): 8 SSIDs (Up to 4 SSIDs on each band)
General Operation Modes: Access Point
Mesh: Cudy Mesh

Mesh Backhaul:
- Wireless Backhaul
- Wired Backhaul

Multi-Band Backhaul: True
Network DHCP: Server
IP Versions: IPv4
IGMP: IGMP Snooping
Utilities Captive Portal: True
Captive Portal Providers: HotspotSystem, Iron Wi-Fi, ObiFi, Vulacoin, WorldSpot.net, WiFiMAX, Manual
Wake on LAN: True
Management All Devices Management: Wi-Fi Time Schedule
System LED Control: True

Local Control Method:
- Config Web Page
- App Control
Remote Control Method:
- Config Page via HTTPS
- App Control

Firmware Upgrade:
- Local Update
- App (Over the Air)
- Online Update

Reliability:
- Timed Reboot
- Backup and Restore

Diagnostic Tools
- Diagnosis
- Ping
- Traceroute
- NSLookup
- System Log

Languages:
- English
- Bengali
- Catalan
- Czech
- German
- Greek
- Spanish
- French
- Hebrew
- Croatian
- Hungarian
- Italian
- Japanese
- Khmer
- Korean
- Dutch
- Norwegian
- Polish
- Portuguese
- Romanian
- Russian
- Slovak
- Swedish
- Thai
- Turkish
- Ukrainian
- Vietnamese
- Simplified Chinese
- Traditional Chinese
Dashboard Panel:
- Internet Status
- Mesh Status
- Device Management
- LAN Status
- Wi-Fi Status
- DHCP Server Status
- System Version
- Connected Devices

Charts:
- Mesh Topology
- Wi-Fi Speed
Additional

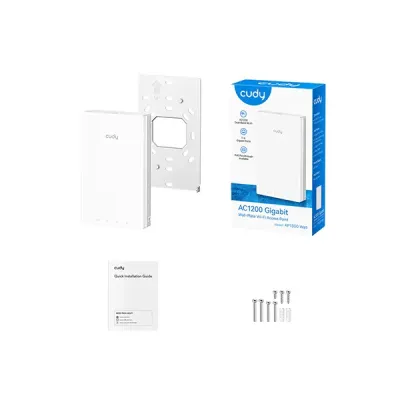

Included in the Box AP1300 Wall Installation Guide Mounting Kit
Certification FCC, CE
Warranty
Warranty Details 01-Year Brand Warranty
Description:

CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point Price in Bangladesh

CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point

CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point is a compact Wi-Fi solution designed for hotels, dormitories, apartments, and offices. With a sleek, low-profile design, it fits easily into modern spaces while delivering strong and secure Wi-Fi to each room or unit. This access point supports dual-band Wi-Fi 5 with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, making it suitable for 4K streaming, video calls, and web browsing. It covers up to 60 square meters (650 square feet) and supports up to 40 connected devices at once.

The AP1300 Wall includes a built-in 5-port Gigabit Ethernet switch with 1× PoE in, 1× PoE out, and 3× standard GbE ports. The PoE passthrough feature allows you to power devices like IP phones, VoIP systems, or IPTV directly through the access point, simplifying wiring and saving space. It supports both 802.3af/at and passive PoE standards, allowing flexible deployment using a PoE switch or injector. Built-in tools like a watchdog and scheduled reboot features help keep the network running without manual resets or restarts.

Ideal for hospitality environments, the AP1300 Wall allows for individual room-based Wi-Fi setups with no signal overlap between rooms. This ensures fast, private, and secure internet for each guest or user. It also suits office and education settings, where reliable and separate network access is required for each room or workspace. CUDY AP1300 Wall is simple to install and manage, offering stable performance and multiple connection options. Whether you're supporting guests, staff, or students, it helps build a flexible and clean network layout with strong coverage and smart features.

Buy CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point in Bangladesh

You can buy your desired CUDY AP1300 Wall AC1200 Dual Band Wall-Plate Access Point at Global Brand PLC. We are the authorized distributor of CUDY in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
