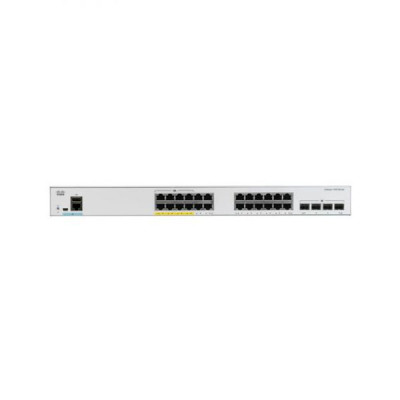

image of Cisco C1000-24T-4G-L Catalyst 1000 Series 24 Port Gigabit Switches with Spec and Price in BDT

Cisco C1000-24T-4G-L Catalyst 1000 Series 24 Port Gigabit Switches

Key Features of Cisco C1000-24T-4G-L :
Description: 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks
Gigabit Ethernet ports: 24
Uplink interfaces: 4 SFP
PoE+power budget: \
Dimensions (WxDxH in inches): 17.5 x 9.45 x 1.73


CALL FOR DETAILS: 01958510839
Cisco C1000-24T-4G-L Catalyst 1000 Series 24 Port Gigabit Switches
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Description: 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks
attr -Key Feature 2 > Gigabit Ethernet ports: 24
attr -Key Feature 3 > Uplink interfaces: 4 SFP
attr -Key Feature 4 > PoE+power budget: \
attr -Key Feature 5 > Dimensions (WxDxH in inches): 17.5 x 9.45 x 1.73
Call Info >


CALL FOR DETAILS: 01958510839
Cisco Switch new
Specification Description: 24x 10/100/1000 Ethernet ports, 4x 1G SFP uplinks
Gigabit Ethernet ports: 24
Uplink interfaces: 4 SFP
PoE+power budget: \
Fanless: Y
Dimensions (WxDxH in inches): 17.5 x 9.45 x 1.73
Console ports RJ-45 Ethernet: 1
USB mini-B: 1
USB-A port for storage and Bluetooth console: 1
Memory and processor CPU: ARM v7 800 MHz
DRAM: 512 MB
Flash memory: 256 MB
Performance Forwarding bandwidth: 28 Gbps
Switching bandwidth: 56 Gbps
Forwarding rate(64—byte L3 packets): 41.67 Mpps
Unicast MAC addresses: 16000
IPv4 unicast direct routes: 542
IPv4 unicast indirect routes: 256
IPv6 unicast direct routes: 414
IPv6 unicast indirect routes: 128
IPv4 static routes: 16
IPv6 static routes: 16
IPv4 multicast routes and IGMP groups: 1024
IPv6 multicast groups: 1024
IPv4/MAC security ACEs: 600
IPv6 security ACEs: 600
Maximum active VLANs: 256
VLAN IDs available: 4094
Maximum STP instances: 64
Maximum SPAN sessions: 4
MTU-L3 packet: 9198 bytes
Jumbo Ethernet frame: 10,240 bytes
Dying Gasp: Yes
MTBF in hours (data): 2,026,793
MTBF in hours (PoE): 698,220
MTBF in hours (Full PoE): 698,220
Environmental Operating temperature Seal level: -5 to 50 deg C*
Up to 5,000ft (1500 m): -5 to 45 deg C
Upto 10,000 (3000 m): -5 to 40 deg C
Operating altitude: 10,000 ft (3,000m)
Operating relative humidity: 5% to 90% at 40C
Storage temperature: -13 to 158F (-25 to 70C)
Storage altitude: 15,000 ft (4500m)
Storage relative humidit: 5% to 95% at 65C
Safety and compliance Safety:
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1
GB 4943.1-2011

EMC: Emissions:

47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A

EMC: Immunity: EN55024 (including EN 61000-4-5), EN300386, KN35

Environmental: Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU

Telco: Common Language Equipment Identifier (CLEI) code

U.S. government certifications: TBD
Connectors and interfaces Ethernet interfaces:
* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling

* 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

* 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

* 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs:
* Per-port status: link integrity, disabled, activity

* System status: system

Console cables:
* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45

* CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors

Power:
* Use the supplied AC power cord to connect the AC power connector to an AC power outlet

* Models have external power supply
Description:

Cisco C1000-24T-4G-L  Catalyst 1000 Series  24 Port Gigabit Switches

Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
