image of Boya BY-AM1 Dual-Channel Audio Mixer with Spec and Price in BDT

Boya BY-AM1 Dual-Channel Audio Mixer

Key Features of BY-AM1:

Multiple Built-in Inputs Enriching Your Audio
Wider Sampling Rates For Your Professional Need
No-latency Headphone Monitoring
Supply 48V phantom power via XLR input

Based on 0 reviews. - Write a review

৳10,599.00

Add to Cart

Buy Now

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Multiple Built-in Inputs Enriching Your Audio
attr -Key Feature 2 >	Wider Sampling Rates For Your Professional Need
attr -Key Feature 3 >	No-latency Headphone Monitoring
attr -Key Feature 4 >	Supply 48V phantom power via XLR input
Microphone
Dimension	16010541.5mm(6.34.11.6)
Weight	408.5g(1.44oz)
Microphone Inputs	Frequency Response: 20Hz-20kHz±0.1dB Maximum Input Level: 9dBu(at minimum gain)
Line Inputs	Frequency Response: 20Hz-20kHz±0.1dB Maximum Input Level: 15dBu(at minimum gain) Gain Range: 50dB Impedance: 47KΩ
Instrument inputs	Frequency Response: 20Hz-20kHz±0.1dB Maximum Input Level: 8dBu(at minimum gain)
Headphone outputs	Frequency Response: 75dB THD: ＜0.01% S/N : 6dBu Maximum Input Level: ＜10Ω Sampling Rates: 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz USB Connection: USB 2.0(USB-B connector) Power Requirements: Powered by computers Power Supply: 48V PhantomPower
Line/monitor outputs	Frequency Response: 80dBU THD: ＜0.01% S/N : 10dBu Maximum Input Level: 470Ω
Warranty	2-Year Brand Warranty

Description:

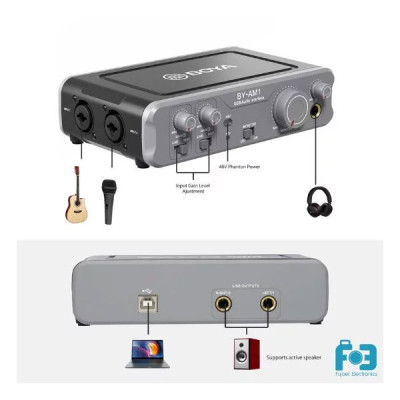

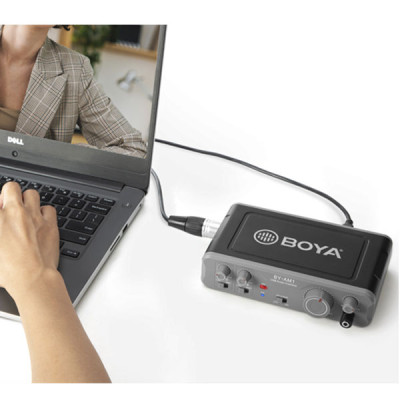

The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones (Such as BY-M1000/BY-BY-BM58), which allows you to easily mount and control input devices, and to transmit the output signal to your computer.

Multiple Built-in Inputs Enriching Your Audio

Thanks to built-in 6.35mm/XLR combo inputs, The BY-AM1 can easily accept signals directly from XLR microphones or electric instruments, like guitar and bass etc.

Wider Sampling Rates For Your Professional Need

The BY-AM1 can support 44.1k-192kHz sampling rates audio without any sound compromise when connecting to XLR microphone and instruments input devices.

No-latency Headphone Monitoring

With a 6.35mm headphone monitoring jack and supplied 6.35mm to 3.5mm audio adapter, The BY-AM1 allows you hear your input signal through the headphone without any distracting echo or latency.

Supply 48V phantom power via XLR input

The BY-AM1 can provide 48V phantom power for XLR passive microphone. Built-in 1/4" mounting screw on the base can be attached to tripod and other accessories.

Packing list

-6.6'(2m)USB-A to USB-B cable

-6.35mm to 3.5mm TRRS audio adapter
